H 15 B-2 Hanix excavator specs & dimensions (2001 - 2005)

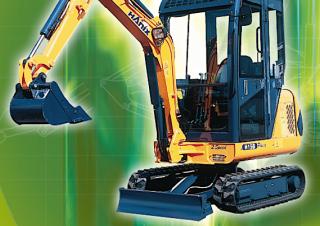

Hanix H 15 B-2 is a mini excavator manufactured from 2001 to 2005. It has a weight of 1.57 tons and a track width of 230 mm. The t…

Hanix H 15 B-2 is a mini excavator manufactured from 2001 to 2005. It has a weight of 1.57 tons and a track width of 230 mm. The transport dimensions are 3.72 meters in length, 1 meter in width, and 2.26 meters in height. The maximum horizontal reach is 3.635 meters, and the bucket capacity is 0.05 cubic meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Hanix H 15 B-2

Technical specs - H 15 B-2 Hanix

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.57 t
Transport length
3.72 m
Transport width
1 m
Transport height
2.26 m
Bucket capacity
0.05 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.635 m
Dredging depth
2.15 m
Tear-out force
14.4 kN
Model series
H
Engine manuf.
Mitsubishi
Engine type
L 3 E
Engine power
12.7 kW
Displacement
0.952 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hanix H 15 B-2 FAQ

When was the Hanix H 15 B-2 manufactured?

The Hanix H 15 B-2 was manufactured from 2001 to 2005.

How much does the Hanix H 15 B-2 weigh?

The Hanix H 15 B-2 weighs 1.57 tons.

What are the transport dimensions of the Hanix H 15 B-2 mini excavator?

The Hanix H 15 B-2 has a transport length of 3.72 meters, a transport width of 1 meter, and a transport height of 2.26 meters.

What is the track width of the Hanix H 15 B-2 mini excavator's undercarriage?

The Hanix H 15 B-2 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Hanix H 15 B-2 mini excavator?

The Hanix H 15 B-2 mini excavator has a dredging depth of 2.15 meters and a maximum horizontal reach of 3.635 meters.

What is the tear-out force of the Hanix H 15 B-2 mini excavator?

The Hanix H 15 B-2 mini excavator has a tear-out force of 14.4 kN.

What is the bucket capacity of the Hanix H 15 B-2 mini excavator?

The Hanix H 15 B-2 mini excavator has a bucket capacity of 0.05 cubic meters.

What operator safety and support features does the Hanix H 15 B-2 have?

The Hanix H 15 B-2 is equipped with a canopy for driver protection.
