223 Gehl excavator specs & dimensions (2004 - 2026)

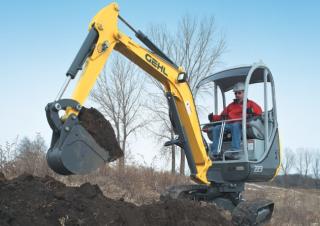

Gehl 223 is a mini excavator manufactured since 2004, with a weight of 2 tons and a transport width of 0.99 meters. It has a dredg…

Gehl 223 is a mini excavator manufactured since 2004, with a weight of 2 tons and a transport width of 0.99 meters. It has a dredging depth of 2.617 meters and a maximum horizontal reach of 4.273 meters. The bucket capacity is 0.052 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Gehl 223

Technical specs - 223 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2 t
Transport width
0.99 m
Bucket capacity
0.052 m³
Bucket width
0.4 m
Max. Reach horizontal
4.273 m
Dredging depth
2.617 m
Engine manuf.
Yanmar
Engine type
3TNE 74
Engine power
17.3 kW
Displacement
1.01 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: transport length, transport height, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Gehl 223 FAQ

When was the Gehl 223 manufactured?

The Gehl 223 was first produced in 2004.

How much does the Gehl 223 mini excavator weigh?

The Gehl 223 mini excavator weighs 2 tons.

What is the transport width of the Gehl 223 mini excavator?

The transport width of the Gehl 223 mini excavator is 0.99 meters.

What are the excavation performance specifications of the Gehl 223 mini excavator?

The Gehl 223 mini excavator has a dredging depth of 2.617 meters and a maximum horizontal reach of 4.273 meters.

What are the bucket specifications of the Gehl 223 mini excavator?

The Gehl 223 mini excavator has a bucket capacity of 0.052 cubic meters and a bucket width of 0.4 meters.

How much is a Gehl 223 Mini excavator (2004u20132025) worth?

The residual value of the Gehl 223 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Gehl 223 overview

Dimensions and weight

MakeYanmar
Model3TNE 74
Type3-cyl. water-cooled diesel
Displacement (cc)61.3 cid (1006)
Net Power (kW) @ rpm23.7 hp (17.3) @ 2200 rpm
Battery (Ah)12-V (45)
Fuel Tank (L)6.3 gal (24)
HYDRAULIC SYSTEM
Pumpstwo variable capacity + two gear pumps
Flow Rate (L/min)2@ 6.1 gpm(23) + 4.9 gpm (18.5)+1.6 gpm (6)
Working Pressure (bar)2900 psi (200) all pumps
Swing System Pressure (bar)2175 psi (150)
Oil Coolerstandard
Hydraulic Tank (L)5.5 gal (21)
UNDERCARRIAGE AND SLEWING SYSTEM
Travel Speed - dual (km/h)1.2 mph (2.0) 2.4 mph (4.0)"
Gradability30° = 58%
Rubber Track Width (mm) (A)9.8” (250)
No. of Track Rollers4 on each side
Tracks Tensionhydraulic
Sprocket Center (C)4’3” (1325)
Ground Clearance (mm)7.1” (180)
Ground Pressure - average (kg/cm2 )4.0 psi (0.28)
Slew Speed10 rpm
GENERAL SPECIFICATIONS
Operating Weight (kg)
w/cab4447 lbs (2017)
w/canopy4248 lbs (1927)
Dimensions (mm)
Height / Width / Length (D/E/F)7’11” (2395) / 3’3” (990) / 13’1” (3990)
Max. Digging Depth (mm) (G)8’1” (2480)
w/long arm - optional (G*)8’7” (2617)
Max. Digging Height (mm) (H)12’8” (3885)
w/long arm (H*)13’2” (4005)
Max. Vertical Wall Dig Depth (mm) (I)5’4” (1650)
w/long arm (I*)6’0” (1835)
Max. Dump Height (mm) (J)9’2” (2780)
w/long arm (J*)9’7” (2910)
Max. Digging Radius (mm) (K)13’4” (4090)
w/long arm (K*)14’0” (4273)
Bucket Dig Force (kN)4226 lbf (18.8)
Min. Tail Swing Radius (mm) (L)3’8” (1160)
Min. Front Swing Radius (mm) (M)5’2” (1575)
Swing Angle - left/right (N/O)80°/45°
House Leveling (P)15°
Hyd. Telescoping Undercarriage (mm)3’3” - 4’3” (990 - 1300)
DOZER BLADE
Dimensions (mm)
Width - Extended - Retracted51.3” (1300) - 39” (990)
Height10.2” (260)
Max. Lift (mm)
Above / Below Ground (Q/R)9.6” (245) / 9.4” (238)
BUCKET - STANDARD
Width (mm)15.7” (400)
Capacity (L)1.8 cu.ft. (52)
SOUND LEVELS
Power / Pressure Level94 dB(A) / 78 dB(A)

Tables

Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)Pounds (kg)
A BCHCH
9'10"""904 *904 *871 *871 *
(3.0 m)(410)(410)(395)(395)
6'7"""871 *694871 *794882 *882 *
(2.0 m)(395)(315)(395)(360)(400)(400)
3'3"""904 *5951036*7611213 *9921676 *13562458 *2127
(1.0 m)(410)(270)(470)(345)(550)(450)(760)(615)(1115)(965)
0937*6171135*7391907 *9372028 *12902998 *2017
(0 m)(425)(280)(515)(335)(865)(425)(920)(585)(1360)(915)
-3'3"""970*7611290 *9261742 *12792502 *2028
(-1.0 m)(440)(345)(585)(420)(790)(580)(1135)(920)
-4'11"""948*948 *1279 *1279 *1797 *1797 *
(-1.5 m)(430)(430)(580)(580)(815)(815)
