153 Gehl excavator specs & dimensions (2004 - 2026)

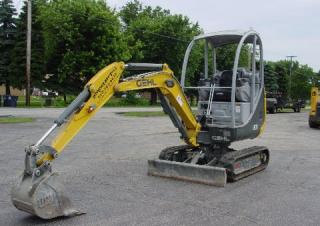

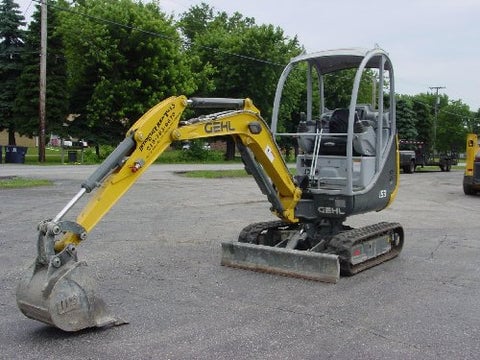

Gehl 153 is a mini excavator manufactured since 2004, with a weight of 1.71 tons and a transport width of 0.99 meters. It has a dr…

Gehl 153 is a mini excavator manufactured since 2004, with a weight of 1.71 tons and a transport width of 0.99 meters. It has a dredging depth of 2.28 meters and a maximum horizontal reach of 4.273 meters. The bucket width is 0.3 meters, with a bucket capacity of 0.32 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Gehl 153

Technical specs - 153 Gehl

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.71 t
Transport width
0.99 m
Bucket capacity
0.32 m³
Bucket capacity max.
0.32 m³
Bucket width
0.3 m
Max. Reach horizontal
4.273 m
Dredging depth
2.28 m
Engine manuf.
Yanmar
Engine type
3TNE 74
Engine power
17.3 kW
Displacement
1.1 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: transport length, transport height, bucket capacity min., track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Gehl 153 FAQ

When was the Gehl 153 manufactured?

The Gehl 153 was first produced in 2004.

How much does the Gehl 153 mini excavator weigh?

The Gehl 153 mini excavator weighs 1.71 tons.

What is the transport width of the Gehl 153 mini excavator?

The transport width of the Gehl 153 mini excavator is 0.99 meters.

What are the excavation performance specifications of the Gehl 153 mini excavator?

The Gehl 153 mini excavator has a dredging depth of 2.28 meters and a maximum horizontal reach of 4.273 meters.

What are the bucket specifications of the Gehl 153 mini excavator?

The Gehl 153 mini excavator has a bucket capacity of 0.32 cubic meters and a bucket width of 0.3 meters.

How much is a Gehl 153 Mini excavator (2004u20132025) worth?

The residual value of the Gehl 153 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
