FR18E-u Foton Lovol excavator specs & dimensions (2019 - 2026)

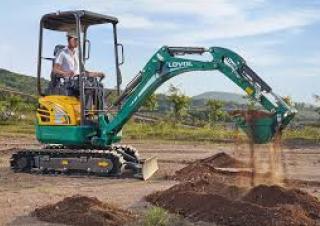

Foton Lovol FR18E-u is a mini excavator manufactured since 2019, with a weight of 1.81 tons. It features a track width of 230 mm, …

Foton Lovol FR18E-u is a mini excavator manufactured since 2019, with a weight of 1.81 tons. It features a track width of 230 mm, a transport length of 3.575 meters, a transport width of 1.05 meters, and a transport height of 2.347 meters. The machine has a tear-out force of 15.2 kN, a dredging depth of 2.31 meters, and a maximum horizontal reach of 3.905 meters. The bucket capacity is a minimum of 0.027 cubic meters.

Mini Excavators Foton Lovol FR18E-u

Technical specs - FR18E-u Foton Lovol

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.81 t
Transport length
3.575 m
Transport width
1.05 m
Transport height
2.347 m
Bucket capacity min.
0.027 m³
Track width
230 mm
Max. Reach horizontal
3.905 m
Dredging depth
2.31 m
Tear-out force
15.2 kN
Model series
FR
Engine manuf.
Yanmar
Engine type
3TNV70 PFN
Engine power
11.5 kW
Revolutions at max torque
1600 rpm
Max. torque
48 Nm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, driver protection, dimension lxwxh, displacement, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Foton Lovol FR18E-u FAQ

When was the Foton Lovol FR18E-u manufactured?

The Foton Lovol FR18E-u was first produced in 2019.

How much does the Foton Lovol FR18E-u weigh?

The Foton Lovol FR18E-u weighs 1.81 tons.

What are the transport dimensions of the Foton Lovol FR18E-u mini excavator?

The Foton Lovol FR18E-u has a transport length of 3.58 meters, a transport width of 1.05 meters, and a transport height of 2.35 meters.

What is the track width of the Foton Lovol FR18E-u mini excavator?

The Foton Lovol FR18E-u mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Foton Lovol FR18E-u mini excavator?

The Foton Lovol FR18E-u mini excavator has a dredging depth of 2.31 meters and a maximum horizontal reach of 3.905 meters.

What is the power rating of the Foton Lovol FR18E-u mini excavator?

There is no power rating data available for the Foton Lovol FR18E-u mini excavator in the provided source data.

What is the minimum bucket capacity of the Foton Lovol FR18E-u mini excavator?

The minimum bucket capacity of the Foton Lovol FR18E-u is 0.03 cubic meters.
