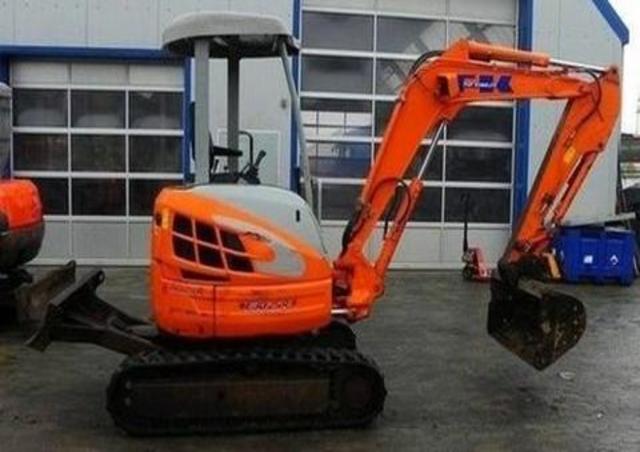

E 45 SR Fiat Kobelco excavator specs & dimensions (2003 - 2003)

Fiat Kobelco E 45 SR is a mini excavator manufactured in 2003, with a weight of 4.6 tons. It features a track width of 400 mm and …

Fiat Kobelco E 45 SR is a mini excavator manufactured in 2003, with a weight of 4.6 tons. It features a track width of 400 mm and has transport dimensions of 5.3 meters in length, 1.96 meters in width, and 2.59 meters in height. The excavator is equipped with a blade and rubber tracks.

Mini Excavators Fiat Kobelco E 45 SR

Technical specs - E 45 SR Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.6 t
Transport length
5.3 m
Transport width
1.96 m
Transport height
2.59 m
Track width
400 mm
Driver protection
FD
Max. Reach horizontal
5.05 m
Dredging depth
3.6 m
Tear-out force
52.9 kN
Engine manuf.
Yanmar
Engine type
4TNE88YB
Engine power
27 kW

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Fiat Kobelco E 45 SR FAQ

When was the Fiat Kobelco E 45 SR manufactured?

The Fiat Kobelco E 45 SR was manufactured in 2003.

How much does the Fiat Kobelco E 45 SR weigh?

The Fiat Kobelco E 45 SR weighs 4.6 tons.

What are the transport dimensions of the Fiat Kobelco E 45 SR mini excavator?

The Fiat Kobelco E 45 SR has a transport length of 5.3 meters, a transport width of 1.96 meters, and a transport height of 2.59 meters.

What is the track width of the undercarriage on the Fiat Kobelco E 45 SR mini excavator?

The Fiat Kobelco E 45 SR mini excavator has a track width of 400 mm.

What are the dredging depth and maximum horizontal reach of the Fiat Kobelco E 45 SR?

The Fiat Kobelco E 45 SR has a dredging depth of 3.6 meters and a maximum horizontal reach of 5.05 meters.

What are the power ratings of the Fiat Kobelco E 45 SR?

The source data does not provide power ratings for the Fiat Kobelco E 45 SR.

What operator safety and support features does the Fiat Kobelco E 45 SR have?

The Fiat Kobelco E 45 SR is equipped with a canopy for driver protection.

How much is a Fiat Kobelco E 45 SR Mini excavator (2003u20132003) worth?

The residual value of the Fiat Kobelco E 45 SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
