E 25 SR Fiat Kobelco excavator specs & dimensions (2003 - 2003)

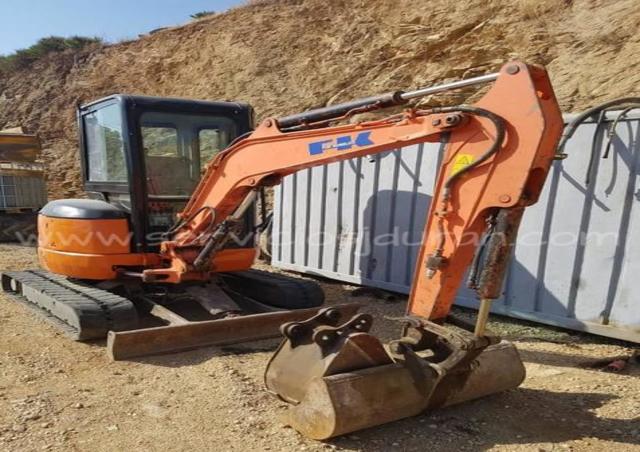

Fiat Kobelco E 25 SR is a mini excavator manufactured in 2003, with a weight of 2.41 tons. It features a track width of 250 mm, a …

Fiat Kobelco E 25 SR is a mini excavator manufactured in 2003, with a weight of 2.41 tons. It features a track width of 250 mm, a transport length of 4.17 meters, a transport width of 1.5 meters, and a transport height of 2.4 meters. The bucket capacity ranges from 0.035 m³ to 0.088 m³. Special equipment includes a blade and rubber tracks.

Mini Excavators Fiat Kobelco E 25 SR

Technical specs - E 25 SR Fiat Kobelco

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.41 t
Transport length
4.17 m
Transport width
1.5 m
Transport height
2.4 m
Bucket capacity min.
0.035 m³
Bucket capacity max.
0.088 m³
Track width
250 mm
Driver protection
FD
Max. Reach horizontal
4.08 m
Dredging depth
2.56 m
Tear-out force
17.7 kN
Engine manuf.
Yanmar
Engine type
3TNE74N
Engine power
13.2 kW

More technical details, like: bucket capacity, bucket width, standard tyres, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Fiat Kobelco E 25 SR FAQ

When was the Fiat Kobelco E 25 SR manufactured?

The Fiat Kobelco E 25 SR was manufactured in 2003.

How much does the Fiat Kobelco E 25 SR weigh?

The Fiat Kobelco E 25 SR weighs 2.41 tons.

What are the transport dimensions of the Fiat Kobelco E 25 SR mini excavator?

The Fiat Kobelco E 25 SR has a transport length of 4.17 meters, a transport width of 1.5 meters, and a transport height of 2.4 meters.

What is the track width of the Fiat Kobelco E 25 SR mini excavator?

The Fiat Kobelco E 25 SR mini excavator has a track width of 250 millimeters.

What are the excavation performance specifications of the Fiat Kobelco E 25 SR?

The Fiat Kobelco E 25 SR has a dredging depth of 2.56 meters and a maximum horizontal reach of 4.08 meters.

What is the tear-out force of the Fiat Kobelco E 25 SR?

The Fiat Kobelco E 25 SR has a tear-out force of 17.7 kN.

What are the bucket capacity specifications of the Fiat Kobelco E 25 SR mini excavator?

The Fiat Kobelco E 25 SR has a bucket capacity ranging from 0.04 to 0.09 cubic meters.

What operator safety and support features does the Fiat Kobelco E 25 SR have?

The Fiat Kobelco E 25 SR is equipped with a canopy for driver protection.
