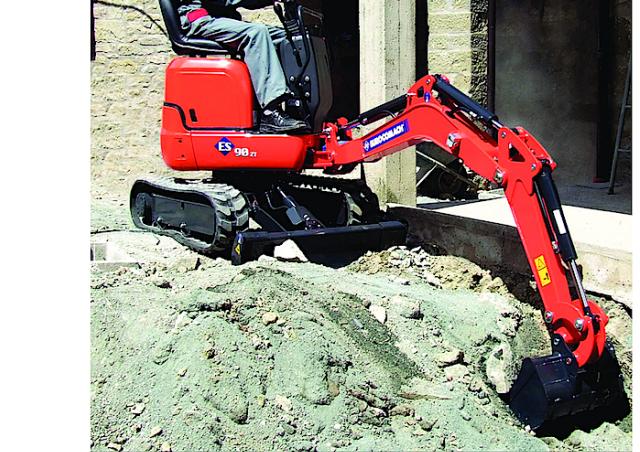

ES 90 ZT Eurocomach excavator specs & dimensions (2006 - 2011)

Eurocomach ES 90 ZT is a mini excavator manufactured from 2006 to 2011. It has a weight of 0.96 tons and a track width of 180 mm. …

Eurocomach ES 90 ZT is a mini excavator manufactured from 2006 to 2011. It has a weight of 0.96 tons and a track width of 180 mm. The transport dimensions are 1.5 meters in length, 0.8 meters in width, and 2 meters in height. The machine features a tear-out force of 9.9 kN and a maximum horizontal reach of 3.1 meters. Special equipment includes a blade and rubber tracks.

Mini Excavators Eurocomach ES 90 ZT

Technical specs - ES 90 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
0.96 t
Transport length
1.5 m
Transport width
0.8 m
Transport height
2 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.1 m
Dredging depth
1.62 m
Tear-out force
9.9 kN
Model series
MME
Engine manuf.
Yanmar
Engine type
2TNV70
Engine power
7.6 kW
Displacement
0.57 l
Revolutions at max torque
2300 rpm
No. of cylinders
2

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach ES 90 ZT FAQ

When was the Eurocomach ES 90 ZT manufactured?

The Eurocomach ES 90 ZT was manufactured from 2006 to 2011.

How much does the Eurocomach ES 90 ZT weigh?

The Eurocomach ES 90 ZT weighs 0.96 tons.

What are the transport dimensions of the Eurocomach ES 90 ZT mini excavator?

The Eurocomach ES 90 ZT has transport dimensions of 1.5 meters in length, 0.8 meters in width, and 2 meters in height.

What is the track width of the Eurocomach ES 90 ZT mini excavator?

The Eurocomach ES 90 ZT has a track width of 180 mm.

What are the excavation performance specifications of the Eurocomach ES 90 ZT mini excavator?

The Eurocomach ES 90 ZT mini excavator has a dredging depth of 1.62 meters and a maximum horizontal reach of 3.1 meters.

What is the tear-out force of the Eurocomach ES 90 ZT mini excavator?

The Eurocomach ES 90 ZT mini excavator has a tear-out force of 9.9 kN.

What operator safety features does the Eurocomach ES 90 ZT have?

The Eurocomach ES 90 ZT is equipped with a roll-over bar for driver protection.

How much is a Eurocomach ES 90 ZT Mini excavator (2006u20132011) worth?

The residual value of the Eurocomach ES 90 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Eurocomach ES 90 ZT overview

Dimensions and weight

HYDRAULIC SYSTEM
Pump typen°2 gear pumps
Pump displacement cc48 - 48"
Pump capacity lt./min23
Auxiliary system lt./min23
Circuit calibration pressure Bar170
PERFORMANCES
Bucket breaking force (standard arm) ISO 6015 kgf1010
Arm breaking force (standard arm) ISO 6015 kgf752
Traction force kgf1050
Ground bearing pressure kg/cm2028"
Max slope60% - 30°
DIMENSIONS
Total width mm760 - 990
Max dumping height with standard arm (optional arm) mm2070 - (2180)
Total height mm2200 (canopy)
Rear rotation radius. mm500
Max digging depth standard arm (optional arm) mm1620 - (1770)
Digging arm length std (optional)mm750 - (900)
Tracks width mm180
Rollers number (for each side)2
FILLINGS
Fuel tank lt.10
Hydraulic oil tank lt.95"
Hydraulic circuit capacity lt.15
Cooling system capacity lt.5
Engine oil lt.15"
CONTROLS
Bucket boom swing slew"2 lever
Travel and steering2 lever
Dozer bladelever
Auxiliary hydraulics systemleft pedal
Boom swingright pedal

Tables

ES 90 ZT - LIFTING CAPACITY Opening arm from the rotation's center Lifting capacity at 10 m height"
15"225"max
DOZER FRONT END290175125105
IDLER CENTER335235200175
CRAWLER CENTER33519011590
• Control’s protection • Rubber tracks • Landfill blade• Spare parts catalogue use and maintenance and tollbox • Working light on the first arm"
• Translation duble speed• Protection on blade cylinder
• Digging arm 750 mm• Auxiliary Hydraulic circuit on the digging arm
• Air dry filter with indicator of clogging
OPTIONAL EQUIPMENTS
• 2 Columns Canopy (EN 13531) - FOPS (ISO 3449) with seat belt• Standard buckets from 200 mm to 500 mm • Ditch cleaning buckets 800 mm
• 4 Columns Canopy (EN 13531) - FOPS (ISO 3449) with seat belt• Trapezoidal bucket • Demolition hammer
• Digging arm 900 mm• Drill with bits from 150 mm up to 300 mm of
• Mechanic quick coupling for buckets and fittingsdiameter
