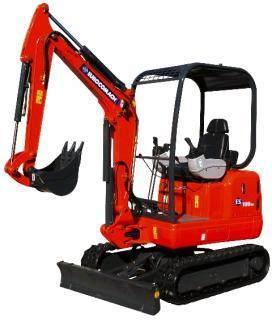

ES 180 SR Eurocomach excavator specs & dimensions (2005 - 2010)

Eurocomach ES 180 SR is a mini excavator manufactured from 2005 to 2010, with a weight of 1.65 tons. It features a track width of …

Eurocomach ES 180 SR is a mini excavator manufactured from 2005 to 2010, with a weight of 1.65 tons. It features a track width of 230 mm and has transport dimensions of 3.61 meters in length, 1.3 meters in width, and 2.22 meters in height. The excavator is equipped with a blade, rubber track, and track adjustment.

Mini Excavators Eurocomach ES 180 SR

Technical specs - ES 180 SR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.65 t
Transport length
3.61 m
Transport width
1.3 m
Transport height
2.22 m
Track width
230 mm
Driver protection
Ü
Model series
MME
Engine manuf.
Kubota
Engine type
D1105-B
Engine power
16.8 kW

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, max. reach horizontal, dredging depth, tear-out force, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Eurocomach ES 180 SR FAQ

When was the Eurocomach ES 180 SR manufactured?

The Eurocomach ES 180 SR was manufactured from 2005 to 2010.

How much does the Eurocomach ES 180 SR weigh?

The Eurocomach ES 180 SR weighs 1.65 tons.

What are the transport dimensions of the Eurocomach ES 180 SR mini excavator?

The Eurocomach ES 180 SR has a transport length of 3.61 meters, a transport width of 1.3 meters, and a transport height of 2.22 meters.

What is the track width of the Eurocomach ES 180 SR mini excavator?

The Eurocomach ES 180 SR mini excavator has a track width of 230 mm.

What operator safety feature does the Eurocomach ES 180 SR have?

The Eurocomach ES 180 SR is equipped with a roll-over bar for driver protection.

How much is a Eurocomach ES 180 SR Mini excavator (2005u20132010) worth?

The residual value of the Eurocomach ES 180 SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
