45va Eurocomach excavator specs & dimensions (2022 - 2023)

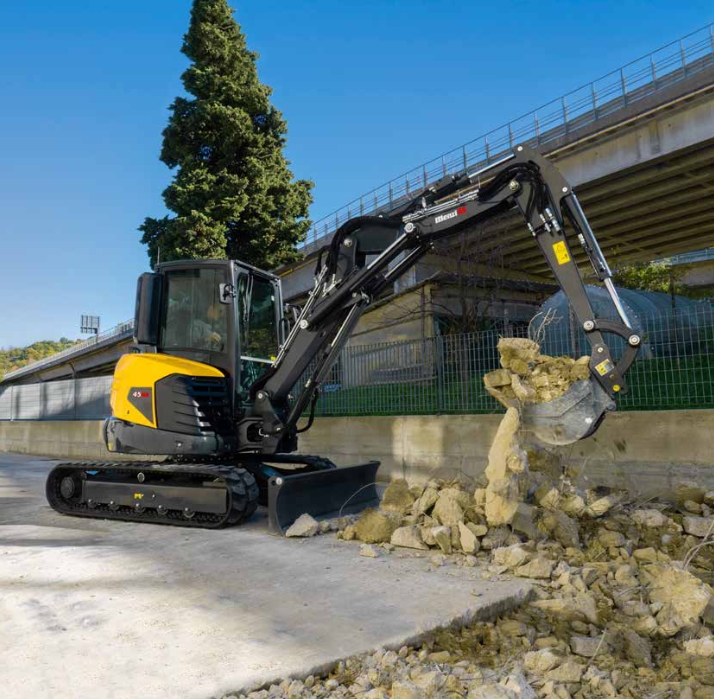

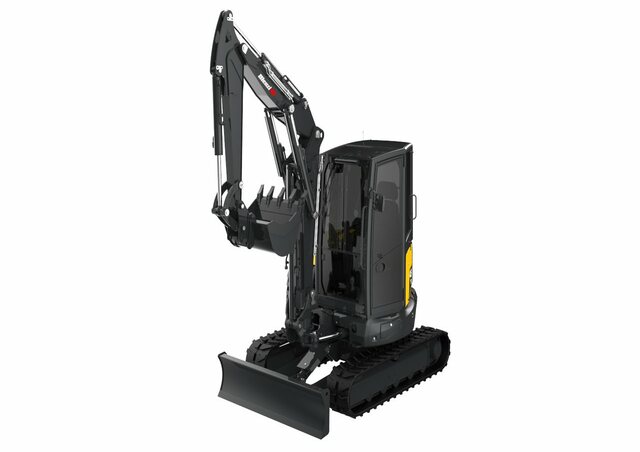

Menzi 45va is a mini excavator manufactured since 2022, with a weight of 4.6 t. It features a track width of 350 mm, a transport l…

Menzi 45va is a mini excavator manufactured since 2022, with a weight of 4.6 t. It features a track width of 350 mm, a transport length of 5.35 m, a transport width of 1.75 m, and a transport height of 2.51 m. The machine has a tear-out force of 43 kN, a dredging depth of 4.23 m, and a maximum horizontal reach of 5.84 m. It is equipped with a blade and rubber tracks.

45va

Years of manufacture: 2022—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 45va Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.6 t

Transport length: 5.35 m

Transport width: 1.75 m

Transport height: 2.51 m

Track width: 350 mm

Driver protection: Kb

Max. Reach horizontal: 5.84 m

Dredging depth: 4.23 m

Tear-out force: 43 kN

Engine manuf.: Kubota

Engine type: D1803-CR-T

Engine power: 32.3 kW

Displacement: 1.826 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Eurocomach 45va FAQ

When was the Eurocomach 45va manufactured?

The Eurocomach 45va was manufactured from 2022 to 2023.

How much does the Eurocomach 45va weigh?

The Eurocomach 45va weighs 4.6 tons.

What are the transport dimensions of the Eurocomach 45va mini excavator?

The Eurocomach 45va has a transport length of 5.35 meters, a transport width of 1.75 meters, and a transport height of 2.51 meters.

What is the track width of the Eurocomach 45va mini excavator?

The Eurocomach 45va mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Eurocomach 45va mini excavator?

The Eurocomach 45va mini excavator has a dredging depth of 4.23 meters and a maximum horizontal reach of 5.84 meters.

What is the tear-out force of the Eurocomach 45va mini excavator?

The Eurocomach 45va mini excavator has a tear-out force of 43 kN.

What is the driver protection feature of the Eurocomach 45va?

The Eurocomach 45va has driver protection in the form of a cabin.

How much is a Eurocomach 45va Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 45va depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
