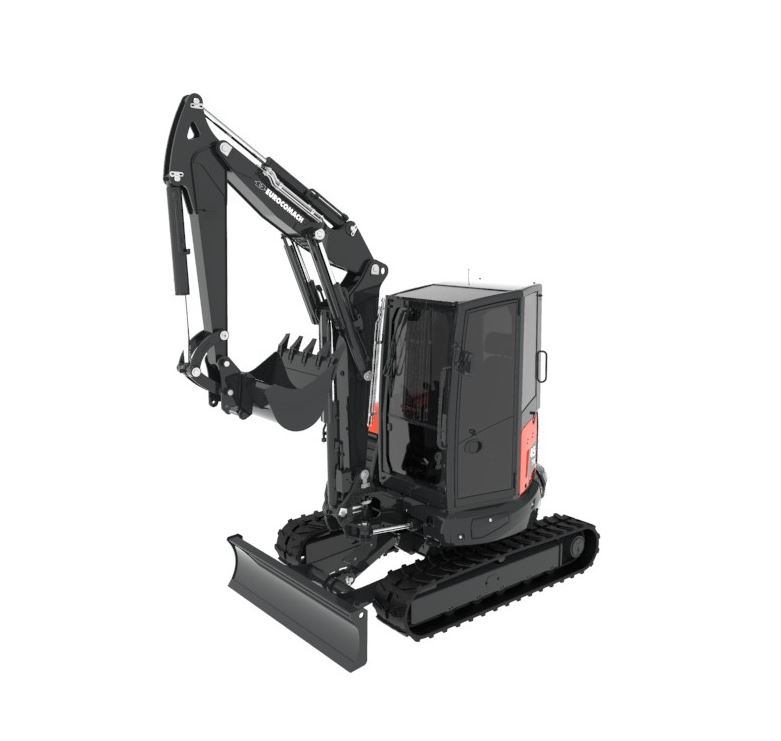

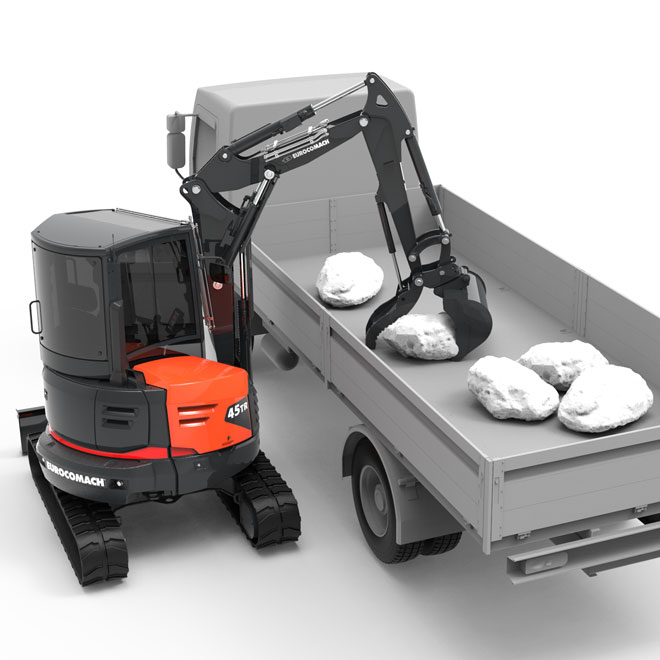

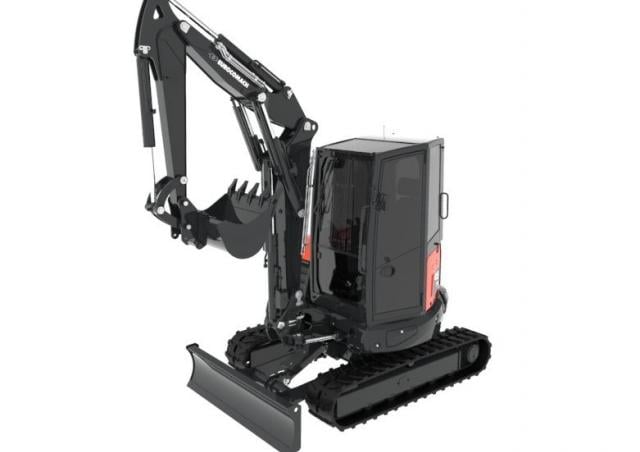

Dimensions and weight
| HYDRAULIC SYSTEM | ||||
| Circuit Type | Load Sensing closed center system with “Flow Sharing” control valve | |||
| Pump type | 1 LS hydraulic variable pump with electronic control + 1 gear pump | |||
| Pump displacement | cc | 53 | 7 + 11 | 2" |
| Pump capacity | lt/min | 107 + 22 | 3" | |
| Max. circuit calibration pressure | bar | 280 | ||
| Auxiliary systems (max pressure): | ||||
| AUX 1 single or double effect with priority AUX 2 double effect (optional) | lt/min (bar) | 60 (200) 40/30 (280) | ||
| PERFORMANCES | ||||
| Max. digging depth with standard arm (optional arm) | mm | 3.230 (3.480) | ||
| Max. dumping height with standard arm (optional arm) | mm | 4.620 (4.860) | ||
| Bucket breaking force (standard arm) ISO 6015 | daN | 4.300 | ||
| Arm breaking force (standard arm) ISO 6015 | daN | 2.200 | ||
| Traction force | daN | 4.260 | ||
| Ground bearing pressure with rubber tracks and canopy (with cabin) | kg/cm2 | 0 | 32 (0 | 33)" |
| Max. slope | 60% - 30° | |||
| DIMENSIONS | ||||
| Maximum width | mm | 1.750 | ||
| Total height | mm | 2.510 | ||
| Rear rotation radius | mm | 975 | ||
| Digging arm length std (optional) | mm | 1.400 (1.650) | ||
| Tracks width | mm | 350 | ||
| Rollers number (for each side) | n° | 5/1 | ||
| FILLINGS | ||||
| Fuel tank | lt | 60 | ||
| Hydraulic oil tank | lt | 50 | ||
| Hydraulic circuit capacity | lt | 65 | ||
| Cooling system capacity | lt | 9 | ||
| Engine oil | lt | 7 |
