28sa Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 28sa is a mini excavator manufactured since 2022, with a weight of 2.7 tons. It features a track width of 280 mm and has tra…

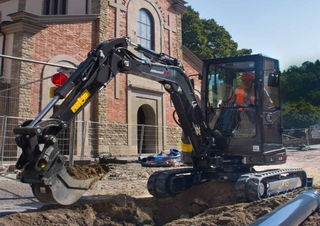

Menzi 28sa is a mini excavator manufactured since 2022, with a weight of 2.7 tons. It features a track width of 280 mm and has transport dimensions of 4.46 meters in length, 1.55 meters in width, and 2.53 meters in height. The machine offers a tear-out force of 24 kN, a dredging depth of 2.66 meters, and a maximum horizontal reach of 4.49 meters. It is equipped with a blade and rubber tracks.

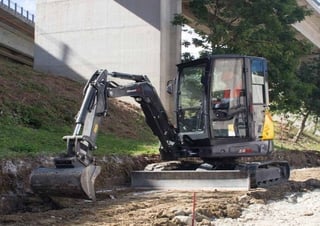

Mini Excavators Eurocomach 28sa
Mini Excavators Eurocomach 28sa
Mini Excavators Eurocomach 28sa
Mini Excavators Eurocomach 28sa

Technical specs - 28sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.7 t
Transport length
4.46 m
Transport width
1.55 m
Transport height
2.53 m
Track width
280 mm
Driver protection
FD
Max. Reach horizontal
4.49 m
Dredging depth
2.66 m
Tear-out force
24 kN
Engine manuf.
Kubota
Engine type
D1703-M-DI
Engine power
18.5 kW
Displacement
1.647 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
Tier 4b

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 28sa FAQ

When was the Eurocomach 28sa manufactured?

The Eurocomach 28sa was manufactured from 2022 to 2023.

How much does the Eurocomach 28sa weigh?

The Eurocomach 28sa weighs 2.7 tons.

What are the transport dimensions of the Eurocomach 28sa mini excavator?

The Eurocomach 28sa has a transport length of 4.46 meters, a transport width of 1.55 meters, and a transport height of 2.53 meters.

What is the track width of the Eurocomach 28sa mini excavator?

The Eurocomach 28sa mini excavator has a track width of 280 mm.

What are the excavation performance specifications of the Eurocomach 28sa mini excavator?

The Eurocomach 28sa mini excavator has a dredging depth of 2.66 meters and a maximum horizontal reach of 4.49 meters.

What is the tear-out force of the Eurocomach 28sa mini excavator?

The Eurocomach 28sa mini excavator has a tear-out force of 24 kN.

What operator safety and support features does the Eurocomach 28sa have?

The Eurocomach 28sa is equipped with a canopy for driver protection.

How much is a Eurocomach 28sa Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 28sa depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
