25sa Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 25sa is a mini excavator manufactured since 2022. It has a weight of 2.54 tons and a track width of 280 mm. The transport di…

Menzi 25sa is a mini excavator manufactured since 2022. It has a weight of 2.54 tons and a track width of 280 mm. The transport dimensions are 4.515 meters in length, 1.5 meters in width, and 2.527 meters in height. The machine features a tear-out force of 22 kN, a dredging depth of 2.725 meters, and a maximum horizontal reach of 4.62 meters. It is equipped with a blade and rubber tracks.

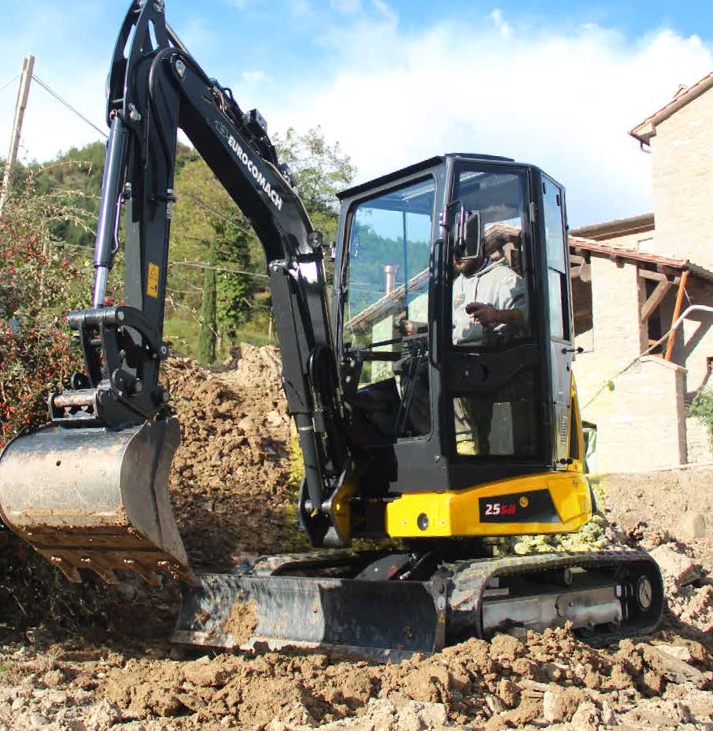

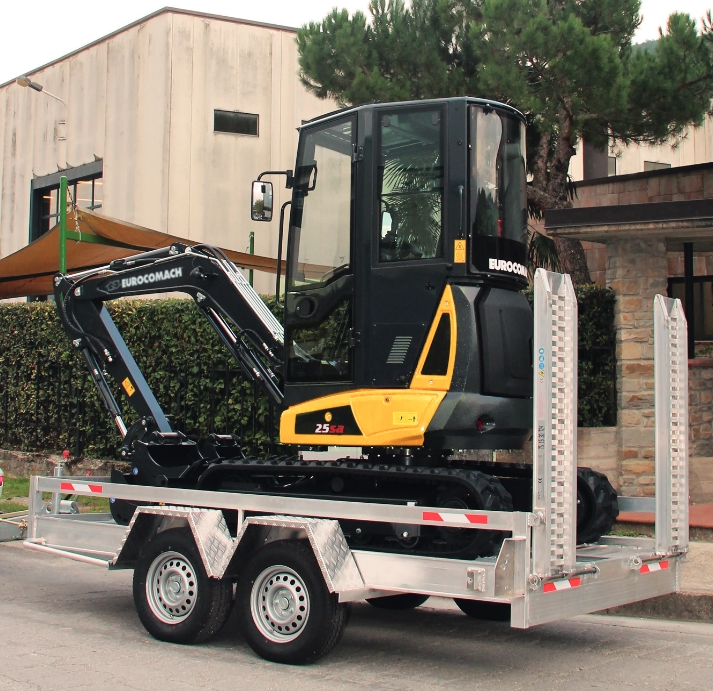

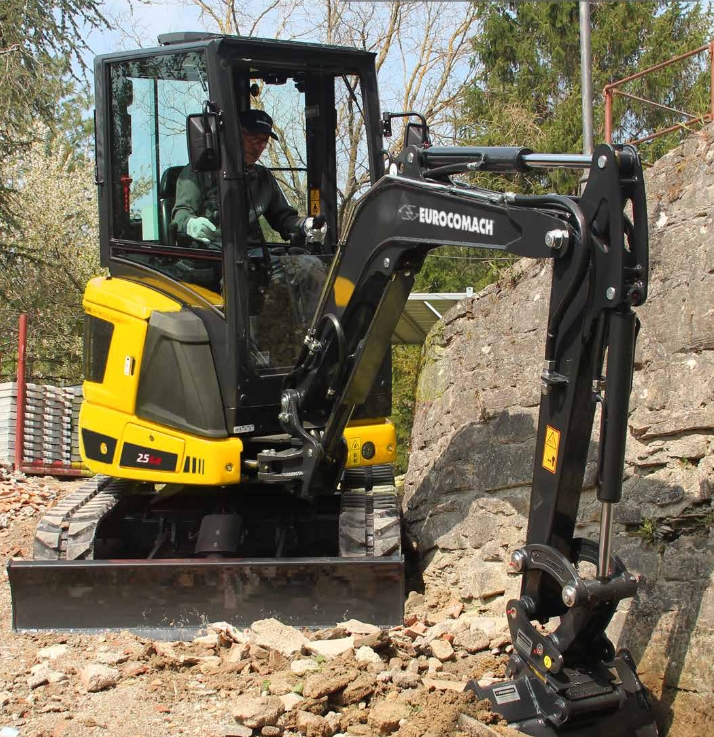

Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa
Mini Excavators Eurocomach 25sa

Technical specs - 25sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.54 t
Transport length
4.515 m
Transport width
1.5 m
Transport height
2.527 m
Track width
280 mm
Driver protection
Kb
Max. Reach horizontal
4.62 m
Dredging depth
2.725 m
Tear-out force
22 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15.5 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 25sa FAQ

When was the Eurocomach 25sa manufactured?

The Eurocomach 25sa was manufactured from 2022 to 2023.

How much does the Eurocomach 25sa weigh?

The Eurocomach 25sa weighs 2.54 tons.

What are the transport dimensions of the Eurocomach 25sa mini excavator?

The Eurocomach 25sa has a transport length of 4.52 meters, a transport width of 1.5 meters, and a transport height of 2.53 meters.

What is the track width of the Eurocomach 25sa mini excavator?

The Eurocomach 25sa mini excavator has a track width of 280 mm.

What are the excavation performance specifications of the Eurocomach 25sa?

The Eurocomach 25sa has a dredging depth of 2.725 meters and a maximum horizontal reach of 4.62 meters.

What is the tear-out force of the Eurocomach 25sa mini excavator?

The Eurocomach 25sa mini excavator has a tear-out force of 22 kN. No power ratings such as engine power or horsepower are provided in the available data.

What operator safety features does the Eurocomach 25sa have?

The Eurocomach 25sa has a cabin for driver protection.
