25sa Eurocomach excavator specs & dimensions (2017 - 2021)

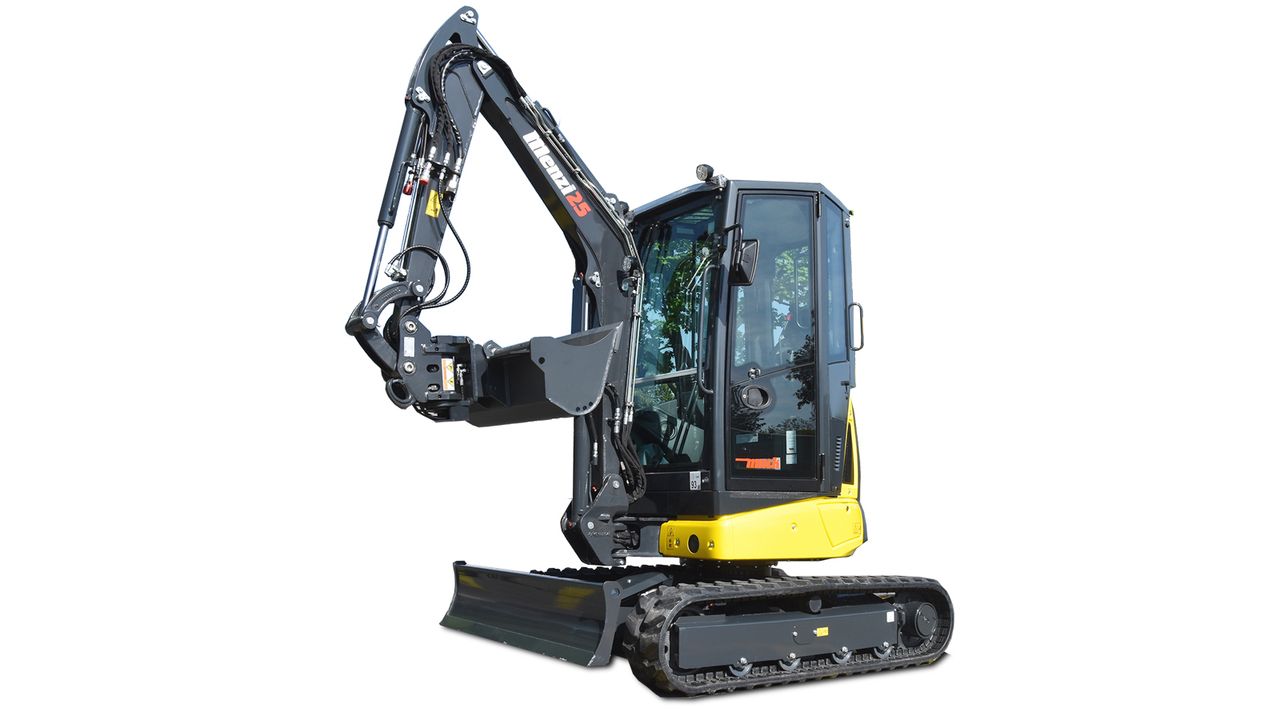

Menzi 25sa is a mini excavator manufactured from 2017 to 2021, with a weight of 2.6 tons. It has a transport width of 1.5 meters a…

Menzi 25sa is a mini excavator manufactured from 2017 to 2021, with a weight of 2.6 tons. It has a transport width of 1.5 meters and a transport height of 2.527 meters. The dredging depth is 4.62 meters, and the maximum horizontal reach is 2.725 meters. This model includes a blade as special equipment.

Mini Excavators Eurocomach 25sa

Technical specs - 25sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.6 t
Transport width
1.5 m
Transport height
2.527 m
Driver protection
FD
Max. Reach horizontal
2.725 m
Dredging depth
4.62 m
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
15.66 kW
Displacement
1.116 l
No. of cylinders
3

More technical details, like: transport length, bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque...

More technical details, like: transport length, bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 25sa FAQ

When was the Eurocomach 25sa manufactured?

The Eurocomach 25sa was manufactured from 2017 to 2021.

How much does the Eurocomach 25sa weigh?

The Eurocomach 25sa weighs 2.6 tons.

What are the transport dimensions of the Eurocomach 25sa mini excavator?

The Eurocomach 25sa has a transport width of 1.5 meters and a transport height of 2.53 meters.

What are the excavation performance specifications of the Eurocomach 25sa mini excavator?

The Eurocomach 25sa mini excavator has a dredging depth of 4.62 meters and a maximum horizontal reach of 2.725 meters.

What operator safety and support features does the Eurocomach 25sa have?

The Eurocomach 25sa is equipped with a canopy for driver protection.

How much is a Eurocomach 25sa Mini excavator (2017u20132021) worth?

The residual value of the Eurocomach 25sa depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
