22sa Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 22sa is a Mini Excavator manufactured since 2022, with a weight of 2.19 tons. It features a track width of 230 mm and has tr…

Menzi 22sa is a Mini Excavator manufactured since 2022, with a weight of 2.19 tons. It features a track width of 230 mm and has transport dimensions of 4.015 meters in length, 0.99 meters in width, and 2.395 meters in height. The excavator has a tear-out force of 16 kN, a dredging depth of 2.56 meters, and a maximum horizontal reach of 4.235 meters. It is equipped with a blade and rubber tracks.

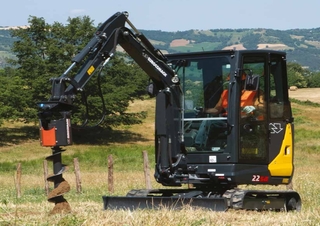

Mini Excavators Eurocomach 22sa
Mini Excavators Eurocomach 22sa
Mini Excavators Eurocomach 22sa
Mini Excavators Eurocomach 22sa

Technical specs - 22sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.19 t
Transport length
4.015 m
Transport width
0.99 m
Transport height
2.395 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
4.235 m
Dredging depth
2.56 m
Tear-out force
16 kN
Engine manuf.
Kubota
Engine type
D1105
Engine power
15.4 kW
Displacement
1.123 l
Revolutions at max torque
2400 rpm
Max. torque
70,3/1600 Nm
No. of cylinders
3
Cylinder bore x stroke
78x78,4 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 22sa FAQ

When was the Eurocomach 22sa manufactured?

The Eurocomach 22sa was manufactured from 2022 to 2023.

How much does the Eurocomach 22sa weigh?

The Eurocomach 22sa weighs 2.19 tons.

What are the transport dimensions of the Eurocomach 22sa mini excavator?

The Eurocomach 22sa has a transport length of 4.02 meters, a transport width of 0.99 meters, and a transport height of 2.4 meters.

What is the track width of the Eurocomach 22sa mini excavator?

The Eurocomach 22sa mini excavator has a track width of 230 mm.

What are the excavation specifications of the Eurocomach 22sa mini excavator?

The Eurocomach 22sa mini excavator has a dredging depth of 2.56 meters and a maximum horizontal reach of 4.235 meters.

What is the tear-out force of the Eurocomach 22sa mini excavator?

The Eurocomach 22sa mini excavator has a tear-out force of 16 kN.

What operator safety and support features does the Eurocomach 22sa have?

The Eurocomach 22sa has a cabin for driver protection.

How much is a Eurocomach 22sa Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 22sa depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
