19va Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 19va is a mini excavator manufactured since 2022, with a weight of 1.9 t. It features a track width of 230 mm, a transport l…

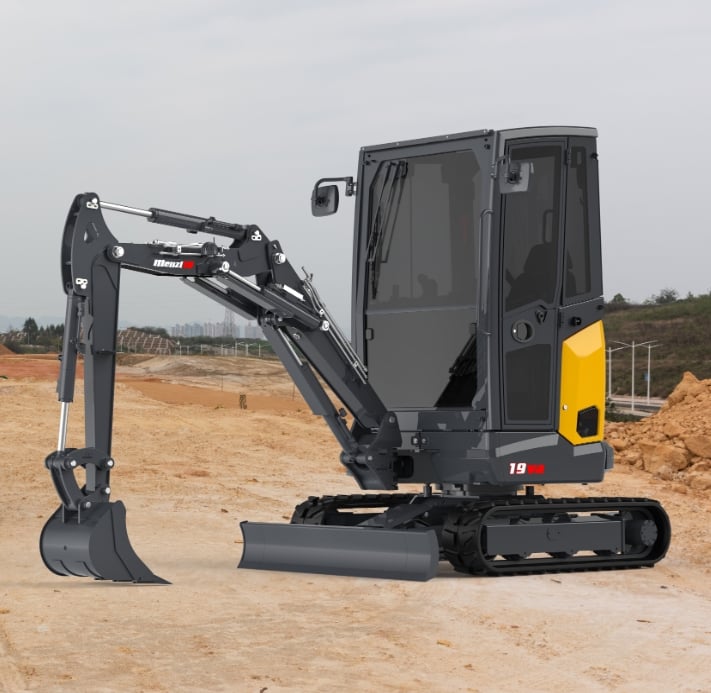

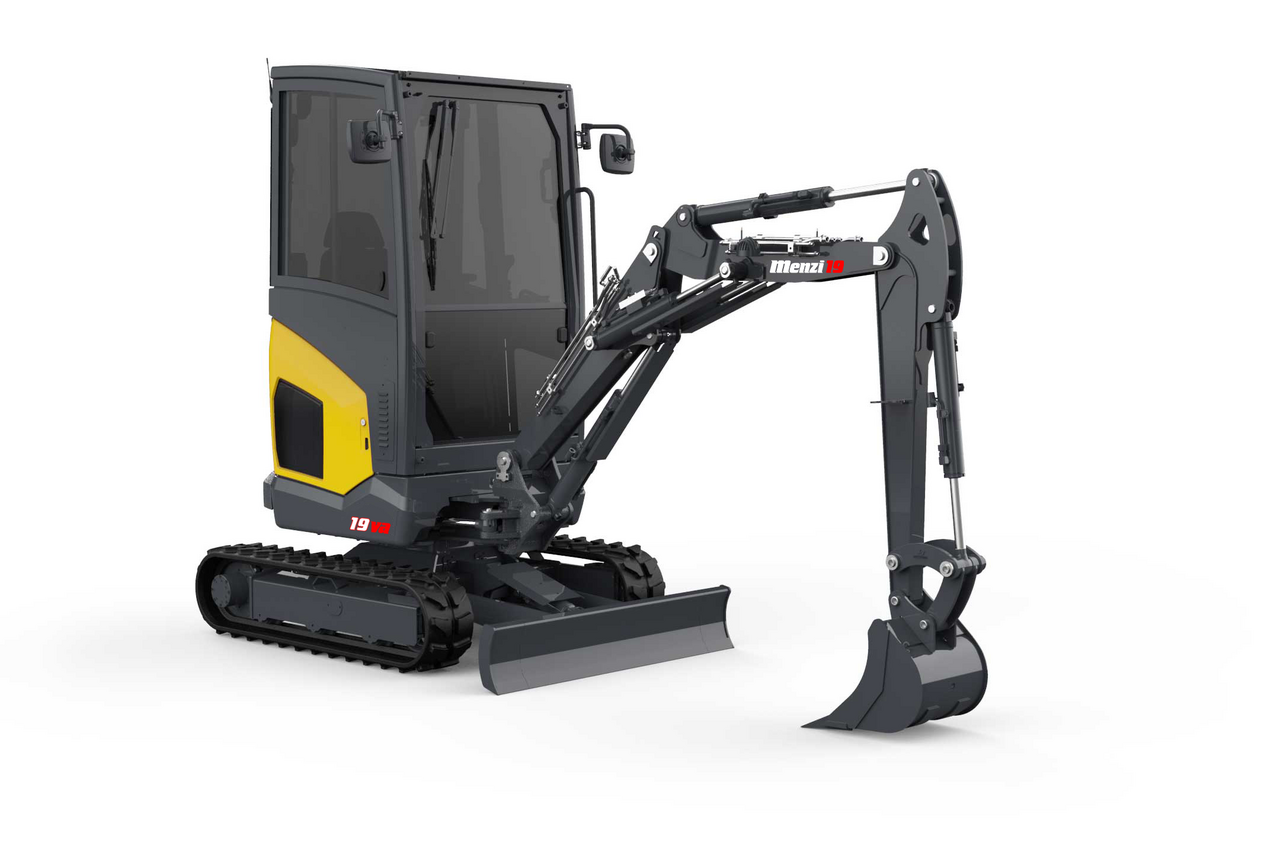

Menzi 19va is a mini excavator manufactured since 2022, with a weight of 1.9 t. It features a track width of 230 mm, a transport length of 3.76 m, a transport width of 0.99 m, and a transport height of 2.37 m. The machine has a tear-out force of 15 kN, a dredging depth of 2.38 m, and a maximum horizontal reach of 4.39 m. It comes equipped with a blade and rubber tracks.

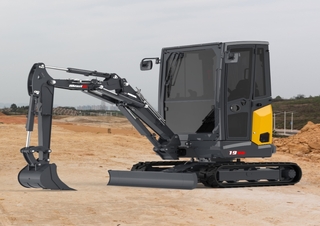

Mini Excavators Eurocomach 19va
Mini Excavators Eurocomach 19va
Mini Excavators Eurocomach 19va
Mini Excavators Eurocomach 19va

Technical specs - 19va Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.9 t
Transport length
3.76 m
Transport width
0.99 m
Transport height
2.37 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
4.39 m
Dredging depth
2.38 m
Tear-out force
15 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.7 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 19va FAQ

When was the Eurocomach 19va manufactured?

The Eurocomach 19va was manufactured from 2022 to 2023.

How much does the Eurocomach 19va mini excavator weigh?

The Eurocomach 19va mini excavator weighs 1.9 tons.

What are the transport dimensions of the Eurocomach 19va mini excavator?

The Eurocomach 19va has a transport length of 3.76 meters, a transport width of 0.99 meters, and a transport height of 2.37 meters.

What is the track width of the Eurocomach 19va mini excavator?

The Eurocomach 19va mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Eurocomach 19va mini excavator?

The Eurocomach 19va mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 4.39 meters.

What is the tear-out force of the Eurocomach 19va mini excavator?

The Eurocomach 19va mini excavator has a tear-out force of 15 kN.

What operator safety features does the Eurocomach 19va have?

The Eurocomach 19va has a canopy for driver protection.

How much is a Eurocomach 19va Mini excavator (2022u20132023) worth?

The residual value of the Eurocomach 19va depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
