17 SR Eurocomach excavator specs & dimensions (2022 - 2023)

Eurocomach 17 SR is a mini excavator manufactured since 2022, with a weight of 1.66 tons. It features a track width of 230 mm and …

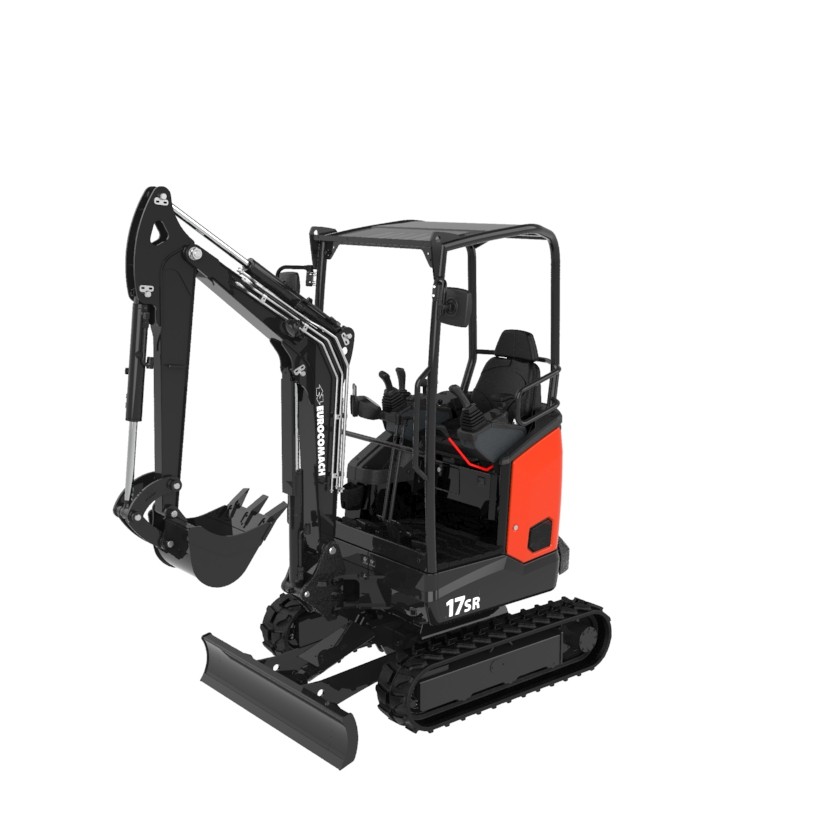

Eurocomach 17 SR is a mini excavator manufactured since 2022, with a weight of 1.66 tons. It features a track width of 230 mm and has transport dimensions of 3.76 meters in length, 0.99 meters in width, and 2.37 meters in height. The machine offers a tear-out force of 15 kN, a dredging depth of 2.2 meters, and a maximum horizontal reach of 3.82 meters. Special equipment includes a blade, hydraulic quick hitch, mechanical quick hitch, rubber track, and track adjustment.

Mini Excavators Eurocomach 17 SR

Technical specs - 17 SR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.66 t
Transport length
3.76 m
Transport width
0.99 m
Transport height
2.37 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.82 m
Dredging depth
2.2 m
Tear-out force
15 kN
Engine manuf.
Yanmar
Engine type
3TNV70
Engine power
12 kW
Displacement
0.854 l
Revolutions at max torque
2500 rpm
Max. torque
52.7 Nm
No. of cylinders
3
Emission level
EU V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

Eurocomach 17 SR FAQ

When was the Eurocomach 17 SR manufactured?

The Eurocomach 17 SR was manufactured from 2022 to 2023.

How much does the Eurocomach 17 SR weigh?

The Eurocomach 17 SR weighs 1.66 tons.

What are the transport dimensions of the Eurocomach 17 SR mini excavator?

The Eurocomach 17 SR has a transport length of 3.76 meters, a transport width of 0.99 meters, and a transport height of 2.37 meters.

What is the track width of the Eurocomach 17 SR mini excavator?

The Eurocomach 17 SR mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Eurocomach 17 SR?

The Eurocomach 17 SR has a dredging depth of 2.2 meters and a maximum horizontal reach of 3.82 meters.

What is the tear-out force of the Eurocomach 17 SR mini excavator?

The Eurocomach 17 SR mini excavator has a tear-out force of 15 kN.

What operator safety and support features does the Eurocomach 17 SR have?

The Eurocomach 17 SR is equipped with a canopy for driver protection.
