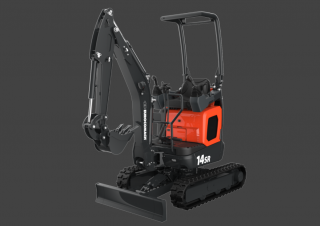

14 SR Eurocomach excavator specs & dimensions (2019 - 2023)

Eurocomach 14 SR is a mini excavator manufactured since 2019, with a weight of 1.23 tons. It features a track width of 180 mm, a t…

Eurocomach 14 SR is a mini excavator manufactured since 2019, with a weight of 1.23 tons. It features a track width of 180 mm, a transport length of 3.495 meters, a transport width of 0.79 meters, and a transport height of 2.3 meters. The machine has a tear-out force of 11.5 kN, a dredging depth of 2.045 meters, and a maximum horizontal reach of 3.645 meters. Special equipment includes a blade, quick hitch hydraulic, quick hitch mechanical, rubber track, and track adjustment.

14 SR

Years of manufacture: 2019—2023

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - 14 SR Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.23 t

Transport length: 3.495 m

Transport width: 0.79 m

Transport height: 2.3 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 3.645 m

Dredging depth: 2.045 m

Tear-out force: 11.5 kN

Model series: MME

Engine manuf.: Kubota

Engine type: D722

Engine power: 10.2 kW

Displacement: 0.719 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: Yes

Download datasheets (PDF)

Eurocomach 14 SR FAQ

When was the Eurocomach 14 SR manufactured?

The Eurocomach 14 SR was manufactured from 2019 to 2023.

How much does the Eurocomach 14 SR weigh?

The Eurocomach 14 SR weighs 1.23 tons.

What are the transport dimensions of the Eurocomach 14 SR mini excavator?

The Eurocomach 14 SR has a transport length of 3.5 meters, a transport width of 0.79 meters, and a transport height of 2.3 meters.

What is the track width of the Eurocomach 14 SR?

The Eurocomach 14 SR has a track width of 180 mm.

What are the excavation performance specifications of the Eurocomach 14 SR mini excavator?

The Eurocomach 14 SR mini excavator has a dredging depth of 2.045 meters and a maximum horizontal reach of 3.645 meters.

What are the power ratings of the Eurocomach 14 SR mini excavator?

The source data does not provide any power ratings for the Eurocomach 14 SR mini excavator.

What operator safety features does the Eurocomach 14 SR have?

The Eurocomach 14 SR is equipped with a roll-over bar for driver protection.

How much is a Eurocomach 14 SR Mini excavator (2019u20132023) worth?

The residual value of the Eurocomach 14 SR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
