12sa Eurocomach excavator specs & dimensions (2022 - 2023)

Menzi 12sa is a Mini Excavator manufactured since 2022, with a weight of 1.16 t and a track width of 180 mm. It has a transport le…

Menzi 12sa is a Mini Excavator manufactured since 2022, with a weight of 1.16 t and a track width of 180 mm. It has a transport length of 2.53 m, a transport width of 0.99 m, and a transport height of 2.26 m. The excavator features a tear-out force of 6.9 kN, a dredging depth of 1.86 m, and a maximum horizontal reach of 3.44 m. It is equipped with a blade as special equipment.

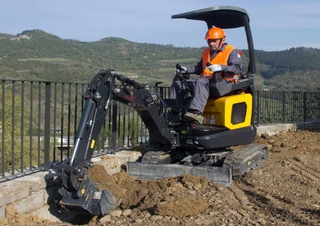

Mini Excavators Eurocomach 12sa
Mini Excavators Eurocomach 12sa
Mini Excavators Eurocomach 12sa
Mini Excavators Eurocomach 12sa

Technical specs - 12sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.16 t
Transport length
2.53 m
Transport width
0.99 m
Transport height
2.26 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
3.44 m
Dredging depth
1.86 m
Tear-out force
6.9 kN
Engine manuf.
Kubota
Engine type
D722
Engine power
10.2 kW
Displacement
0.719 l
Revolutions at max torque
2350 rpm
No. of cylinders
3
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 12sa FAQ

When was the Eurocomach 12sa manufactured?

The Eurocomach 12sa was manufactured from 2022 to 2023.

How much does the Eurocomach 12sa weigh?

The Eurocomach 12sa weighs 1.16 tons.

What are the transport dimensions of the Eurocomach 12sa mini excavator?

The Eurocomach 12sa has a transport length of 2.53 meters, a transport width of 0.99 meters, and a transport height of 2.26 meters.

What is the track width of the Eurocomach 12sa mini excavator?

The Eurocomach 12sa mini excavator has a track width of 180 mm.

What is the excavation performance of the Eurocomach 12sa mini excavator?

The Eurocomach 12sa mini excavator has a dredging depth of 1.86 meters and a maximum horizontal reach of 3.44 meters.

What is the tear-out force of the Eurocomach 12sa mini excavator?

The Eurocomach 12sa mini excavator has a tear-out force of 6.9 kN. No power rating data is available for this model.

What operator safety features does the Eurocomach 12sa have?

The Eurocomach 12sa is equipped with a roll-over bar for driver protection.
