12 ZT Eurocomach excavator specs & dimensions (2019 - 2023)

SPACE FOR SERVICES. The fuel tank is integrated into the rear ballast, a signature feature of Eurocomach excavators that makes access to other components incredibly easy.

The opening of the extremely spacious diesel tank and maintenance area are located under the seat. It is not only easier to control and clean, but also provides easy access to all thermal engine filters (diesel, oil and air) as well as coolant and engine oil fillers. According to recent regulations, the 12 ZT and 14 SR are equipped with an easy-to-reach compartment for the operator's manual, placed on a quickly opened and nearby hood. Battery and fuses are within a dedicated compartment at the side of the machine. INTEGRATED TANK The added value of the 12 ZT and 14 SR is the integrated diesel tank in the rear ballast that makes this machine unique in its class.

SAFETY, RELIABILITY AND PERFORMANCE The variable flow pump, standard of the 14 SR and optional on the 12 ZT always provides the right performance: more fluid movements and extreme reactivity to controls. R 32.3 in EFFECTION AND CONSUMPTION At the heart of the excavator is the efficient Kubota D722 - Stage 5 engine, designed and built to optimize power capability and reduce fuel consumption.The long-planned maintenance intervals contribute to economic efficiency reducing machine downtime costs.

- precise machine localization via web - anti-theft with alarm and SMS / e-mail notification - high water temperature or low engine oil pressure warning with SMS / e-mail notification - control of usage times with service interval

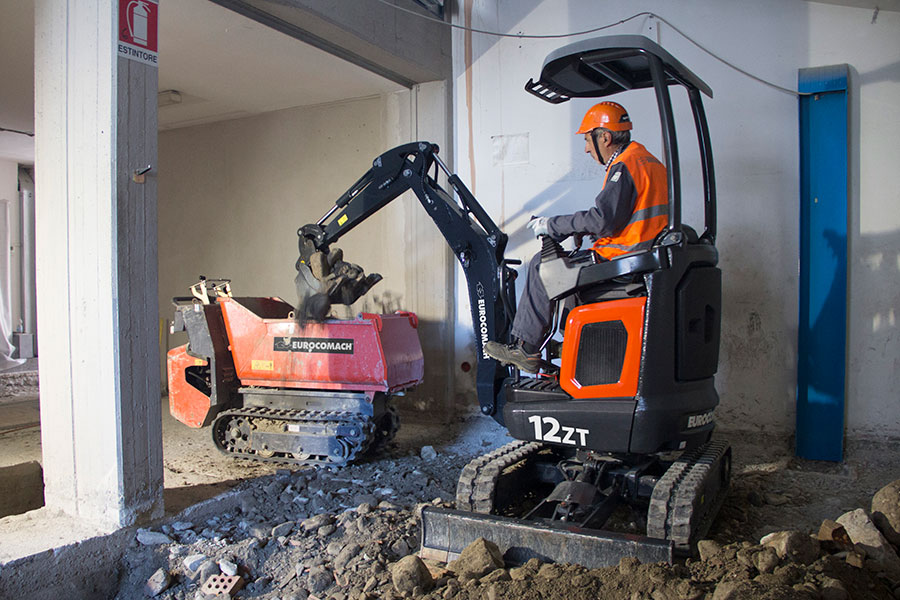

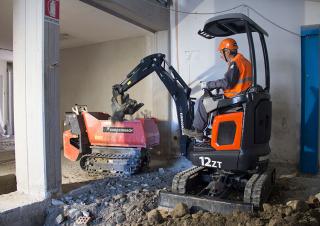

LIKE THE BIG ONES BUT SMALLER. Compact but incredibly stable, 12 ZT (zero tail swing with widened carriage) and 14 SR (reduced rear pivot radius) are designed for excellent performance in any place, especially indoors. The undercarriage and blade are very compact and thanks to the extendable wagon from 790 to 1,050 mm these machines can even pass through the narrowest passages. 790 mm 1050 mm

Travel position has been studied to provide the operator with maximum comfort: power-assisted controls, wrist rests and plenty of legroom.

EVERY COMMAND IS IN YOUR HANDS Working has never been so relaxing. Thanks to its careful design, the working position is not only spacious but also comfortable: The side joysticks with ergonomic wrist rests provide optimum manoeuvrability and reduce operator fatigue. Swing controls and auxiliary hydraulic system are controlled by precise and easy-to-use proportional electrohydraulic rollers on the joystick.

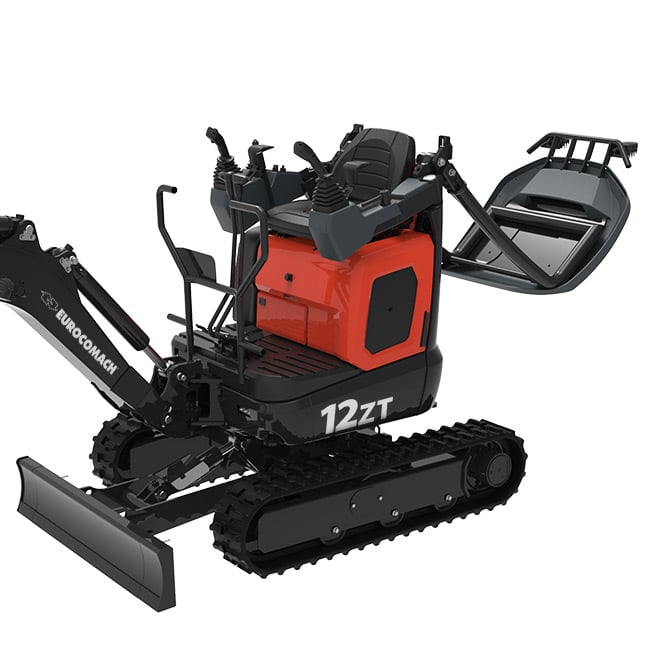

TRANSPORT TO ALL MAINTENANCE DOES NEVER SO EASY. Practically and quickly, the hinged seats allow access to operating parts in seconds and thanks to the mechanical locks, maintenance can be carried out in full safety. The side stick allows you to raise and close engine hood and seats extremely easily.

SAFETY Seatbelts and ROPS and TOPS-certified rollbar, as well as Stage 1 FOPS certified (if fitted with roof and guard grille) to ensure complete safety in the driving position even in case of an accident.
