10sa Eurocomach excavator specs & dimensions (2022 - 2023)

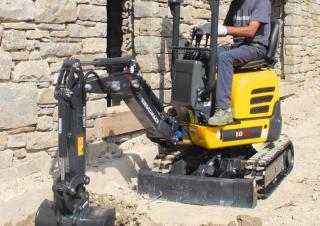

Menzi 10sa is a mini excavator manufactured since 2022, with a weight of 1.06 t. It features a track width of 180 mm, a transport …

Menzi 10sa is a mini excavator manufactured since 2022, with a weight of 1.06 t. It features a track width of 180 mm, a transport length of 2.785 m, a transport width of 0.99 m, and a transport height of 2.26 m. The machine has a tear-out force of 10.5 kN, a dredging depth of 1.62 m, and a maximum horizontal reach of 2.07 m. It is equipped with a blade as special equipment.

Mini Excavators Eurocomach 10sa

Technical specs - 10sa Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.06 t
Transport length
2.785 m
Transport width
0.99 m
Transport height
2.26 m
Track width
180 mm
Driver protection
Ü
Max. Reach horizontal
2.07 m
Dredging depth
1.62 m
Tear-out force
10.5 kN
Engine manuf.
Yanmar
Engine type
2TNV70
Engine power
7.6 kW
Displacement
0.57 l
Revolutions at max torque
2300 rpm
No. of cylinders
2
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Eurocomach 10sa FAQ

When was the Eurocomach 10sa manufactured?

The Eurocomach 10sa was manufactured from 2022 to 2023.

How much does the Eurocomach 10sa weigh?

The Eurocomach 10sa weighs 1.06 tons.

What are the transport dimensions of the Eurocomach 10sa mini excavator?

The Eurocomach 10sa has transport dimensions of 2.79 meters in length, 0.99 meters in width, and 2.26 meters in height.

What is the track width of the Eurocomach 10sa mini excavator?

The Eurocomach 10sa mini excavator has a track width of 180 mm.

What are the dredging depth and maximum horizontal reach of the Eurocomach 10sa mini excavator?

The Eurocomach 10sa mini excavator has a dredging depth of 1.62 meters and a maximum horizontal reach of 2.07 meters.

What is the tear-out force of the Eurocomach 10sa mini excavator?

The Eurocomach 10sa mini excavator has a tear-out force of 10.5 kN. No power rating data is provided for this model.

What operator safety features does the Eurocomach 10sa have?

The Eurocomach 10sa is equipped with a roll-over bar for driver protection.
