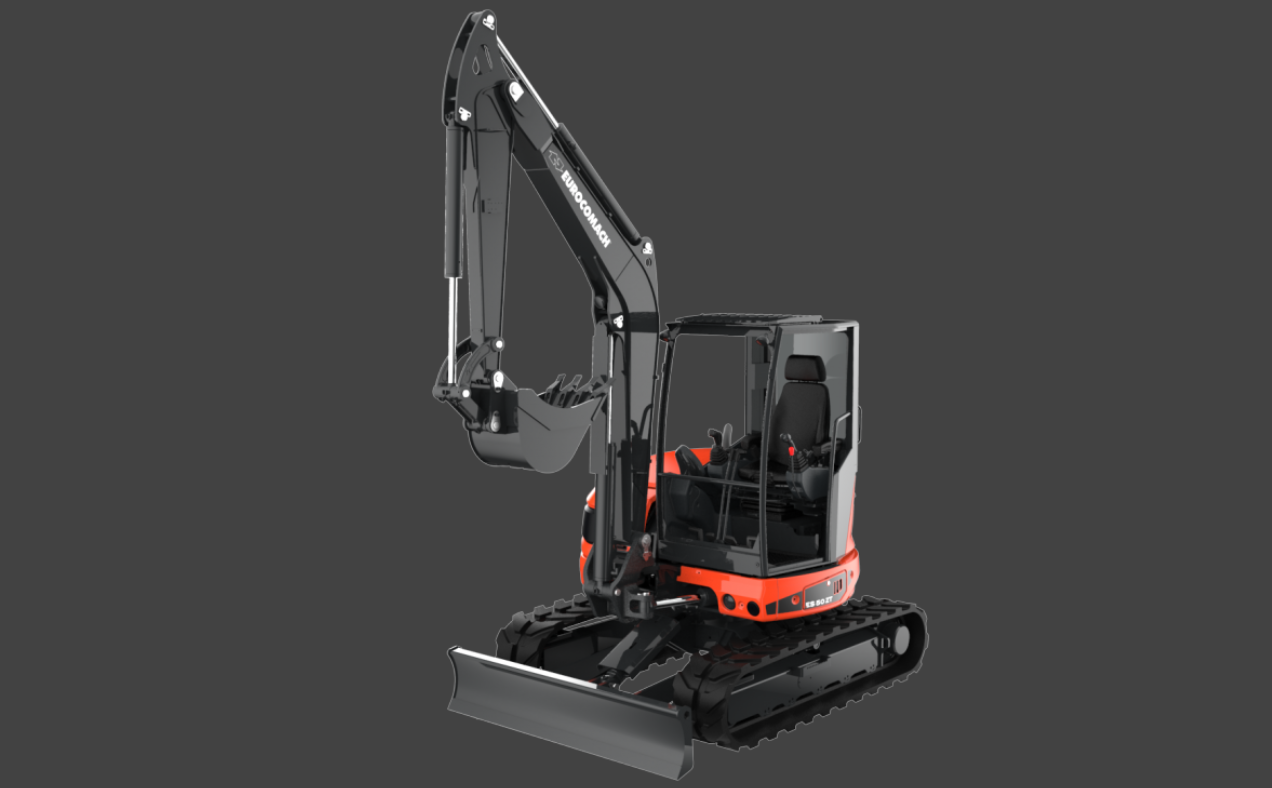

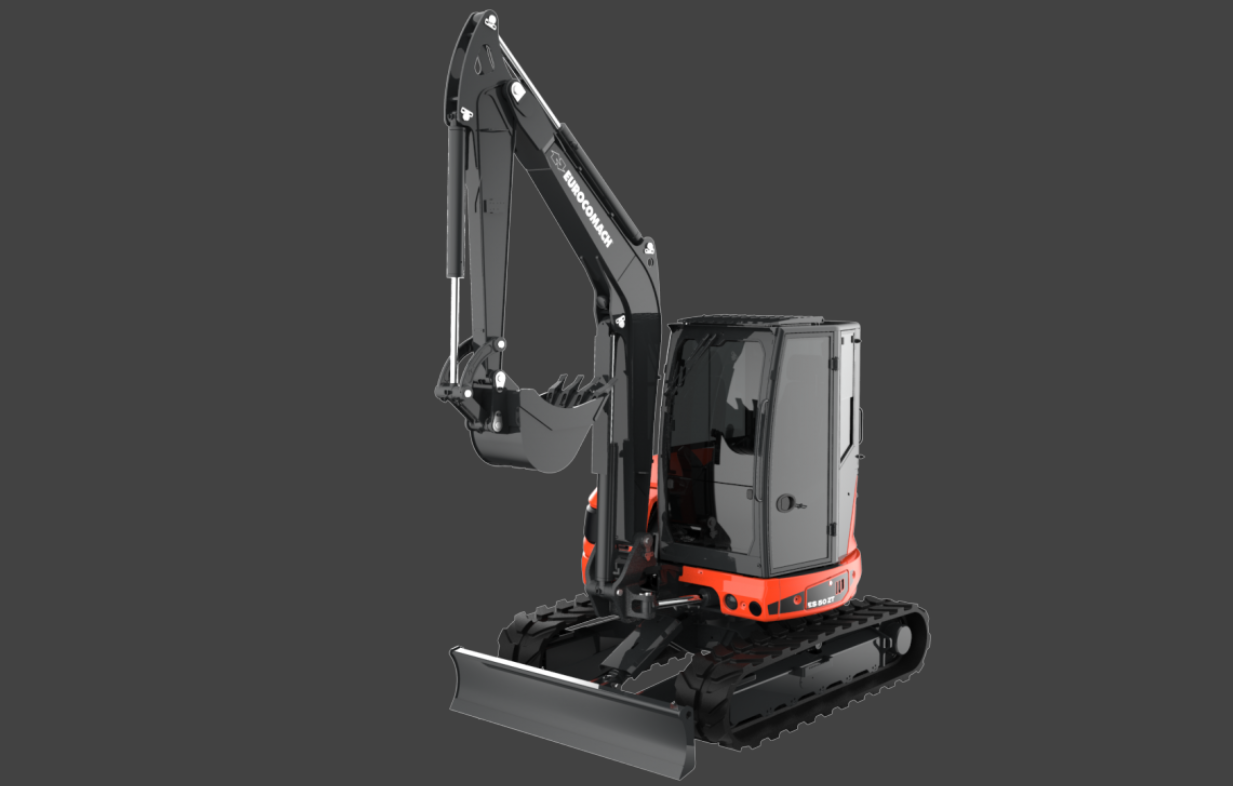

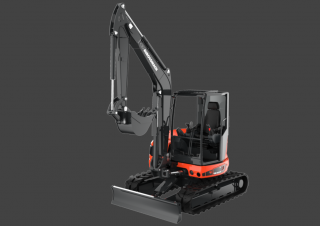

10 ZT Eurocomach excavator specs & dimensions (2019 - 2021)

Eurocomach 10 ZT is a Mini Excavator manufactured from 2019 to 2021, with a weight of 1.06 tons. It features a track width of 180 …

Eurocomach 10 ZT is a Mini Excavator manufactured from 2019 to 2021, with a weight of 1.06 tons. It features a track width of 180 mm, a transport length of 2.785 meters, a transport width of 0.76 meters, and a transport height of 2.26 meters. The machine has a tear-out force of 10.1 kN, a dredging depth of 1.62 meters, and a maximum horizontal reach of 3.315 meters. Special equipment includes a blade, rubber track, and track adjustment.

10 ZT

Years of manufacture: 2019—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 10 ZT Eurocomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.06 t

Transport length: 2.79 m

Transport width: 0.76 m

Transport height: 2.26 m

Track width: 180 mm

Driver protection: Ü

Max. Reach horizontal: 3.315 m

Dredging depth: 1.62 m

Tear-out force: 10.1 kN

Model series: MME

Engine manuf.: Yanmar

Engine type: 2TNV70

Engine power: 7.6 kW

Displacement: 0.57 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 2

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Eurocomach 10 ZT FAQ

When was the Eurocomach 10 ZT manufactured?

The Eurocomach 10 ZT was manufactured from 2019 to 2021.

How much does the Eurocomach 10 ZT weigh?

The Eurocomach 10 ZT weighs 1.06 tons.

What are the transport dimensions of the Eurocomach 10 ZT mini excavator?

The Eurocomach 10 ZT has a transport length of 2.79 meters, a transport width of 0.76 meters, and a transport height of 2.26 meters.

What is the track width of the Eurocomach 10 ZT's undercarriage?

The Eurocomach 10 ZT has a track width of 180 mm.

What are the excavation performance specifications of the Eurocomach 10 ZT mini excavator?

The Eurocomach 10 ZT mini excavator has a dredging depth of 1.62 meters and a maximum horizontal reach of 3.315 meters.

What is the tear-out force of the Eurocomach 10 ZT mini excavator, given that no power rating data is available?

The Eurocomach 10 ZT mini excavator has a tear-out force of 10.1 kN. No power rating data is provided in the source.

What operator safety features does the Eurocomach 10 ZT have?

The Eurocomach 10 ZT is equipped with a roll-over bar for driver protection.

How much is a Eurocomach 10 ZT Mini excavator (2019u20132021) worth?

The residual value of the Eurocomach 10 ZT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Eurocomach 10 ZT overview

Dimensions and weight

Battery	V (Ah)	12 (45)
HYDRAULIC SYSTEM
Pump type	n°2 gear pumps
Pump displacement	cc	4	8 + 4	8"
Pump capacity	lt/min	23
Max. circuit calibration pressure	bar	170
Auxiliary system: Max capacity	lt/min	23
Max pressure	bar	180
PERFORMANCES
Max digging depth standard arm (optional arm)	mm	1.620 (1.770)
Max dumping height standard arm (optional arm)	mm	2.070 (2.180)
Bucket breaking force (standard arm) ISO 6015	daN	1.010
Arm breaking force (standard arm) ISO 6015	daN	752
Traction force	daN	1.050
Ground bearing pressure with folding bar (with canopy)	kg/cm2		0	32 (0	32)"
Max slope			60% - 30°
DIMENSIONS
Maximum width	mm	760 - 990
Total height	mm		2.260
Rear rotation radius	mm	500
Digging arm length std (optional)	mm		750 (900)
Tracks width	mm		180
Rollers number (for each side)	n°		2
FILLINGS
Fuel tank	lt		9	5"
Hydraulic oil tank	lt		9	5"
Hydraulic circuit capacity	lt		15
Cooling system capacity	lt		5
Engine oil	lt		1	5"
CONTROLS
Boom	dipper stick	bucket and turret swing"			2 levers
Track movements (included counter rotation)	2 levers
Dozer blade	mechanical lever
Auxiliary circuit (simple or double effect)	left pedal

Tables

	1	5"	2	2	5"	MAX
Frontal and lowered dozer blade	335	235	200	175
Frontal and lifted dozer blade	290	175	125	105
Lateral	open undercarriage"	335	190	115	90

Cooling		water
Consumption	lt/h	1	6"
Alternator	V (A)	12 (40)

Type	YANMAR 2TNV70 - STAGE 5
Max Power (2.300 rpm)	kW - HP	7	6 - 10	0"
Displacement	cc	570
Number of cylinders	n°	2
