Solar 015 Plus Doosan excavator specs & dimensions (2002 - 2008)

Model rating: 7,67 / 10

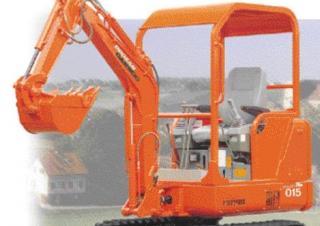

Doosan Solar 015 Plus is a mini excavator manufactured from 2002 to 2008, with a weight of 1.57 tons. It features a track width of…

Doosan Solar 015 Plus is a mini excavator manufactured from 2002 to 2008, with a weight of 1.57 tons. It features a track width of 230 mm, a transport length of 3.67 meters, a transport width of 1.3 meters, and a transport height of 2.39 meters. The machine has a dredging depth of 2.385 meters, a bucket width of 0.426 meters, and a maximum bucket capacity of 0.042 cubic meters. It is equipped with a blade and rubber tracks.

Solar 015 Plus

Years of manufacture: 2002—2008

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Solar 015 Plus Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.57 t

Transport length: 3.67 m

Transport width: 1.3 m

Transport height: 2.39 m

Bucket capacity max.: 0.042 m³

Bucket width: 0.426 m

Track width: 230 mm

Driver protection: Kb

Max. Reach horizontal: 3.92 m

Dredging depth: 2.385 m

Tear-out force: 12.7 kN

Model series: Solar

Engine manuf.: Mitsubishi

Engine type: L 3 E

Engine power: 12.7 kW

Displacement: 0.952 l

Revolutions at max torque: 2100 rpm

More technical details, like: bucket capacity, bucket capacity min., standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Solar 015 Plus Doosan Specification for Europe (EN)

Doosan Solar 015 Plus FAQ

When was the Doosan Solar 015 Plus manufactured?

The Doosan Solar 015 Plus was manufactured from 2002 to 2008.

How much does the Doosan Solar 015 Plus weigh?

The Doosan Solar 015 Plus weighs 1.57 tons.

What are the transport dimensions of the Doosan Solar 015 Plus mini excavator?

The Doosan Solar 015 Plus has a transport length of 3.67 meters, a transport width of 1.3 meters, and a transport height of 2.39 meters.

What is the track width of the Doosan Solar 015 Plus mini excavator?

The Doosan Solar 015 Plus mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Doosan Solar 015 Plus mini excavator?

The Doosan Solar 015 Plus mini excavator has a dredging depth of 2.385 meters and a maximum horizontal reach of 3.92 meters.

What is the tear-out force of the Doosan Solar 015 Plus?

The Doosan Solar 015 Plus has a tear-out force of 12.7 kN.

What are the bucket specifications of the Doosan Solar 015 Plus mini excavator?

The Doosan Solar 015 Plus mini excavator has a maximum bucket capacity of 0.04 cubic meters and a bucket width of 0.426 meters.

What operator safety feature does the Doosan Solar 015 Plus have?

The Doosan Solar 015 Plus has a cabin for driver protection.

How much is a Doosan Solar 015 Plus Mini excavator (2002u20132008) worth?

The residual value of the Doosan Solar 015 Plus depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan Solar 015 Plus overview

Dimensions and weight

MODEL	UNIT	SOLAR 015 Plus
CANOPY	CABIN
Operating weight(Rubber shoe model),kg (lb),"1,490 (3,285)	1,580 (3,483)"
Bucket
Capacity	PCSA	m3 (cu.yd)	0.042	(0.055)
Width(with cutter/without cutter),mm (ft.in),"452 (1'6"")	/ 426 (1'5"")"
Dimension
Length xWidth x Height,mm (ft.in),"3,755x1,000(1,300)x2,307	3,755x1,000(1,300)x2,247"
(12'4""x3'3""(4'3"")x7'7"")	(12'4""x3'3""(4'3"")x7'4"")"
Engine
Model			L3E
Displacement(Total dis. volume)	cc (gal)	952	(0.252)
Rated power/R. P. M.,ps/rpm(kW/rpm),"17.2/ 2,300 (	12.5/ 2,300)"
Combustion chamber type		Swirl	Type
Working Range
(A) Max. digging depth	mm (f t.in)	2	140 (7')"
(B) Max. cutting height	mm (ft.in)	3	400 (11'2"")"
(C) Max. dumping height,mm (ft.in),"2,245	(7'4"")"
(D) Max. digging radius,mm (ft.in),"3,700	(12'2"")"
Rear-and swing radius,,mm (ft.in),"1,190	(3'11"")"
Boom swing angle (L/R)		degree	75/ 50
Performance
Max.digging force	Bucket	kgf (lb)	1	270 (2	800)"
(SAE)	Arm	kgf (lb)	850 (1	874)"
Traveling speed		km/h (m/h)	2.0 / 3.8	(1.2 / 2.4)
Traction force		ton	1.5 /	0.75
Swing speed		rpm	11
Max. swing torque		kgf.m	238
Hydraulics
Pump	Type		Axial piston
Max. flow rate		L /min(g/min)	2 16 10.5 (2 4.2 2.8) ×
Main relief set pressure		kg/cm2 (psi)	210/ 165	(3	320/ 2	608)"
Track
Dozer blade(Length × Height)	mm (ft.in)	235 1	000(1	300) (9"" 3'3""(4'3"")) ×"
Shoe width		mm (ft.in)	230 (9"")"
Tumbler distance	mm (ft.in)	1	224 (4')"
Control
Lever control type		Pilot & manul control
Lever pattern			ISO
Tank

Other features

Comfortable Operation
The operator seat is designed to support the operator firmly and comfortably.
