DX27Z-7 Doosan excavator specs & dimensions (2021 - 2023)

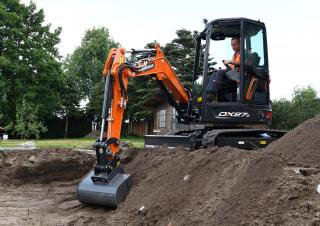

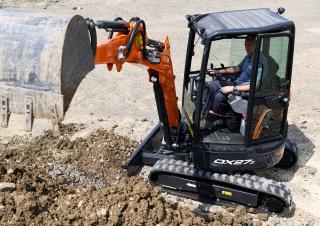

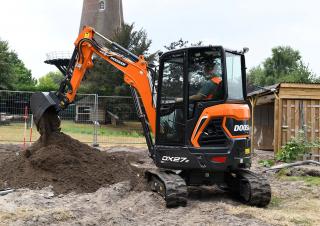

Doosan DX27Z-7 is a Mini Excavator manufactured since 2021, with a weight of 2.705 t. It features a track width of 300 mm, a trans…

Doosan DX27Z-7 is a Mini Excavator manufactured since 2021, with a weight of 2.705 t. It features a track width of 300 mm, a transport length of 4.06 m, a transport width of 1.44 m, and a transport height of 2.445 m. The machine has a tear-out force of 16.2 kN, a dredging depth of 2.547 m, and a maximum horizontal reach of 4.644 m. The bucket capacity is a minimum of 0.08 m³. Special equipment includes a blade and rubber track.

DX27Z-7

Years of manufacture: 2021—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - DX27Z-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.71 t

Transport length: 4.06 m

Transport width: 1.44 m

Transport height: 2.45 m

Bucket capacity min.: 0.08 m³

Track width: 300 mm

Driver protection: Kb

Max. Reach horizontal: 4.644 m

Dredging depth: 2.547 m

Tear-out force: 16.2 kN

Model series: DX

Engine manuf.: Kubota

Engine type: D1105-EF07

Engine power: 15.4 kW

Displacement: 1.123 l

Revolutions at max torque: 2400 rpm

Max. torque: 71.2 Nm

No. of cylinders: 3

Emission level: V

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Doosan DX27Z-7 FAQ

When was the Doosan DX27Z-7 manufactured?

The Doosan DX27Z-7 was manufactured from 2021 to 2023.

How much does the Doosan DX27Z-7 mini excavator weigh?

The Doosan DX27Z-7 mini excavator weighs 2.71 tons.

What are the transport dimensions of the Doosan DX27Z-7 mini excavator?

The Doosan DX27Z-7 has a transport length of 4.06 meters, a transport width of 1.44 meters, and a transport height of 2.45 meters.

What is the track width of the Doosan DX27Z-7 mini excavator's undercarriage?

The Doosan DX27Z-7 mini excavator has a track width of 300 mm.

What are the excavation performance specifications of the Doosan DX27Z-7 mini excavator?

The Doosan DX27Z-7 mini excavator has a dredging depth of 2.547 meters and a maximum horizontal reach of 4.644 meters.

What is the tear-out force of the Doosan DX27Z-7 mini excavator?

The Doosan DX27Z-7 mini excavator has a tear-out force of 16.2 kN.

What is the minimum bucket capacity of the Doosan DX27Z-7 mini excavator?

The minimum bucket capacity of the Doosan DX27Z-7 mini excavator is 0.08 cubic meters.

What driver protection features does the Doosan DX27Z-7 have?

The Doosan DX27Z-7 has a cabin for driver protection.

How much is a Doosan DX27Z-7 Mini excavator (2021u20132023) worth?

The residual value of the Doosan DX27Z-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX27Z-7 overview

Hydraulics

Hydraulic system
2 Adjustable Piston Pumps + 2 Gear Pumps Breaker piping with direct return to tank 2-way High Flow auxiliary line with settings from the display panel Cylinder dampening & contamination seals Rotation Line (Pero) Quick Coupler Series

Tyres / Tracks

Undercarriage
Fixed undercarriage Hydraulic track adjuster 300 mm Rubber tracks Dozer blade Greased and sealed track connections

Dimensions and weight

PRINTING	DX27Z-7	DX35Z-7
Maximum power	18.4 kW	18.4 kW
Operating weight	2798 kg	3995 kg
Bucket capacity	0.06 m3	0.11 m3
Emission standard	Stage V	Stage V

	Length (mm)	Weight (kg)	Digging forces (ISO) (ton)
Std. boom	2090	96.5	–
Std. arm	1300	55	1.30
Short arm	1100	47	1.45

NOT	Machine weight (kg)	Ground pressure (kgf/cm²)
300 mm rubber shoes	2798	0.28

	Length (mm)	Weight (kg)	Digging forces (ISO) (ton)
Std. boom	2535	136	–
Std. arm	1500	81.5	1.95
Short arm	1330	74.3	2.12

NOT	Machine weight (kg)	Ground pressure (kgf/cm²)
300 mm rubber shoes	3995	0.36

	Capacity (SAE) (m³)	Width (mm)	Weight (kg)
With side cutters	W/O side cutters
DX27Z-7	STD	0.08	476	450	58.5
OPT	0.06	398	372	46
DX35Z-7	STD	0.11	576	550	85

	Unit	DX27Z-7	PRINTING DX35Z-7
Front	–	Cab	Canopy	Cab
Counterweight	–	Additional	–	Additional	–
FOR Boom length	mm	2090	2535
Arm length	mm	1300	1100	1500	1330
Bucket capacity (ISO)		m³		0.06	0.11
Undercarriage / Shoe		–	STD / Rubber	STD / Rubber
L1	Overall length		mm	4191	4186	4777	4760
H1	Overall height	Boom	mm	1688		1556	1679	1589
Cab	mm		2448	2479
W1	Overall width		mm		1550		1700
R1	NOT Rear swing radius		mm	855	790		945	875
H2	Ground clearance		mm	217		235
L2	Rear end distance		mm	855		790		945	875
W2	House width		mm					1500
W3	Cab width		mm	1062
H3	Height over cover	mm		1471		1508
H4	Counterweight clearance	mm		512		537
A1/A2	Boom swing angle (left/right)	mm		66.5	/ 53.5
H5	Track height	mm	451		475.5
L3	Track length	mm	1960		2121
L4	Tumbler distance	mm	1540		1700
W4	Track gauge	mm	1250		1400
W5	Undercarriage width	mm	1550		1700
W6	Shoe width	mm			300
H6	Dozer digging depth	mm	335		429
H8	Dozer lift clearance	mm	383		410
H9	Dozer blade height	mm	259		380
L8	Distance to dozer end	mm	1450		1605

FOR	Unit	DX27Z-7	DX35Z-7
Boom length	mm	2090	2535
Arm length	mm	1300	1100	1500	1330
Bucket capacity (SAE)	m³	0.06		0.11
A	Max. digging reach	mm	4845	4655	5515	5355
B	Max. digging reach (ground)	mm	4720	4520	5400	5235
C	Max. digging depth	mm	2845	2645	3445	3275
D	Max. dumping height	mm	3065	2935	3700	3580
E	Min. swing radius	mm	2095	2045	2145	2115
F	Max. digging height	mm	4515	4385	5215	5095
G	Max. bucket pin height	mm	3795	3665	4460	4345
H	Max. vertical wall depth	mm	1690	1565	2045	1980
I	NOT Max. radius vertical	mm	3815	3670	4350	4215

Other features

Cab & interior
4-pillar cab with 5.7 inch digtalm gauge panel for DX27Z-7 Printed, sound-only heated cabin for DX35Z-7 Mechanical suspension seat Drawable front window and removable underfront window Sliding right windows with lock Ceiling light Intermittent windscreen wipers (not for DX27Z-7 canopy) Multiple storage compartments Flat, spacious, easy to clean Ground Cup holder Antitheft protection 5.7 inch Digtal Gauge Panel Electric horn Engine speed (RPM) control clock Hydrostatic 2-speed travel system with manual or automatic switch DAB Radio with handsfree intercom USB charger & 12 V Power socket Serial communication port for laptop PC Interface Adjustable PPC for arm, boom, bucket and shovel, with sliding proportional Control for attachments and auxiliary hydraulic knob Travel pedals and hand lever Master key Actuated, sound-installed heated Cab for DX27Z-7 Air conditioning possibility for the Canopy DX27/35/35.

Tables

Cylinders	Quantity	Bore × rod diameter × stroke (mm)
Boom	1	70 × 40 × 575
Arm	1	70 × 40 × 506
Bucket	1	65 × 35 × 435
Dozer	1	85 × 40 × 129
Boom swing	1	80 × 45 × 643

Variable axial pistons pumps	2 × 28.8 l/min
PRINTING Gear pump Pilot pump	1 × 19.2 l/min

Gear pump Maximum flow at 2400 rpm

10.8 l/min

Relief valve settings
Implement	220 kgf/cm²
Travel	220 kgf/cm²
Swing	170 kgf/cm²
FOR Pilot	23 kgf/cm²

Fuel tank	43 l
Cooling system (radiator)	4.8 l
Hydraulic oil tank	38 l
Engine oil	5.8 l
PRINTING Travel device	2 × 0.9 l

Cylinders	Quantity	Bore × rod diameter × stroke (mm)
Boom	1	85 × 50 × 633
Arm	1	80 × 55 × 726
Bucket	1	70 × 45 × 600
Dozer	1	110 × 60 × 197
Boom swing	1	95 × 60 × 449

	Boom (m)	Arm (m)	Arm tearout force (kN)	Arm tearout force (kg)
DX27Z-7	2.09	1.3	12.7	1300
1.1	14.2	1450
DX35Z-7	FOR 2.54	1.5	19.1	1950
1.33	20.8	2120

	Capacity (SAE) (m³)	Bucket breakout force (kN)	Bucket breakout force (kg)
NOT DX27Z-7	0.08	21.8	2220
0.06	21.8	2220
DX35Z-7	0.11	31.8	3240

Item	DX27Z-7	DX35Z-7	PRINTING Remarks
STD	OPT	STD OPT
Upper structure without front (cab/canopy)	1448	1528	1603	Without counterweight
Counterweight	146			630
Additional counterweight	60			100
Lower structure assembly	886		1117	Rubber
Front assembly	316	369	492	499
Boom assembly		96			145
Arm assembly	53	54	100	107
Bucket	49.6	58		86
Boom cylinder	22		22.5	30
Arm cylinder	21	21.5	31.5
Bucket cylinder		15.7	24
Dozer		92	184
Dozer cylinder		16	16
