DX 15 Doosan excavator specs & dimensions (2009 - 2012)

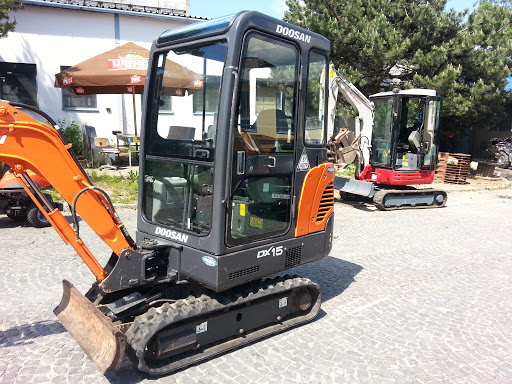

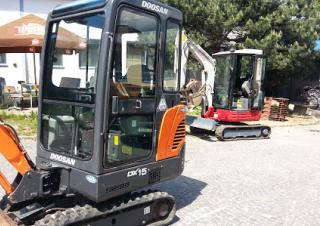

Doosan DX 15 is a mini excavator manufactured from 2009 to 2012, with a weight of 1.57 tons. It features a track width of 230 mm, …

Doosan DX 15 is a mini excavator manufactured from 2009 to 2012, with a weight of 1.57 tons. It features a track width of 230 mm, a transport length of 3.67 meters, a transport width of 1.3 meters, and a transport height of 2.39 meters. The bucket capacity is a minimum of 0.04 cubic meters. Special equipment includes a blade and rubber track.

Mini Excavators Doosan DX 15

Technical specs - DX 15 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.57 t
Transport length
3.67 m
Transport width
1.3 m
Transport height
2.39 m
Bucket capacity min.
0.04 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.92 m
Dredging depth
2.38 m
Model series
DX
Engine manuf.
Mitsubishi
Engine type
L 3 E
Engine power
13 kW
Displacement
0.952 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, tear-out force, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX 15 FAQ

When was the Doosan DX 15 manufactured?

The Doosan DX 15 was manufactured from 2009 to 2012.

What is the weight of the Doosan DX 15 mini excavator?

The Doosan DX 15 mini excavator weighs 1.57 tons.

What are the transport dimensions of the Doosan DX 15 mini excavator?

The Doosan DX 15 mini excavator has a transport length of 3.67 meters, a transport width of 1.3 meters, and a transport height of 2.39 meters.

What is the track width of the Doosan DX 15 mini excavator?

The Doosan DX 15 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Doosan DX 15 mini excavator?

The Doosan DX 15 mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 3.92 meters.

What is the minimum bucket capacity of the Doosan DX 15 mini excavator?

The minimum bucket capacity of the Doosan DX 15 is 0.04 cubic meters.

What operator safety features does the Doosan DX 15 have?

The Doosan DX 15 has a cabin for driver protection.

How much is a Doosan DX 15 Mini excavator (2009u20132012) worth?

The residual value of the Doosan DX 15 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Doosan DX 15 overview

Dimensions and weight

DX15DX18
AOverall lengthmm3.7503.750
BTumbler distancemm1.2241.230
CTrack lengthmm1.5801.586
DTrack to dozer lengthmm1.7601.915
ETrack heightmm360360
FTrack gaugemm770750 ~ 1.070
HShoe widthmm230230
IGround clearancemm155165
JBody widthmm980980
KOverall widthmm1.000980 ~ 1.300
LDozer widthmm1.000980 ~ 1.300
MDozer heightmm235235
NOverall height (Cabin)mm2.3002.345
(Canopy)mm2.3452.390
OOverall height (Boom)mm1.1201.135
1.690 8500045 DX15"DX18
Operating weight (Cabin)1.680 kg1.810 kg
Operating weight (Canopy)1.590 kg1.720 kg
Ground pressure (Cabin) Ground pressure (Canopy),"0,27 kgf/cm2 0,26 kgf/cm20,29 kgf/cm2 0,28 kgf/cm2"
✱ Refill capacities
Fuel tank19 l
Cooling system (radiator capacity)18 l"
Engine oil41 l"
Final drive (each)033 l"
Hydraulic tank26 l

Tables

DX15DX18
Boom typemm1.6901.690
Arm typemm8501.1008501.100
Bucket type (SAE),m3,"0,0450,0450,0450,045"
A Max. digging reachmm3.7003.9203.7003.920
C Max. digging depthmm2.1402.3852.0752.325
D Max. loading heightmm2.2452.4202.3102.485
F Max. digging heightmm3.4003.5603.4653.625
H Max. vertical wall depthmm1.6301.8451.5651.780
I Min. swing radiusmm1.5001.6701.5001.670
Arm850 mm1.100 mm
Digging force,"830 kgf / 8,14 kN680 kgf / 6,67 kN"
A (m) B (m)225"3Max. reach
Dozer upDozer downDozer upDozer downDozer upDozer downDozer upDozer down
A (m)A (m)
2,5*0,28*0,28",,,,,"*0,25*0,25",,,,,"*0,30*0,302,28*0,26*0,262,62"
2,"*0,28*0,28",,,"*0,29*0,29*0,24*0,24",,,,,"*0,30*0,302,70*0,26*0,262,98"
1,5*0,36*0,36*0,29*0,29*0,31*0,31*0,27*0,27",,,"*0,26*0,26*0,30*0,302,95*0,26*0,263,20"
1,"*0,47*0,47*0,40*0,40*0,36*0,36*0,32*0,32*0,310,31*0,28*0,28*0,310,303,07*0,270,273,31"
0,5*0,560,54*0,52*0,52*0,400,40*0,38*0,38*0,320,30*0,310,31*0,310,293,09*0,280,263,32"
0 (ground),"*0,600,54*0,590,54*0,430,39*0,420,39",,,"*0,330,30*0,320,303,00*0,290,273,24"
-0,5*0,580,54*0,600,54*0,410,39*0,430,39",,,"*0,320,30*0,340,302,80*0,300,293,06"
-1,"*0,49*0,49*0,550,54",,,"*0,39*0,39",,,,,"*0,34*0,342,44*0,31*0,312,75"
-1,5",,,"*0,41*0,41",,,,,,,,,"*0,31*0,311,80*0,31*0,312,24"
A (m) B (m)225"3Max. reach
Dozer upDozer downDozer upDozer downDozer upDozer downDozer upDozer down
A (m)A (m)
3,,,,,,,,,,,,,"*0,27*0,272,10*0,27*0,272,10"
2,5",,,,,"*0,24*0,24*0,24*0,24",,,,,"*0,26*0,262,67*0,26*0,262,67"
2,,,,,"*0,24*0,24*0,24*0,24*0,26*0,26*0,26*0,26*0,26*0,263,01*0,26*0,263,01"
1,5*0,30*0,30*0,30*0,30*0,28*0,28*0,28*0,28*0,26*0,26*0,26*0,26*0,260,243,22*0,260,243,22"
1,"*0,42*0,42*0,42*0,42*0,33*0,33*0,33*0,33*0,290,27*0,290,27*0,270,233,32*0,270,233,32"
0,5*0,530,47*0,530,47*0,390,35*0,390,35*0,310,27*0,310,270,280,233,320,280,233,32"
0 (Ground),"0,570,470,570,470,410,340,410,340,320,260,320,260,290,243,230,290,243,23"
-0,50,570,470,570,470,410,340,410,34*0,310,26*0,310,26*0,300,263,03*0,300,263,03"
-1,"*0,540,47*0,540,47*0,370,34*0,370,34",,,,,"*0,310,312,70*0,310,312,70"
-1,5*0,37*0,37*0,37*0,37",,,,,,,,,"*0,31*0,312,15*0,31*0,312,15"
