DX42-7 Develon excavator specs & dimensions (2024 - 2026)

Weight: 4.48t – Transport length: 4.967m – Transport width: 1.75m – Transport height: 2.506m – Bucket capacity: 0.14m³ – Bucket ca…

Weight: 4.48t – Transport length: 4.967m – Transport width: 1.75m – Transport height: 2.506m – Bucket capacity: 0.14m³ – Bucket capacity min.: 0.07m³

Check out detailed specifications, information and technical data for Develon DX42-7 excavator manufactured between 2024 - 2026. Get more in-depth insight with Develon DX42-7 digger specifications. See information, like: Weight: 4.48t – Transport length: 4.967m – Transport width: 1.75m – Transport height: 2.506m – Bucket capacity: 0.14m³ – Bucket capacity min.: 0.07m³ and more.

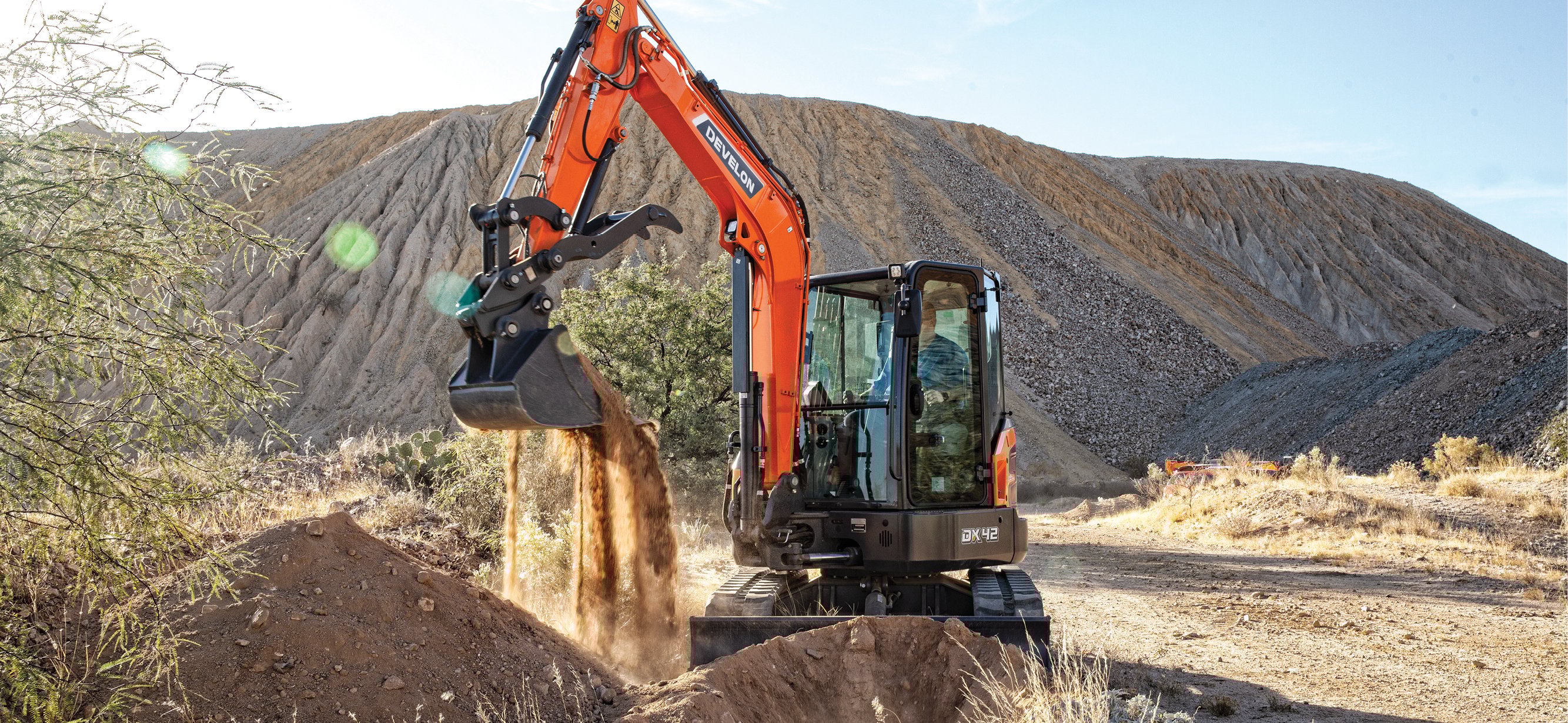

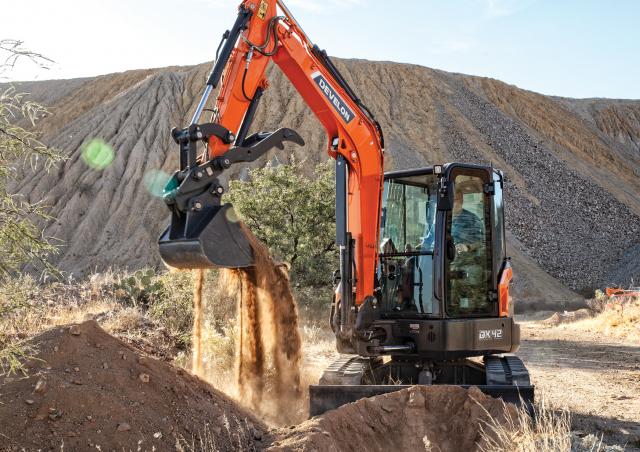

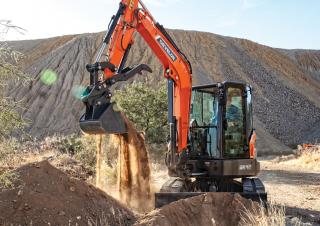

Mini Excavators Develon DX42-7

Visit Develon live at

Technical specs - DX42-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.48 t
Transport length
4.967 m
Transport width
1.75 m
Transport height
2.506 m
Bucket capacity
0.14 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.24 m³
Bucket width
0.787 m
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
5.44 m
Dredging depth
3.49 m
Model series
DX
Engine manuf.
Develon
Engine type
D18
Engine power
36.4 kW
Displacement
2.4 l
Revolutions at max torque
1600 rpm
Max. torque
180 Nm
No. of cylinders
3
Cylinder bore x stroke
90x94 mm

More technical details, like: standard tyres, tear-out force, dimension lxwxh, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No
