DX25Z-7 Develon excavator specs & dimensions (2025 - 2026)

Weight: 2.685t – Transport length: 4.15m – Transport width: 1.55m – Transport height: 2.452m – Bucket capacity: 0.07m³ – Bucket ca…

Weight: 2.685t – Transport length: 4.15m – Transport width: 1.55m – Transport height: 2.452m – Bucket capacity: 0.07m³ – Bucket capacity min.: 0.07m³

Check out detailed specifications, information and technical data for Develon DX25Z-7 excavator manufactured between 2025 - 2026. Get more in-depth insight with Develon DX25Z-7 digger specifications. See information, like: Weight: 2.685t – Transport length: 4.15m – Transport width: 1.55m – Transport height: 2.452m – Bucket capacity: 0.07m³ – Bucket capacity min.: 0.07m³ and more.

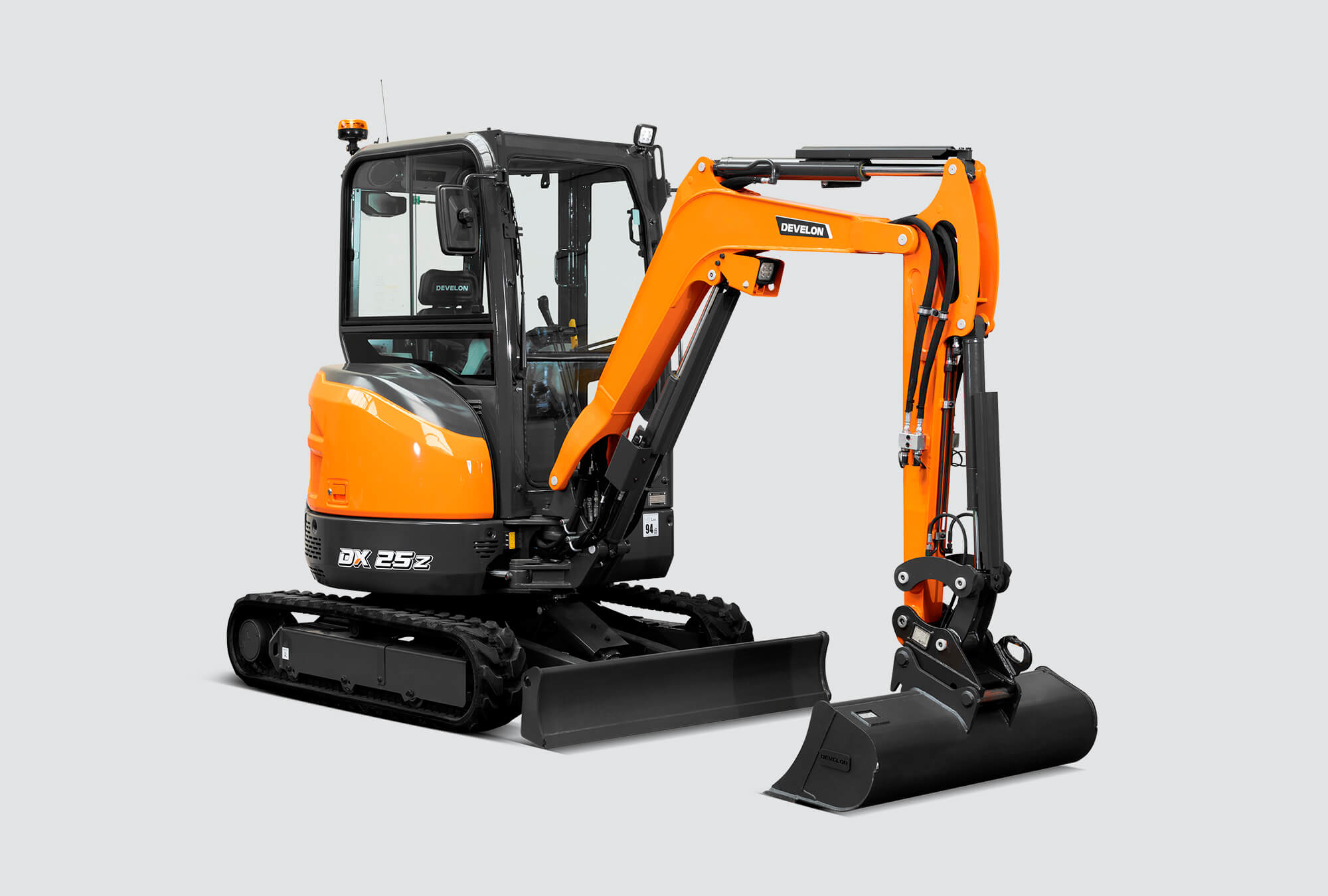

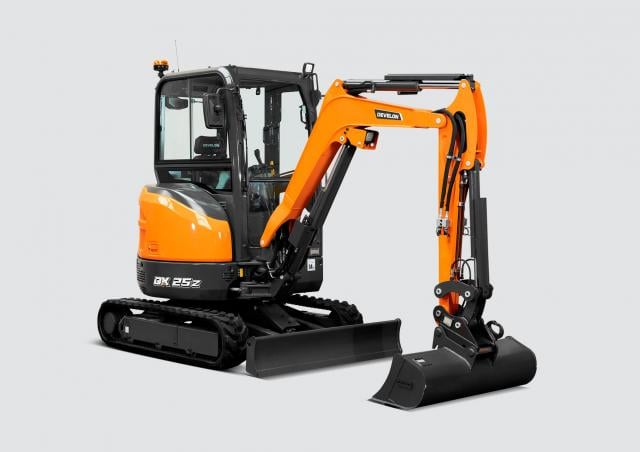

Mini Excavators Develon DX25Z-7

Visit Develon live at

Technical specs - DX25Z-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.685 t
Transport length
4.15 m
Transport width
1.55 m
Transport height
2.452 m
Bucket capacity
0.07 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.07 m³
Bucket width
0.476 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.56 m
Dredging depth
2.515 m
Tear-out force
18 kN
Model series
DX
Engine manuf.
Kubota
Engine type
D1305
Engine power
24.4 kW
Dimension lxwxh
480 x 396 x 590  mm
Displacement
1.261 l
Revolutions at max torque
1900 rpm
Max. torque
83 Nm
No. of cylinders
3
Cylinder bore x stroke
78 x 88  mm
Emission level
Stage V

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No
