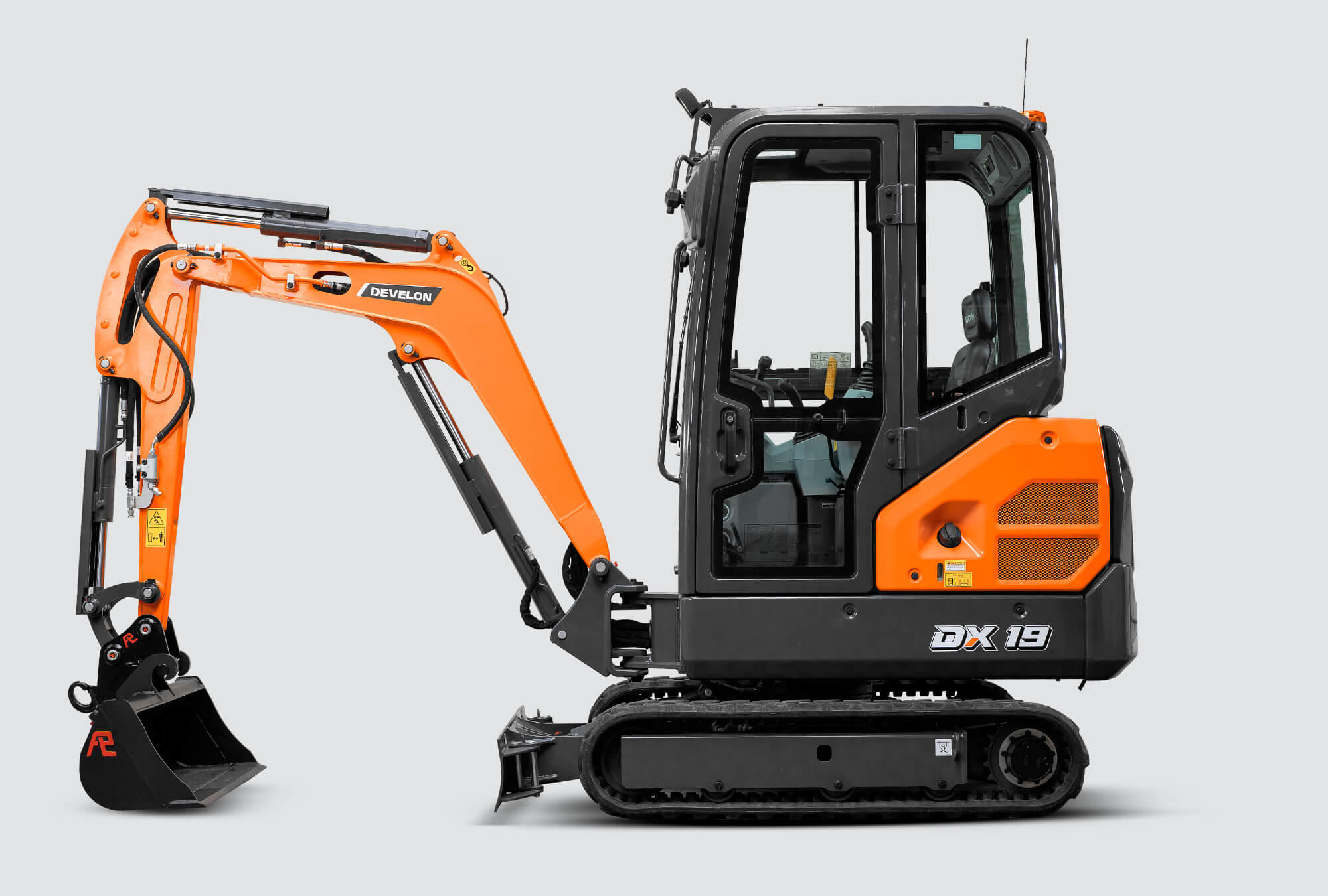

DX19-7 Develon excavator specs & dimensions (2024 - 2026)

Weight: 1.885t – Transport length: 3.837m – Transport width: 0.994m – Transport height: 2.275m – Bucket capacity: 0.04m³ – Bucket …

Weight: 1.885t – Transport length: 3.837m – Transport width: 0.994m – Transport height: 2.275m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³

Check out detailed specifications, information and technical data for Develon DX19-7 excavator manufactured between 2024 - 2026. Get more in-depth insight with Develon DX19-7 digger specifications. See information, like: Weight: 1.885t – Transport length: 3.837m – Transport width: 0.994m – Transport height: 2.275m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³ and more.

Mini Excavators Develon DX19-7

Visit Develon live at

Technical specs - DX19-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.885 t
Transport length
3.837 m
Transport width
0.994 m
Transport height
2.275 m
Bucket capacity
0.04 m³
Bucket capacity min.
0.04 m³
Bucket capacity max.
0.04 m³
Bucket width
0.38 m
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.85 m
Dredging depth
2.34 m
Model series
DX
Engine manuf.
N/A
Engine type
1DZ-III (V)
Engine power
12.1 kW
Dimension lxwxh
434x412x544 mm
Displacement
0.898 l
Revolutions at max torque
2400 rpm
Max. torque
55,7/1900 Nm
No. of cylinders
3
Cylinder bore x stroke
72x73.6 mm
Emission level
Stage V

More technical details, like: standard tyres, tear-out force are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Develon DX19-7 FAQ

When was the Develon DX19-7 manufactured?

The Develon DX19-7 was first produced in 2024.

How much does the Develon DX19-7 weigh?

The Develon DX19-7 weighs 1.885 tons.

What are the transport dimensions of the Develon DX19-7 mini excavator?

The Develon DX19-7 has a transport length of 3.837 meters, a transport width of 0.994 meters, and a transport height of 2.275 meters.

What is the track width of the Develon DX19-7 mini excavator?

The Develon DX19-7 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Develon DX19-7 mini excavator?

The Develon DX19-7 mini excavator has a dredging depth of 2.34 meters and a maximum horizontal reach of 3.85 meters.

What are the specifications of the primary work tool bucket on the Develon DX19-7 mini excavator?

The primary work tool bucket of the Develon DX19-7 has a capacity of 0.04 cubic meters and a width of 0.38 meters.

What operator safety features does the Develon DX19-7 have?

The Develon DX19-7 has a cabin for driver protection.

How much is a Develon DX19-7 Mini excavator (2024u20132025) worth?

The residual value of the Develon DX19-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
