Technical specs - DX19 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.88 t

Transport length: 3.83 m

Transport width: 0.98 m

Transport height: 2.3 m

Bucket capacity max.: 0.06 m³

Track width: 230 mm

Driver protection: Kb

Max. Reach horizontal: 4.04 m

Dredging depth: 2.38 m

Tear-out force: 20.83 kN

Model series: DX

Engine manuf.: Kubota

Engine type: D722-EF11

Engine power: 9.9 kW

Displacement: 0.72 l

Revolutions at max torque: 2000 rpm

Max. torque: 42.3 Nm

No. of cylinders: 3

Cylinder bore x stroke: 67x68 mm

Emission level: V

More technical details, like: bucket capacity, bucket capacity min., bucket width, standard tyres, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Develon DX19 FAQ

When was the Develon DX19 manufactured?

The Develon DX19 was manufactured from 2021 to 2023.

How much does the Develon DX19 weigh?

The Develon DX19 weighs 1.88 tons.

What are the transport dimensions of the Develon DX19 mini excavator?

The Develon DX19 has a transport length of 3.83 meters, a transport width of 0.98 meters, and a transport height of 2.3 meters.

What is the track width of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a dredging depth of 2.38 meters and a maximum horizontal reach of 4.04 meters.

What is the tear-out force of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a tear-out force of 20.83 kN.

What is the maximum bucket capacity of the Develon DX19 mini excavator?

The Develon DX19 mini excavator has a maximum bucket capacity of 0.06 cubic meters.

What operator safety features does the Develon DX19 have?

The Develon DX19 has a cabin for driver protection.

How much is a Develon DX19 Mini excavator (2021u20132023) worth?

The residual value of the Develon DX19 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

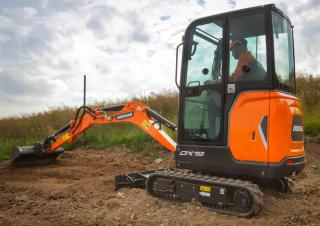

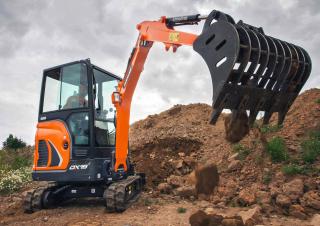

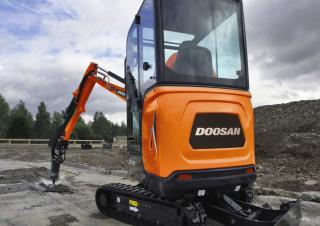

Develon DX19 overview

Doosan DX19 features overview

Transportability
The retractable undercarriage allows you to enter buildings through the doors. Side-shifted workgroup ensures excellent working visibility. New easy-to-use durable blade extensions. Left side offset cylinder located to minimise risk of damage to surrounding objects. The DX19 easily fits on a conventional trailer. Easier transportability with new integrated upper structure locking points.

Engine / Driveline and transmission

Right panel Left panel
Dozer lever & quick speed switch, travel mode switch, proportional joystick, New control panel Proportionally expandable width switch. joystick (included horn knob) and undercarriage, General warning, engine coolant temperature, Two speeds, engine alert, lights, fuel gauge and alarm, seat belt, hydraulic warning 10th info button - Display menu

Hydraulics

Lift more, lift higher
The superior dumping height makes loading trucks easy, while the reach at ground level means you don't have to be repositioned so often when digging. With improved stability and lifting force combined with best proportional auxiliary flow, the DX19 gives you the highest versatility in operating a wide range of attachments. Extendable blade: Long blade for added durability and ease of dust loadability.

Tyres / Tracks

Ergonomic operator environment Cab floor panels
Spacious cabin with ample leg room, robust ergonomic pedals, large & flat floor, cup holder, storage box etc. Easy tool-free removable cab floor panels for convenient service. Cab access: The operator can easily enter and exit thanks to the wide door.

Dimensions and weight

NOT Lift Point Height [H],"Over blade, blade down	Over blade, blade up	Over side, blade up	Over side, blade up, retracted",Max. radius [R] (mm)
Lift at max. radius (kg)	Lift radius [R] (kg)	Lift at max. radius (kg)	Lift radius [R] (kg)	Lift at max. radius (kg)	Lift radius [R] (kg)	Lift at max. radius (kg)	Lift radius [R] (kg)
2.0 m	3.0 m	2.0 m	3.0 m	2.0 m	3.0 m	2.0 m	3.0 m
2.0 m	380 *	-	341 *	249	-	341 *	295	-	341 *	178	-	217	3372
1.0 m	372 *	496 *	412 *	208	496 *	282	244	496 *	334	147	373	208	3708
0.0 m	364 *	855 *	466 *	203	475	267	240	540	317	146	323	193	3691
-1.0 m	351 *	735 *	406 *	230	444	261	275	521	298	166	324	186	3315


Operating weight with cab	1877 kg
Operating weight with canopy	1781 kg
Ground pressure	32.4 kPa

		PRINTING
A	Blade height	FOR 235 mm	A Bucket pivot angle	196°
B	Ground clearance	419 mm	B Max. reach - std arm	4084 mm
C	Engine cover height	1340 mm	B Max. reach - long arm	4257 mm
D	Length of track on ground	1114 mm	C Max. reach at ground level - std arm	4039 mm
E	Machine centre line to blade	1252 mm	C Max. reach at ground level - long arm	4214 mm
F	Min. radius in travel position	2812 mm	D Min. swing radius - std arm	1542 mm
G	Overall track length	1476 mm	D Min. swing radius - long arm	1561 mm
H	Shipping length - std arm	3812 mm	E Max. blade height	220 mm
H	Shipping length - long arm	3831 mm	F Max. blade depth	204 mm
I	Track lug height	25 mm	G Max. height at min. swing radius	2564 mm
J	Blade width (retracted)	1360 (980) mm	H Max. digging height - std arm	3573 mm
K	Overall height	2299 mm	H Max. digging height - long arm	3701 mm
L	Track width	230 mm	I Max. dump height - std arm	2566 mm
M	LH boom offset	433 mm	I Max. dump height - long arm	2693 mm
N	RH boom offset	589 mm	J Max. vertical wall depth - std arm	1948 mm
O	Min. turning radius	1154 mm	J Max. vertical wall depth - long arm	2115 mm
P	Swing clearance	rear"	1009 mm	K Max. digging depth - std arm	2385 mm
Q	Working width at max. RH rotation	1801 mm	K Max. digging depth - long arm	2565 mm
R	NOT Working width at max. LH rotation	1645 mm

Other features

Display
All parameters tested in a view with new control panel (auto engine shutdown, auto cab lights down switching off, audible alarm if malfunction). Engine hours, working hours, service codes, voltage, maintenance cycle, countdown for glow plugs, rpm.
Enhanced all-round visibility
The new cab design features large windows and narrow pillars to maximise all round visibility. Easy-to-open gas spring assisted light and rigid front window.

Safety

Service tool connector Battery cut-off switch
Allows you direct access to all maintenance data for easier service & troubleshooting. For greater safety and maintaining battery capacity.

Tables


Pump type	Dual piston pump with gear pump
Pump capacity	41.3 l/min
Pump 1 capacity at 2500 RPM	11.3 l/min
Pump 2 capacity at 2500 RPM	15 l/min
Pump 3 capacity at 2500 RPM	15 l/min
Auxiliary flow	30 l/min
Auxiliary relief	180 bar


Model	Kubota / D722-EF11 (EU Stage V)
No. of cylinders	3
Piston displacement	0.7 l
Max. net power (ISO 9249)	9.9 kW (13.3 hp)
Max. net torque (ISO 9249)	4.3 kgf/m (42.3 Nm)
Bore × stroke	67 mm × 68 mm
Starter	12 V / 1.4 kW
Batteries - Alternator	12 V / 530 A – 12 V / 40 A
Air filter	Dual dry replaceable paper cartridge

PRINTING
Noise level LpA (EU Directive 2006/42/EC)	79 dB(A)
Noise level LWA (EU Directive 2000/14/EC)	93 dB(A)
Whole body vibration (ISO 2631–1)	0.74 ms-2
Hand-arm vibration (ISO 5349–1)	1.42 ms-2
Hand-arm vibration (ISO 5349–1) Uncertainty	0.37 ms-2


Fuel tank	19 l
Hydraulic system	19 l
Cooling system	3.3 l
Engine oil plus oil filter	3.3 l
Final drive (each)	0.4 l


Swing speed	8.4 RPM
Boom swing angle L/R	80° / 60°
Swing drive	Orbit motor

FOR
Bucket digging force (ISO 6015)	20835 N
Arm digging force (ISO 6015)	10371 N
Long arm digging force (ISO 6015)	9279 N
Drawbar pull	19380 N
Travel speed fast / slow	4.0 / 2.5 km/h
Gradeability	30°

Hydraulic and travel control lockouts
Battery switch off
Spark arrester muffler
Boom light metal protection
Storage compartment
Cup holders
Long blade
1090 mm arm
1270 mm arm
