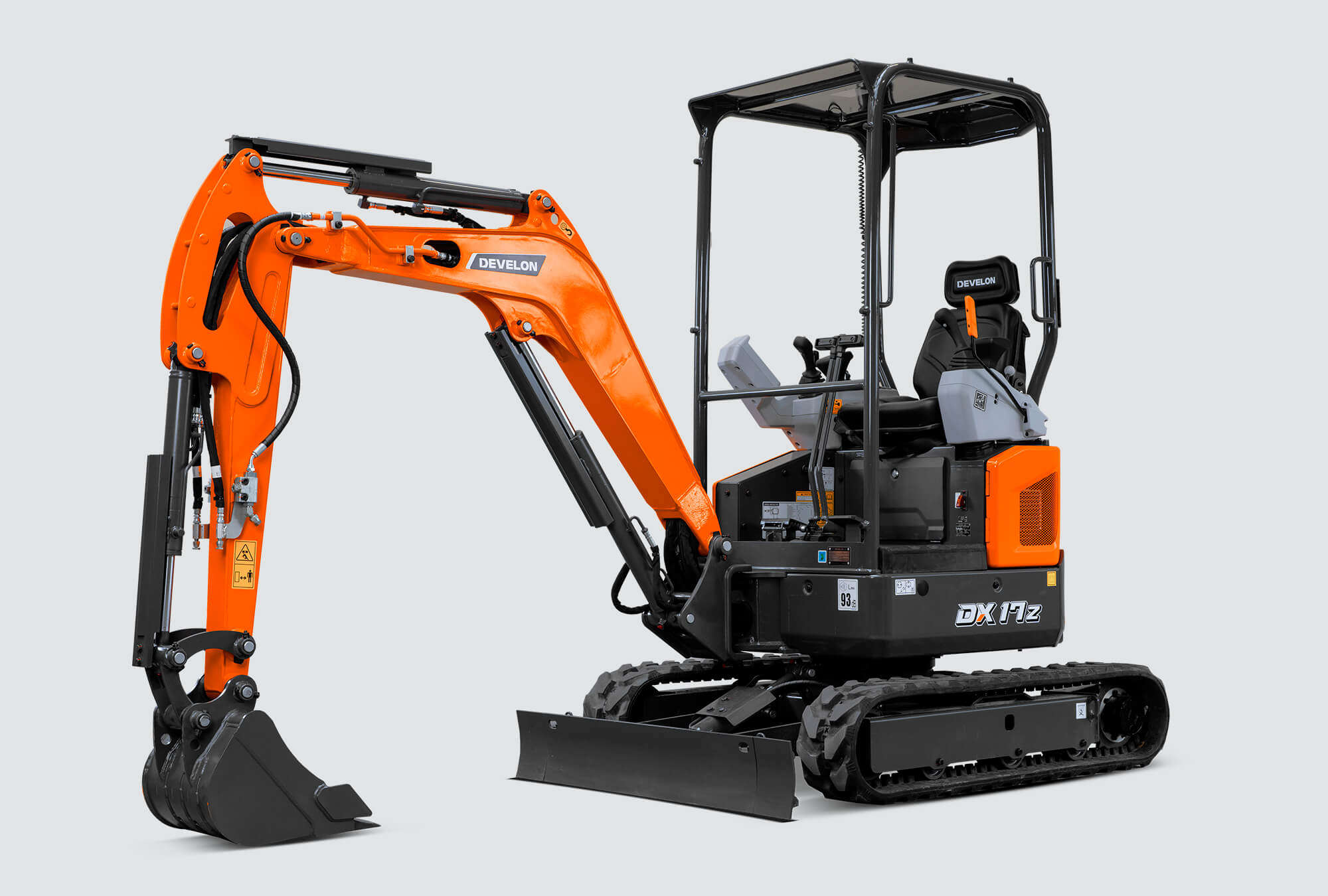

DX17Z Develon excavator specs & dimensions (2023 - 2024)

Weight: 1.75t – Transport length: 3.45m – Transport width: 0.98m – Transport height: 2.3m – Bucket capacity: 0.04m³ – Bucket capac…

Weight: 1.75t – Transport length: 3.45m – Transport width: 0.98m – Transport height: 2.3m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³

Check out detailed specifications, information and technical data for Develon DX17Z excavator manufactured between 2023 - 2024. Get more in-depth insight with Develon DX17Z digger specifications. See information, like: Weight: 1.75t – Transport length: 3.45m – Transport width: 0.98m – Transport height: 2.3m – Bucket capacity: 0.04m³ – Bucket capacity min.: 0.04m³ and more.

Mini Excavators Develon DX17Z

Visit Develon live at

Technical specs - DX17Z Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.75 t
Transport length
3.45 m
Transport width
0.98 m
Transport height
2.3 m
Bucket capacity
0.04 m³
Bucket capacity min.
0.04 m³
Bucket capacity max.
0.04 m³
Bucket width
0.38 m
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.971 m
Dredging depth
2.249 m
Tear-out force
16.18 kN
Model series
DX
Engine manuf.
Yanmar
Engine type
3TNV74F-SPBC
Engine power
11 kW
Dimension lxwxh
504x427x549 mm
Displacement
0.993 l
Revolutions at max torque
2400 rpm
Max. torque
50,2/1800 Nm
No. of cylinders
3
Cylinder bore x stroke
74x77 mm
Emission level
Stage V

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX17Z FAQ

When was the Develon DX17Z manufactured?

The Develon DX17Z was manufactured from 2023 to 2024.

How much does the Develon DX17Z weigh?

The Develon DX17Z weighs 1.75 tons.

What are the transport dimensions of the Develon DX17Z mini excavator?

The Develon DX17Z has a transport length of 3.45 meters, a transport width of 0.98 meters, and a transport height of 2.3 meters.

What is the track width of the Develon DX17Z mini excavator's undercarriage?

The Develon DX17Z mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Develon DX17Z mini excavator?

The Develon DX17Z mini excavator has a dredging depth of 2.249 meters and a maximum horizontal reach of 3.971 meters.

What is the tear-out force of the Develon DX17Z mini excavator?

The Develon DX17Z mini excavator has a tear-out force of 16.18 kN.

What are the bucket specifications of the Develon DX17Z mini excavator?

The Develon DX17Z mini excavator has a bucket capacity of 0.04 cubic meters and a bucket width of 0.38 meters.

What operator safety and support features does the Develon DX17Z mini excavator have?

The Develon DX17Z mini excavator features a canopy for driver protection.

How much is a Develon DX17Z Mini excavator (2023u20132024) worth?

The residual value of the Develon DX17Z depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
