SOLAR 015 PLUS Daewoo excavator specs & dimensions (2005 - 2026)

Daewoo SOLAR 015 PLUS is a mini excavator manufactured since 2005, with a weight of 1 ton. It has a transport length of 3.755 mete…

Daewoo SOLAR 015 PLUS is a mini excavator manufactured since 2005, with a weight of 1 ton. It has a transport length of 3.755 meters, a transport width of 1 meter, and a transport height of 2.247 meters.

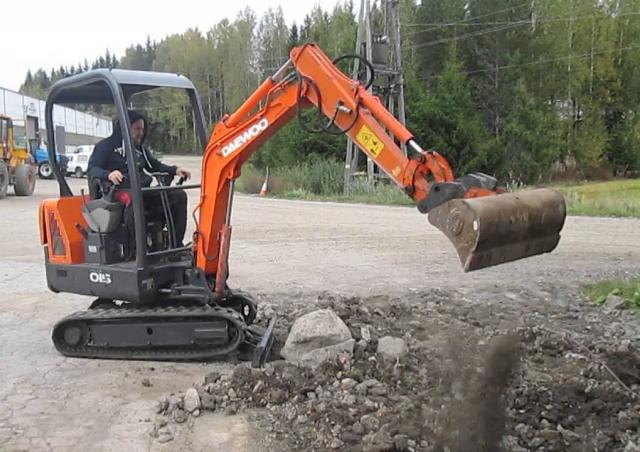

Mini Excavators Daewoo SOLAR 015 PLUS

Technical specs - SOLAR 015 PLUS Daewoo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1 t
Transport length
3.76 m
Transport width
1 m
Transport height
2.25 m
Max. Reach horizontal
3.7 m
Dredging depth
2.14 m
Engine manuf.
Mitsubishi
Engine type
L3E
Engine power
12.5 kW
Displacement
0.925 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, track width, standard tyres, driver protection, tear-out force, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Daewoo SOLAR 015 PLUS FAQ

When was the Daewoo SOLAR 015 PLUS manufactured?

The Daewoo SOLAR 015 PLUS was first produced in 2005.

How much does the Daewoo SOLAR 015 PLUS weigh?

The Daewoo SOLAR 015 PLUS weighs 1 ton.

What are the transport dimensions of the Daewoo SOLAR 015 PLUS mini excavator?

The Daewoo SOLAR 015 PLUS has a transport length of 3.76 meters, a transport width of 1 meter, and a transport height of 2.25 meters.

What are the dredging depth and maximum horizontal reach of the Daewoo SOLAR 015 PLUS mini excavator?

The Daewoo SOLAR 015 PLUS mini excavator has a dredging depth of 2.14 meters and a maximum horizontal reach of 3.7 meters.

How much is a Daewoo SOLAR 015 PLUS Mini excavator (2005u20132025) worth?

The residual value of the Daewoo SOLAR 015 PLUS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
