    Lectura specs Construction machinery Mini Excavators Mini Excavators Caterpillar Caterpillar 304 C R specifications

    Caterpillar 304 C R excavator specs (2002 - 2006)

    7,50/10 Rate this machine now!

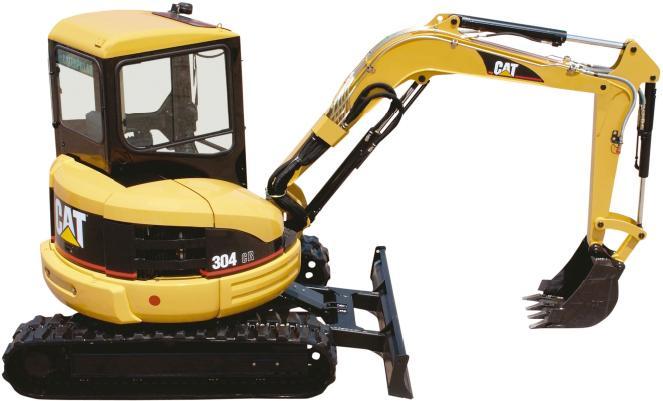

    Manufactured by Caterpillar, this is the 304 C R mini excavator. Find and download detailed specs and data sheets for this machine... Read more

    Manufactured by Caterpillar, this is the 304 C R mini excavator. Find and download detailed specs and data sheets for this machine here.

    Equipped with a powerful Mitsubishi engine, this 304 C R 4.3t machine can provide 26.5kW or 35 horse power for the mini excavator. The 304 C R is categorised in the biggest machine segment in the mini excavators category. The model's dimensions are 5.18m x 1.98m x 2.595m. The bucket capacity of 304 C R is 0.076m³, which is above average for this type of machine.

    The Caterpillar 304 C R has been equipped and sold with Rubber track. It has been sold without air Track adaption, Aircondition and Quick hitch mech. As of 2006. There are more detailed specifications and machine descriptions available in the original Caterpillar 304 C R specs data sheet. Specification sheet is available for a free download in Russian and German - providing the machine descriptions and more detailed specs about this particular model.

    The production stopped in 2006, where this 304 C R was available at a new list price between €57000 and €72000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

    Caterpillar currently produces 13 other mini excavators, which range from 1t up to 5.4t - the most visited on LECTURA Specs are 301.7 D, 305.5 E CR, 304 E CR. Currently, 13 models of the 304 C R mini excavator exist, at an average sale value of €19100 at 11 years of age. Want more detailed specifications? Download the latest Caterpillar 304 C R specs data sheet on LECTURA Specs today!

    Technical specs - 304 C R Caterpillar


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 4.3 t
    • Transport length 5.18 m
    • Transport width 1.98 m
    • Transport height 2.595 m
    • Bucket capacity 0.076 m³
    • Track width 400 mm
    • Driver protection Kb
    • Max. Reach horizontal 5,22 m
    • Dredging depth 3,35 m
    • Tear-out force 23,9 kN
    • Engine manuf. Mitsubishi
    • Engine type S4L2 E2
    • Engine power 26.5 kW
    • Displacement 1.76 l
    • Revolutions at max torque 2400 rpm

    Find other specs and information for Caterpillar 304 C R here. The full specification list contains additional data such as: Bucket capacity min., Bucket capacity max., Bucket width, Standard tyres, Engine power, Dimension lxwxh, Max. torque, No. of cylinders, Cylinder bore x stroke, Weight, Emission level, Emission Rating, Engine Manufacturer, Engine Model, Engine Output - Net, Engine Output - Gross, Number Of Track Rollers - Each Side, Track Shoe Width, Transport Length Mono Boom, Ground Clearance, Width over fixed tracks, Ground Level Reach - Mono Boom, Dig Height - Mono Boom, Dump Height - Mono Boom, Vertical Wall - Mono Boom, Dig Depth - Mono Boom, Fuel Tank, Hydraulic Tank, Dipper Tearout, Bucket Breakout, Main Pump, Total Flow, Boom Pressure, Operating Weight

    Basic model with standard bucket

    Special equipment

    • Track adjustment
    • Rubber track
    • Blade
    • Aircondition
    • Quick hitch hydr.
    • Quick hitch mech.
