304.5E2 XTC Caterpillar excavator specs & dimensions (2017 - 2026)

Caterpillar 304.5E2 XTC is a mini excavator manufactured since 2017. It has a weight of 4.05 tons and a track width of 350 mm. The…

Caterpillar 304.5E2 XTC is a mini excavator manufactured since 2017. It has a weight of 4.05 tons and a track width of 350 mm. The transport dimensions are 4.82 meters in length, 1.95 meters in width, and 2.5 meters in height. The machine features a tear-out force of 37.8 kN, a dredging depth of 3.13 meters, and a maximum horizontal reach of 5.22 meters. Special equipment includes a blade and rubber tracks.

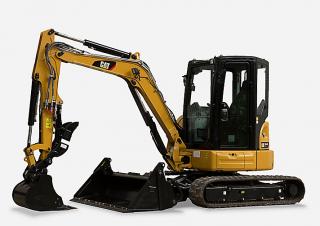

Mini Excavators Caterpillar 304.5E2 XTC

Technical specs - 304.5E2 XTC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.05 t
Transport length
4.82 m
Transport width
1.95 m
Transport height
2.5 m
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
5.22 m
Dredging depth
3.13 m
Tear-out force
37.8 kN
Model series
XTC
Engine manuf.
Caterpillar
Engine type
C2.4
Engine power
31 kW
Displacement
2.4 l
Cylinder bore x stroke
87x102 mm
Emission level
Tier 4 f

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 304.5E2 XTC FAQ

When was the Caterpillar 304.5E2 XTC manufactured?

The Caterpillar 304.5E2 XTC was first produced in 2017.

How much does the Caterpillar 304.5E2 XTC weigh?

The Caterpillar 304.5E2 XTC weighs 4.05 tons.

What are the transport dimensions of the Caterpillar 304.5E2 XTC mini excavator?

The Caterpillar 304.5E2 XTC has a transport length of 4.82 meters, a transport width of 1.95 meters, and a transport height of 2.5 meters.

What is the track width of the Caterpillar 304.5E2 XTC's undercarriage?

The Caterpillar 304.5E2 XTC has a track width of 350 mm.

What are the excavation performance specifications of the Caterpillar 304.5E2 XTC mini excavator?

The Caterpillar 304.5E2 XTC mini excavator has a dredging depth of 3.13 meters and a maximum horizontal reach of 5.22 meters.

What is the tear-out force of the Caterpillar 304.5E2 XTC mini excavator?

The Caterpillar 304.5E2 XTC mini excavator has a tear-out force of 37.8 kN.

What driver protection features does the Caterpillar 304.5E2 XTC have?

The Caterpillar 304.5E2 XTC has driver protection in the form of a cabin.

How much is a Caterpillar 304.5E2 XTC Mini excavator (2017u20132025) worth?

The residual value of the Caterpillar 304.5E2 XTC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 304.5E2 XTC overview

Engine / Driveline and transmission

„ Cat C2.4 diesel engine (meets U.S. EPA
Automatic motor Idle automatic engine shutdown Automatic two-speed travel Diesel particulate filter (North America only) Diesel oxidation Catalyst (North America only) Fuel and water separator Power on request

Hydraulics

HYDRAULIC SYSTEM
1-way and 2-way (combined function) Accumulator Automatic swing parking brake Auxiliary hydraulic lines Relief line Quick shutdown Cat Interlock System: Hydraulic lock Continuous auxiliary flow Ecology drain Hydraulic oil cooler Load Sensing/Flow Sharing Hydraulics
HYDRAULIC SYSTEM
Quick couplers Boom drain check valve Stick lowering check valve Secondary auxiliary hydraulic lines.

Tyres / Tracks

UNDERCARRIAGE
Dozer blade with float function Track, rubber belt, 350 mm (14 in) Wide Knotted eyes on track frame Tow eye at ground level

200 degree bucket rotation Certified hoop on bucket linkage (optional in Europe) Front shovel capable Thumb ready stick

Dimensions and weight

Length Stick Length – Long1615 mm64 in
Machine Overhang0 mm0 in
Operating Specifications – Loader
Maximum Height – 1829 mm (72 in) MP Bucket with Cutting Edge935 mm37 in
Reach at Maximum Lift and Dump 1829 mm (72 in) MP Bucket –2040 mm80 in
Rack Back Angle at Maximum Height 1829 mm (72 in) MP Bucket –48°
Maximum Dump Angle 1829 mm (72 in) MP Bucket –27°
Breakout Force Lift 1829 mm (72 in) MP Bucket –"720 kg1588 lb"
Breakout Force Tilt 1829 mm (72 in) MP Bucket –"850 kg1874 lb"
Lift Capacity
1829 mm (72 in) MP Bucket –525 kg1158 lb"
1070 mm (42 in) Forks –600 kg1323 lb"
Rated Operating Capacity* (maximum height) 1829 mm (72 in) MP Bucket –525 kg1158 lb"
Rated Operating Capacity* (ground) 1829 mm (72 in) MP Bucket –850 kg1874 lb"
Standard StickLong Stick
mminmmin
11 Boom Height in Shipping Position148058177070
12 O/A Shipping Height250098250098
13 Swing Bearing Height5652256522
14 O/A Undercarriage Length222087222087
15 O/A Shipping Length48201904930194
16 Boom Swing Right7352973529
17 Boom Swing Left6702667026
18 Track Belt/Shoe Width3501435014

Other features

„ Cab:
Air conditioning, Heat, High back suspension seat, Interlocking front window system, Radio, Windshield wiper performance and safety system, Multiple languages Cup holder Hydraulic neutral lockout bar Pattern changer (optional in Europe) Location Reference System: levelling Tool storage area Travel control pedals with hand levers

light, cab with time delay function Mirror, canopy right mirror, canopy left mirrors, cabin rear

Safety

SAFETY AND SECURITY
Anti-theft (COMPASS) Caterpillar Corporate One Key System Door Locks Lockable Fuel Cap Retractable Seatbelt Roll Over Protective Structure (ROPS) Tip Over Protective Structure (TOPS) (ISO 12117-2) (ISO 12117) Top Guard ISO 10262 (Level, Travel Alarm (optional in Europe)
SAFETY AND SECURITY
Battery shutdown Beacon bushing Front wire mesh guard Rear-view camera Vandal

Tables

Engine
Engine Model*Cat C2.4
Rated Net Power @ 2200 rpm ISO 9249/EEC 80/1269"30 kW40.2 hp
Gross Power
ISO 1439631.2 kW41.8 hp
Bore87 mm3.4 in
Stroke102.4 mm4 in
Displacement2.4 L146 in3
Standard StickLong Stick
mminmmin
1 Dig Depth31301233430135
2 Vertical Wall2420952560101
3 Maximum Reach at Ground Level52202065470215
4 Maximum Reach53502115590220
5 Maximum Dig Height49801965070200
6 Maximum Dump Clearance35901413690145
7 Boom In Reach211083222087
8 Tail Swing9753897538
9 Maximum Blade Height4001640016
10 Maximum Blade Depth4701947019
Lift Point Radius3000 mm (118 in)4500 mm (177 in)
FrontSideFrontSide
Blade Downkg16109201040590
(lb),"(3,550)(2,029)(2,293)(1,301)"
Blade Upkg830830530530
(lb),"(1,830)(1,830)(1,169)(1,169)"
Lift Point Radius3000 mm (118 in)4500 mm (177 in)
FrontSideFrontSide
Blade Downkg1570910860480
(lb),"(3,462)(2,007)(1,896)(1,058)"
Blade Upkg820820430430
,(lb),"(1,808)(1,808)",(948),(948)
