302 CR Caterpillar excavator specs & dimensions (2019 - 2026)

Caterpillar 302 CR is a Mini Excavator manufactured since 2019, with a weight of 2.2 t. It features a track width of 250 mm, a tra…

Caterpillar 302 CR is a Mini Excavator manufactured since 2019, with a weight of 2.2 t. It features a track width of 250 mm, a transport length of 3.88 m, a transport width of 1.09 m, and a transport height of 2.3 m. The machine has a tear-out force of 19.6 kN, a dredging depth of 2.57 m, and a maximum horizontal reach of 4.21 m. The bucket capacity is 0.022 m³. Special equipment includes a blade, rubber track, and track adjustment.

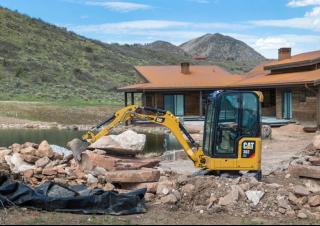

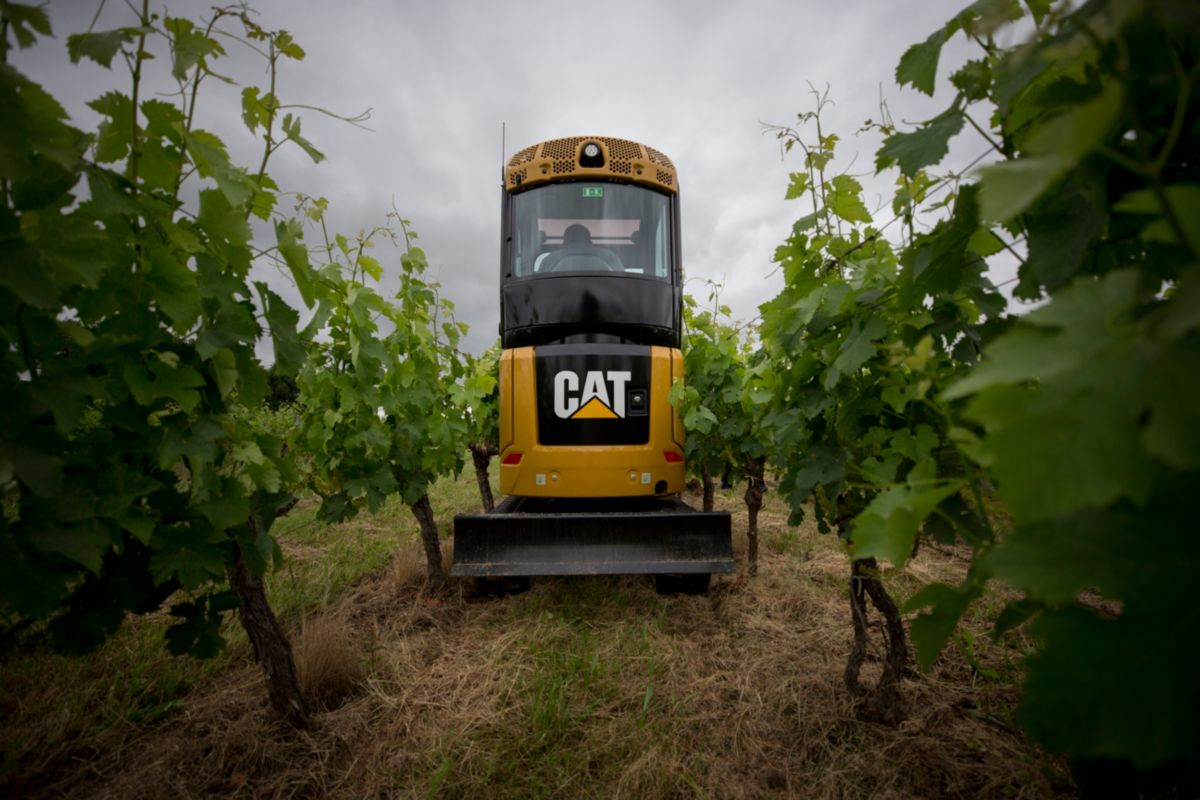

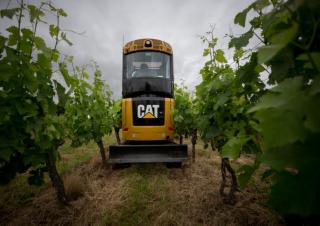

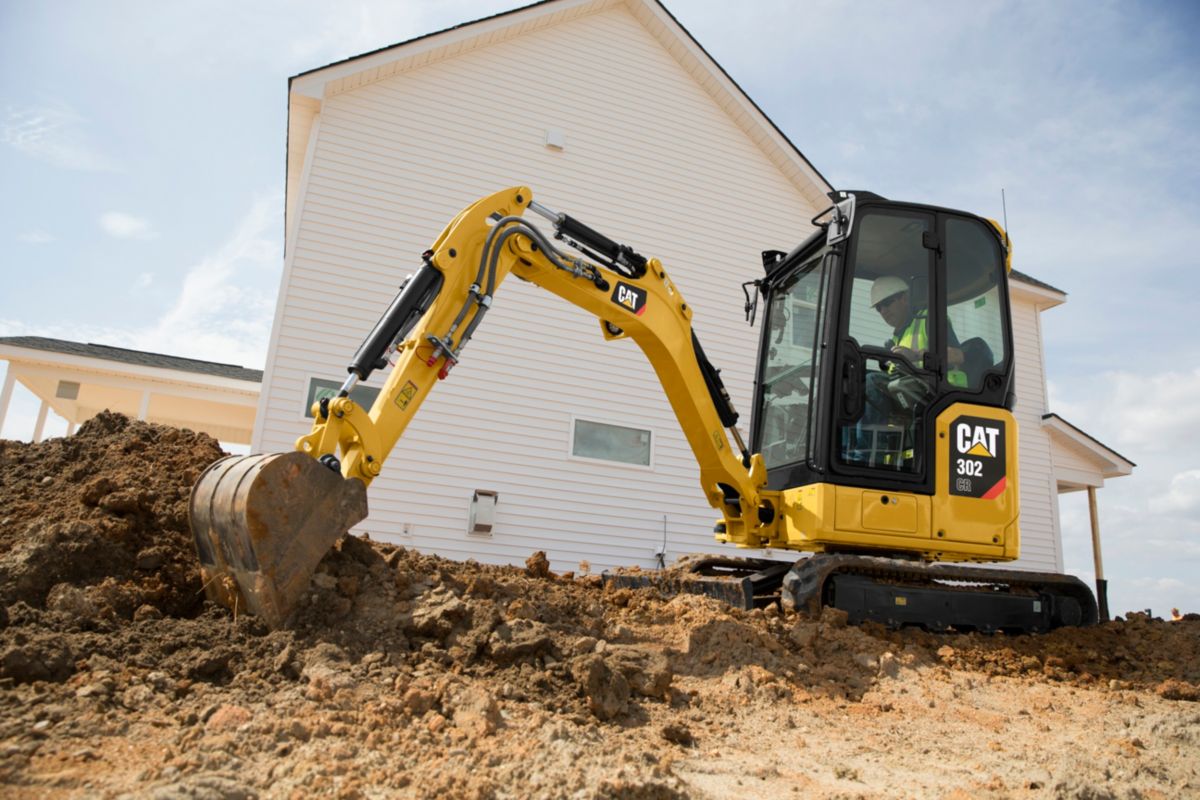

Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR
Mini Excavators Caterpillar 302 CR

Technical specs - 302 CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.2 t
Transport length
3.88 m
Transport width
1.09 m
Transport height
2.3 m
Bucket capacity
0.022 m³
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.21 m
Dredging depth
2.57 m
Tear-out force
19.6 kN
Engine manuf.
Caterpillar
Engine type
C1.1
Engine power
16.1 kW
Displacement
1.1 l
Cylinder bore x stroke
77x81 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 302 CR FAQ

When was the Caterpillar 302 CR manufactured?

The Caterpillar 302 CR was first produced in 2019.

How much does the Caterpillar 302 CR weigh?

The Caterpillar 302 CR weighs 2.2 tons.

What are the transport dimensions of the Caterpillar 302 CR mini excavator?

The Caterpillar 302 CR has a transport length of 3.88 meters, a transport width of 1.09 meters, and a transport height of 2.3 meters.

What is the track width of the Caterpillar 302 CR mini excavator?

The Caterpillar 302 CR mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Caterpillar 302 CR mini excavator?

The Caterpillar 302 CR mini excavator has a dredging depth of 2.57 meters and a maximum horizontal reach of 4.21 meters.

What is the tear-out force of the Caterpillar 302 CR mini excavator?

The Caterpillar 302 CR mini excavator has a tear-out force of 19.6 kN.

What is the bucket capacity of the Caterpillar 302 CR mini excavator?

The bucket capacity of the Caterpillar 302 CR mini excavator is 0.022 cubic meters.

What operator safety and support features does the Caterpillar 302 CR have?

The Caterpillar 302 CR provides operator safety with a cabin for driver protection.

How much is a Caterpillar 302 CR Mini excavator (2019u20132025) worth?

The residual value of the Caterpillar 302 CR depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 302 CR overview

Engine / Driveline and transmission

OPERATOR ENVIRONMENT
Cab or Canopy ROPS ISO 12117-2:2008 TOPS ISO 12117:1997 Top Guard ISO 10262:1998 (Level, Cab HVAC or Heat Only Next Generation Standard LCD Monitor Automatic Engine Idle Automatic Engine Shutdown Automatic Two Speeds Travel Fuel Water Separator Power as needed (not available in all regions) Machine Security Standard Key with Pass Variable Displacement Piston Pump Load Sensing/Flow Sharing Hydraulic Code or Push to Start with Fob

Hydraulics

HYDRAULICS
Smart Tech Electronic Pump Accumulator Automatic Swing Brake Auxiliary Hydraulic Lines Single and Two Way Relief Flow Continuous Auxiliary Tools Flow Auxiliary Line Quick Disconnects

Tyres / Tracks

ELECTRICAL
Product Linkweld Front Lights LED Front and Rear Lights LED Boom Light Battery
UNDERCARRIAGE
Fixed or extendable undercarriage rubber belt or steel track (250 mm/9.8 in width) Dozer blade with float tie downs on the track frame.

One-piece boom (1850 mm/73 in) Standard handle (960 mm/37,8 in) or Long stick (1160 mm/45,7 in) Fronthovel Capable (Pin-On/ Manual Coupler/Hydraulikkoppler not available in all regions) Thumb ready (not available in all regions) Certified hooves (not available in all regions

Dimensions and weight

Standard StickLong Stick
1Dig Depth2370 mm (93.3 in)2570 mm (101.2 in)
2Vertical Wall1850 mm (72.8 in)1940 mm (76.4 in)
3Maximum Reach at Ground Level4040 mm (159.1 in)4210 mm (165.7 in)
4Maximum Reach4110 mm (161.8 in) 4270 mm (168.1 in)
5Maximum Dig Height3550 mm (139.8 in)3620 mm (142.5 in)
6Maximum Dump Clearance2560 mm (100.8 in)2640 mm (103.9 in)
7Boom in Reach1660 mm (65.4 in)1660 mm (65.4 in)
8Tail Swing750 mm (29.5 in)750 mm (29.5 in)
9Maximum Blade Height285 mm (11.2 in)285 mm (11.2 in)
10Maximum Blade Depth295 mm (11.6 in)295 mm (11.6 in)
11Boom Height in Shipping Position1070 mm (42.1 in)1020 mm (40.2 in)
12Overall Shipping Height2300 mm (90.6 in)2300 mm (90.6 in)
13Swing Bearing Height442 mm (17.4 in)442 mm (17.4 in)
14Overall Undercarriage Length1850 mm (72.8 in)1850 mm (72.8 in)
15Overall Shipping Length†3900 mm (153.5 in)3880 mm (152.8 in)
16Boom Swing Right50 degrees50 degrees
17Boom Swing Left65 degrees65 degrees
18Track Belt/Shoe Width250 mm (9.8 in)250 mm (9.8 in)
19Track Width
Retracted1090 mm (42.9 in)1090 mm (42.9 in)
Expanded1400 mm (55.12 in)1400 mm (55.12 in)
20Minimum Ground Clearance Below Undercarriage150 mm (5.9 in)150 mm (5.9 in)
21Stick Length960 mm (37.8 in)1160 mm (45.7 in)
Lift Point Height2 m (6.6 ft)Lift Point Radius (Maximum)
Over FrontOver SideOver FrontOver Sidem (ft)
Blade UpBlade DownBlade UpBlade Down
2 mStandard Stickkg (lb)3463762943.3
(769)(831)(654)(10.8)
(6.6 ft)Long Stickkg3013012693.5
(lb)(665)(665)(598)(11.7)
1.5 mStandard Stickkg5495495493113702643.5
(lb),"(1,161)(1,161)(1,161)",(687),(817),(584),(11.7)
(4.9 ft)Long Stickkg2873002433.7
(lb)(635)(661)(539)(12.5)
1 mStandard Stickkg7119065862933802493.6
(lb),"(1,532)(1,915)(1,265)",(648),(836),(550),(12.5)
(3.3 ft)Long Stickkg7207715942723092303.8
(lb),"(1,549)(1,628)(1,280)",(600),(680),(508),(12.5)
0 mStandard Stickkg6759595522963882513.5
(lb),"(1,450)(2,067)(1,189)",(653),(856),(553),(11.7)
(0 ft)Long Stickkg6689885462733662303.7
(lb),"(1,437)(2,123)(1,176)",(602),(806),(508),(12.5)
Lift Point Height2 m (6.6 ft)Lift Point Radius (Maximum)
Over FrontOver SideOver FrontOver Sidem (ft)
Blade UpBlade DownBlade UpBlade Down
2 mStandard Stickkg (lb)3773773443.3
(833)(833)(766)(10.8)
(6.6 ft)Long Stickkg3023023023.5
(lb)(667)(667)(667)(11.7)
1.5 mStandard Stickkg5265265263613703093.5
(lb),"(1,444)(1,114)(1,444)",(799),(816),(684),(11.7)
(4.9 ft)Long Stickkg3003002863.7
(lb)(660)(660)(633)(12.5)
1 mStandard Stickkg8208906803413792923.6
(lb),"(1,765)(1,880)(1,466)",(753),(834),(644),(12.5)
(3.3 ft)Long Stickkg7497496873083082713.8
(lb),"(1,582)(1,582)(1,482)",(678),(678),(598),(12.5)
0 mStandard Stickkg7819646443433892933.5
(lb),"(1,678)(2,078)(1,386)",(757),(857),(646),(11.7)
(0 ft)Long Stickkg7759926383183642713.7
(lb),"(1,666)(2,129)(1,373)",(700),(802),(596),(12.5)

Other features

„„Cab Radio „„Mirrors Left and Right
Adjustable wrist rests Fabric or vinyl seat Retractable High Visibility Seat Belt (75 mm/3 in) Coat Hook Cup Holder Cab Interior Light Storage Bag Skylight Washable Floor Mat Travel Pedals and Levers Next Generation Stick Steer Hydraulic Lockout All Controls Machine 2-point Lift Tilt Cab or Canopy Bluetooth-Capable (CAB only)

Tables

Long Stick7 kg15 lb
Steel Tracks60 kg132 lb
Expandable Undercarriage96 kg212 lb
Travel System
Travel Speed – High4.4 km/h2.7 mph
Travel Speed – Low2.9 km/h1.8 mph
Maximum Traction Force – High Speed13.2 kN2967.5 lbf"
Maximum Traction Force – Low Speed20.0 kN4496.2 lbf"
Ground Pressure – Minimum Weight23.7 kPa3.4 psi
Ground Pressure – Maximum Weight26.8 kPa3.9 psi
Gradeability (maximum)30 degrees
