302.7D Caterpillar excavator specs & dimensions (2012 - 2026)

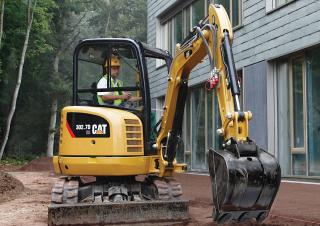

Caterpillar 302.7D is a mini excavator manufactured since 2012, with a weight of 2.67 tons. It has a transport length of 4.25 mete…

Caterpillar 302.7D is a mini excavator manufactured since 2012, with a weight of 2.67 tons. It has a transport length of 4.25 meters, a transport width of 1.57 meters, and a transport height of 2.4 meters. The bucket width is 1.57 meters.

302.7D

Years of manufacture: 2012—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 302.7D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 2.67 t

Transport length: 4.25 m

Transport width: 1.57 m

Transport height: 2.4 m

Bucket width: 1.57 m

Engine manuf.: Yanmar

Engine type: 3TNV76

Engine power: 15.2 kW

Displacement: 1.1 l

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., track width, standard tyres, driver protection, max. reach horizontal, dredging depth, tear-out force, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: No
Blade: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

302.7D Caterpillar Specification for Europe (EN)

Caterpillar 302.7D FAQ

When was the Caterpillar 302.7D manufactured?

The Caterpillar 302.7D was first produced in 2012.

How much does the Caterpillar 302.7D weigh?

The Caterpillar 302.7D weighs 2.67 tons.

What are the transport dimensions of the Caterpillar 302.7D mini excavator?

The Caterpillar 302.7D has a transport length of 4.25 meters, a transport width of 1.57 meters, and a transport height of 2.4 meters.

What is the bucket width of the Caterpillar 302.7D mini excavator?

The Caterpillar 302.7D mini excavator has a bucket width of 1.57 meters.

How much is a Caterpillar 302.7D Mini excavator (2012u20132025) worth?

The residual value of the Caterpillar 302.7D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 302.7D overview

Caterpillar 302.7D features overview

100% Pilot Controls
Delivers excellent machine control and service life as new performance eliminating the need for linkage and cable maintenance.

Engine / Driveline and transmission

Side Mounted Engine
All daily service points are easily accessed through the large side cover. The engine position also reduces heat and noise transition to the operator station (cab).

Hydraulics

Auxiliary Hydraulics as Standard Fit
The machine is ready to use.' Hammer and two-way lines complete with quick disconnect fittings are standard. Connections are located close to the tool to reduce hose lengths and any damage. Additional line options are available for further increase in machine versatility. Stick and bucket cylinder hoses are protected by performing through the boom.
Thumb Ready Stick (North American Builds)
The machine is configured with brackets and relief valves for easy and cost-effective mounting of a hydraulic thumb.
Adjustable Flow Control
Machines configured with proportional auxiliary hydraulics include adjustable hydraulic flow control for even greater tool control. Particularly useful in tools such as fishing buckets.

The steel bushings are fitted to all front linkage pivot points including swing casting, boom, stick and bucket. Designed for long service life and easy replacement.
Work Tools
A range of tools is available to take advantage of machine versatility. All the tools are matched to the machine to optimize performance and deliver excellent value through high productivity and long service life.

Tyres / Tracks

Dozer Float
Ground levelling and finishing applications are laid out quickly and easily with the dozer float function, making job site cleaning much more effi cient.
Split Front Window
The lower front window part slides into the upper profile frame. Both sections are then raised and stored in the roof using a gas-assisted mechanism, allowing the operator to position the front window to their viewing and ventilation requirements with easy storage.

Dimensions and weight

1	Height	2408 mm	7 ft 11 in
2	Width	1570 mm	5 ft 2 in
3	Transport length (arm lowered)	4255 mm	14 ft 0 in
4	Maximum digging depth	2544/2744 mm	8 ft 4 in/9 ft 0 in
5	Maximum vertical dig depth	1962/2152 mm	6 ft 5 in/7 ft 1in
6	Maximum dig height	4170/4300 mm	13 ft 8 in/14 ft 1 in
7	Maximum dump height	2840/2970 mm	9 ft 4 in/9 ft 8 in
8	Maximum reach	4613/4805 mm	15 ft 1 in/15 ft 10 in
9	Maximum reach at ground level	4481/4681	14 ft 8 in/15 ft 5 in
10	Tail swing radius	760 mm	30 in
11	Track width	764 mm	30 in
12	Minimum front linkage swing radius	533 mm	21 in
13	Maximum dozer lift height	380 mm	15 in
14	Maximum dozer dig depth	419 mm	16 in
15	Length of undercarriage	2006 mm	79 in
16	Boom swing angle (Right)		50°

Other features

Cab Comfort
With the Catthe 302.7D CR, the operator gets a large comfortable space to work. The ergonomic control layout, travel pedals and adjustable wrist rests have been designed to minimize operator fatigue and increase productivity.
Maintenance Access
Removable covers in the cab and at the rear of the machine allow easy access to hydraulic system components.
Customer Support
Product supported by the Cat dealer and worldwide parts network to minimize downtime. Financing options, warranty opportunities, maintenance contracts Help and advice on product and option selection to maximise efficiency and operating profi tability.

Tables

Width	1570 mm 61.9 in
Height	290 mm 11.4 in
Dig Depth	419 mm 16.5 in
Lift Height	380 mm 15 in

Engine Model	Yanmar 3TNV76
Rated Net Power (ISO 9249)	15.2 kW 20.7 hp
Gross Power	17.9 kW 24.3 hp
Displacement	1115 cm3 68 in3

Fuel Tank Capacity	35.2 L	9.3 gal
Hydraulic Tank	26.5 L	7 gal
Capacity

2.5 m (98.43 in)

3.0 m (118.11 in)

3.5 m (137.80 in)

Maximum

Front

Side

Front

Side

Front

Side

Front

Side

965*

127"

560

235"

730*

609"

435

959

585*

290"

355

783

510*

124"

320

705

955*

105"

623

373"

720*

587"

483

065"

580*

279"

394

869

470*

036"

332

732
