302.4D Caterpillar excavator specs & dimensions (2013 - 2019)

Caterpillar 302.4D is a mini excavator manufactured from 2013 to 2019. It has a weight of 2.32 tons and a track width of 250 mm. T…

Caterpillar 302.4D is a mini excavator manufactured from 2013 to 2019. It has a weight of 2.32 tons and a track width of 250 mm. The transport dimensions are 4.03 meters in length, 1.4 meters in width, and 2.39 meters in height. The tear-out force is 21.8 kN. Special equipment includes air conditioning, a blade, rubber tracks, and track adjustment.

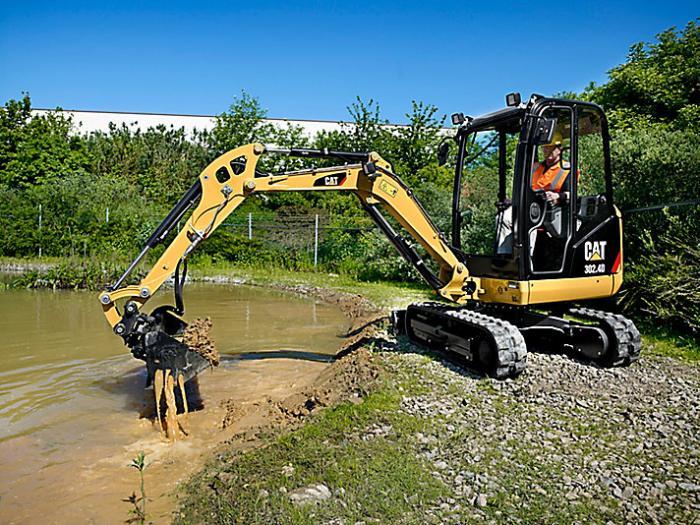

Mini Excavators Caterpillar 302.4D
Mini Excavators Caterpillar 302.4D
Mini Excavators Caterpillar 302.4D
Mini Excavators Caterpillar 302.4D

Technical specs - 302.4D Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.32 t
Transport length
4.03 m
Transport width
1.4 m
Transport height
2.39 m
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.02 m
Dredging depth
2.4 m
Tear-out force
21.8 kN
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.2 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 302.4D FAQ

When was the Caterpillar 302.4D manufactured?

The Caterpillar 302.4D was manufactured from 2013 to 2019.

How much does the Caterpillar 302.4D weigh?

The Caterpillar 302.4D weighs 2.32 tons.

What are the transport dimensions of the Caterpillar 302.4D mini excavator?

The Caterpillar 302.4D has a transport length of 4.03 meters, a transport width of 1.4 meters, and a transport height of 2.39 meters.

What is the track width of the Caterpillar 302.4D mini excavator?

The Caterpillar 302.4D mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Caterpillar 302.4D mini excavator?

The Caterpillar 302.4D mini excavator has a dredging depth of 2.4 meters and a maximum horizontal reach of 4.02 meters.

What is the tear-out force of the Caterpillar 302.4D mini excavator?

The Caterpillar 302.4D mini excavator has a tear-out force of 21.8 kN.

What operator safety and support feature does the Caterpillar 302.4D have?

The Caterpillar 302.4D has driver protection in the form of a cabin.
