301.7D CR Caterpillar excavator specs & dimensions (2013 - 2019)

Caterpillar 301.7D CR is a Mini Excavator manufactured from 2013 to 2019. It has a weight of 1.69 tons and a track width of 230 mm…

Caterpillar 301.7D CR is a Mini Excavator manufactured from 2013 to 2019. It has a weight of 1.69 tons and a track width of 230 mm. The transport dimensions are 3.584 meters in length, 0.99 meters in width, and 2.29 meters in height. The machine features a tear-out force of 14.2 kN, a dredging depth of 2.32 meters, and a maximum horizontal reach of 3.84 meters. The bucket capacity ranges from 0.6 m³ to 3.11 m³. Special equipment includes air conditioning, a blade, rubber tracks, and track adjustment.

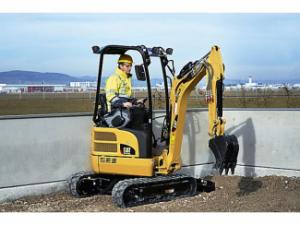

Mini Excavators Caterpillar 301.7D CR
Mini Excavators Caterpillar 301.7D CR
Mini Excavators Caterpillar 301.7D CR
Mini Excavators Caterpillar 301.7D CR

Technical specs - 301.7D CR Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.69 t
Transport length
3.584 m
Transport width
0.99 m
Transport height
2.29 m
Bucket capacity min.
0.6 m³
Bucket capacity max.
3.11 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.84 m
Dredging depth
2.32 m
Tear-out force
14.2 kN
Model series
CR
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.2 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 301.7D CR FAQ

When was the Caterpillar 301.7D CR manufactured?

The Caterpillar 301.7D CR was manufactured from 2013 to 2019.

How much does the Caterpillar 301.7D CR weigh?

The Caterpillar 301.7D CR weighs 1.69 tons.

What are the transport dimensions of the Caterpillar 301.7D CR mini excavator?

The Caterpillar 301.7D CR has a transport length of 3.58 meters, a transport width of 0.99 meters, and a transport height of 2.29 meters.

What is the track width of the Caterpillar 301.7D CR mini excavator?

The Caterpillar 301.7D CR mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Caterpillar 301.7D CR mini excavator?

The Caterpillar 301.7D CR mini excavator has a dredging depth of 2.32 meters and a maximum horizontal reach of 3.84 meters.

What is the tear-out force of the Caterpillar 301.7D CR mini excavator?

The Caterpillar 301.7D CR mini excavator has a tear-out force of 14.2 kN.

What are the bucket capacity specifications of the Caterpillar 301.7D CR mini excavator?

The Caterpillar 301.7D CR mini excavator has a bucket capacity ranging from 0.6 to 3.11 cubic meters.

What operator safety and support features does the Caterpillar 301.7D CR have?

The Caterpillar 301.7D CR is equipped with a canopy for driver protection.
