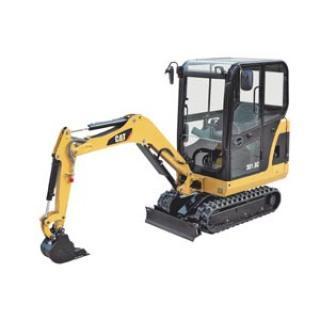

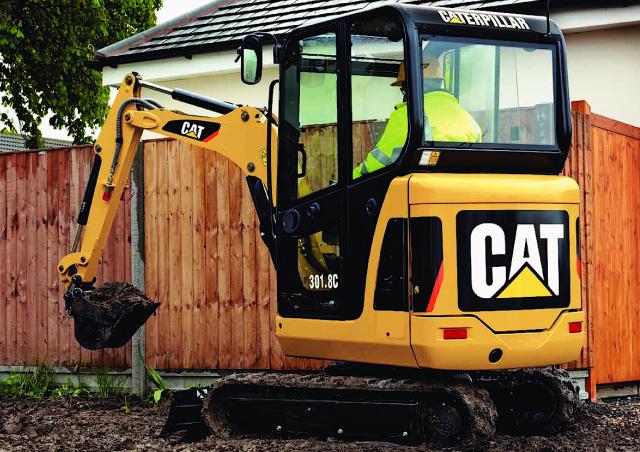

Caterpillar 301.6C excavator specs (2005 - 2011)

9,20/10 Rate this machine now!

The 301.6 C mini excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine... Read more

The 301.6 C mini excavator model is manufactured by Caterpillar. Find and download detailed specs and data sheets for this machine here.

The Caterpillar 301.6 C is a 1.72t machine with Caterpillar engine which powers this model with up to 13.9kW or 18 horse power. The 301.6 C is categorised in the smallest machine segment in the mini excavators category. The 301.6 C’s size is 0.98m x 3.7m x (no data). The bucket capacity of 301.6 C is 0.033m³, which is above average for this type of machine.

The Caterpillar 301.6 C has been equipped and sold with Rubber track. It has been sold without air Aircondition, Track adaption and Quick hitch mech. As of 2011. There are more detailed specifications and machine descriptions available in the original Caterpillar 301.6 C specs data sheet. Available in English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production stopped in 2011, where this 301.6 C was available at a new list price between €30000 and €39000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 13 other mini excavators, which range from 1t up to 5.4t are produced by Caterpillar. Of these, 305.5 E CR, 304 E CR and also 301.7 D are the most frequently visited on LECTURA Specs. Currently, 13 models of the 301.6 C mini excavator exist, at an average sale value of €9800 at 9 years of age. Want more detailed specifications? Download the latest Caterpillar 301.6 C specs data sheet on LECTURA Specs today!

Technical specs - 301.6C Caterpillar


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 1.72 t
  • Transport length 3.7 m
  • Transport width 0.98 m
  • Bucket capacity 0.033 m³
  • Track width 230 mm
  • Driver protection Kb
  • Max. Reach horizontal 3,9 m
  • Dredging depth 2,32 m
  • Tear-out force 10 kN
  • Engine manuf. Caterpillar
  • Engine type L3E
  • Engine power 13.9 kW
  • Displacement 0.952 l
  • Revolutions at max torque 2400 rpm

More technical details, like: average fuel consumption, fuel consumption range (min - max), transport height, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

  • Track adjustment
  • Rubber track
  • Blade
  • Aircondition
  • Quick hitch hydr.
  • Quick hitch mech.
