301.6 Caterpillar excavator specs & dimensions (2019 - 2026)

Caterpillar 301.6 is a Mini Excavator manufactured since 2019. It has a weight of 1.96 tons and a track width of 230 mm. The trans…

Caterpillar 301.6 is a Mini Excavator manufactured since 2019. It has a weight of 1.96 tons and a track width of 230 mm. The transport dimensions are 3.86 m in length, 0.99 m in width, and 2.31 m in height. The machine features a tear-out force of 14.1 kN, a dredging depth of 2.54 m, and a maximum horizontal reach of 3.89 m. The bucket capacity is 0.022 m³. Special equipment includes a blade, rubber track, and track adjustment.

301.6

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 301.6 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.96 t

Transport length: 3.86 m

Transport width: 0.99 m

Transport height: 2.31 m

Bucket capacity: 0.022 m³

Track width: 230 mm

Driver protection: Kb

Max. Reach horizontal: 3.89 m

Dredging depth: 2.54 m

Tear-out force: 14.1 kN

Engine manuf.: Caterpillar

Engine type: C1.1

Engine power: 16.1 kW

Displacement: 1.1 l

Cylinder bore x stroke: 77x81 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: Yes
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 301.6 FAQ

When was the Caterpillar 301.6 manufactured?

The Caterpillar 301.6 was first produced in 2019.

How much does the Caterpillar 301.6 mini excavator weigh?

The Caterpillar 301.6 mini excavator weighs 1.96 tons.

What are the transport dimensions of the Caterpillar 301.6 mini excavator?

The Caterpillar 301.6 mini excavator has a transport length of 3.86 meters, a transport width of 0.99 meters, and a transport height of 2.31 meters.

What is the track width of the Caterpillar 301.6 mini excavator?

The Caterpillar 301.6 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Caterpillar 301.6 mini excavator?

The Caterpillar 301.6 mini excavator has a dredging depth of 2.54 meters and a maximum horizontal reach of 3.89 meters.

What are the power ratings of the Caterpillar 301.6 mini excavator?

There are no power rating specifications available for the Caterpillar 301.6 mini excavator in the provided data.

What is the bucket capacity of the Caterpillar 301.6 mini excavator?

The bucket capacity of the Caterpillar 301.6 mini excavator is 0.022 cubic meters.

What operator safety and support features does the Caterpillar 301.6 have?

The Caterpillar 301.6 has a cabin for driver protection.

How much is a Caterpillar 301.6 Mini excavator (2019u20132025) worth?

The residual value of the Caterpillar 301.6 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 301.6 overview

Engine / Driveline and transmission

OPERATOR ENVIRONMENT
Cab Only ROPS ISO 12117-2:2008 TOPS ISO 12117:1997 Top Guard ISO 10262:1998 (Level, Cab HVAC or Heat Only Next generation standard LCD monitor Automatic engine running automatic engine shutdown Automatic two speed travel power Fuel water separator Power as needed (not available in all regions) Machine safety Standard key with pass variable displacement piston pump Load sensing/flow sharing hydraulic code or push to start with Fob

Hydraulics

HYDRAULICS
Smart Tech Electronic Pump Accumulator Automatic Swing Brake Auxiliary Hydraulic Lines Single and Two Way Relief Flow Continuous Auxiliary Tools Flow Auxiliary Line Quick Disconnects

Tyres / Tracks

ELECTRICAL
Product Linkweld Front Lights LED Front and Rear Lights LED Boom Light Battery
UNDERCARRIAGE
Fixed or extendable undercarriage rubber belt or steel track (230 mm/9 in width) Dozer blade with float tie downs on the track frame.

One-piece boom (1780 mm/70 in) Standard stick (960 mm/37,8 in) or Long Stick (1160 mm/45,7 in) Front shovel Capable (Pin-On/ Manual Coupler/Hydraulikkoppler not available in all regions) Thumb ready (not available in all regions) Certified hooves (not available in all regions

Dimensions and weight

	Lift Point Height		2 m (6.6 ft)	Lift Point Radius (Maximum)
Over Front	Over Side	Over Front	Over Side	m (ft)
Blade Up	Blade Down	Blade Up	Blade Down
2 m	Standard Stick	kg (lb)				290	290	231	2.9
			(641)	(641)	(515)	(9.6)
(6.6 ft)	Long Stick	kg				230	230	209	3.1
(lb)				(508)	(508)	(465)	(10.2)
1.5 m	Standard Stick	kg	384	384	384	266	283	204	3.2
(lb)	(829)	(829)	(829)	(590)	(625)	(451)	(10.3)
(4.9 ft)	Long Stick	kg				227	227	186	3.3
(lb)				(501)	(501)	(412)	(10.9)
1 m	Standard Stick	kg	508	584	380	249	289	190	3.3
(lb),"(1,097)	(1,250)",(822),(551),(637),(420),(10.7)
(3.3 ft)	Long Stick	kg	495	495	383	230	234	174	3.4
(lb),"(1,060)	(1,060)",(827),(507),(514),(385),(11.3)
0 m	Standard Stick	kg	476	705	350	250	343	190	3.2
(lb),"(1,026)	(1,519)",(757),(551),(756),(418),(10.5)
(0 ft)	Long Stick	kg	472	704	346	229	277	173	3.4
(lb),"(1,017)	(1,515)",(747),(505),(611),(380),(11.1)

	Lift Point Height		2 m (6.6 ft)	Lift Point Radius (Maximum)
Over Front	Over Side	Over Front	Over Side	m (ft)
Blade Up	Blade Down	Blade Up	Blade Down
2 m	Standard Stick	kg (lb)				290	290	290	2.9
			(641)	(641)	(641)	(9.6)
(6.6 ft)	Long Stick	kg				230	230	230	3.1
(lb)				(508)	(508)	(508)	(10.2)
1.5 m	Standard Stick	kg	384	384	384	283	283	283	3.2
(lb)	(829)	(829)	(829)	(625)	(625)	(625)	(10.3)
(4.9 ft)	Long Stick	kg				227	227	227	3.3
(lb)				(501)	(501)	(501)	(10.9)
1 m	Standard Stick	kg	552	584	584	273	289	289	3.3
(lb),"(1,191)	(1,250)	(1,250)",(602),(637),(637),(10.7)
(3.3 ft)	Long Stick	kg	495	495	495	234	234	234	3.4
(lb),"(1,060)	(1,060)	(1,060)",(514),(514),(514),(11.3)
0 m	Standard Stick	kg	520	705	588	274	343	309	3.2
(lb),"(1,121)	(1,519)	(1,268)",(604),(756),(682),(10.5)
(0 ft)	Long Stick	kg	516	704	584	252	277	277	3.4
(lb),"(1,112)	(1,515)	(1,259)",(555),(611),(611),(11.1)

Other features

Cab Radio Mirrors Left and Right

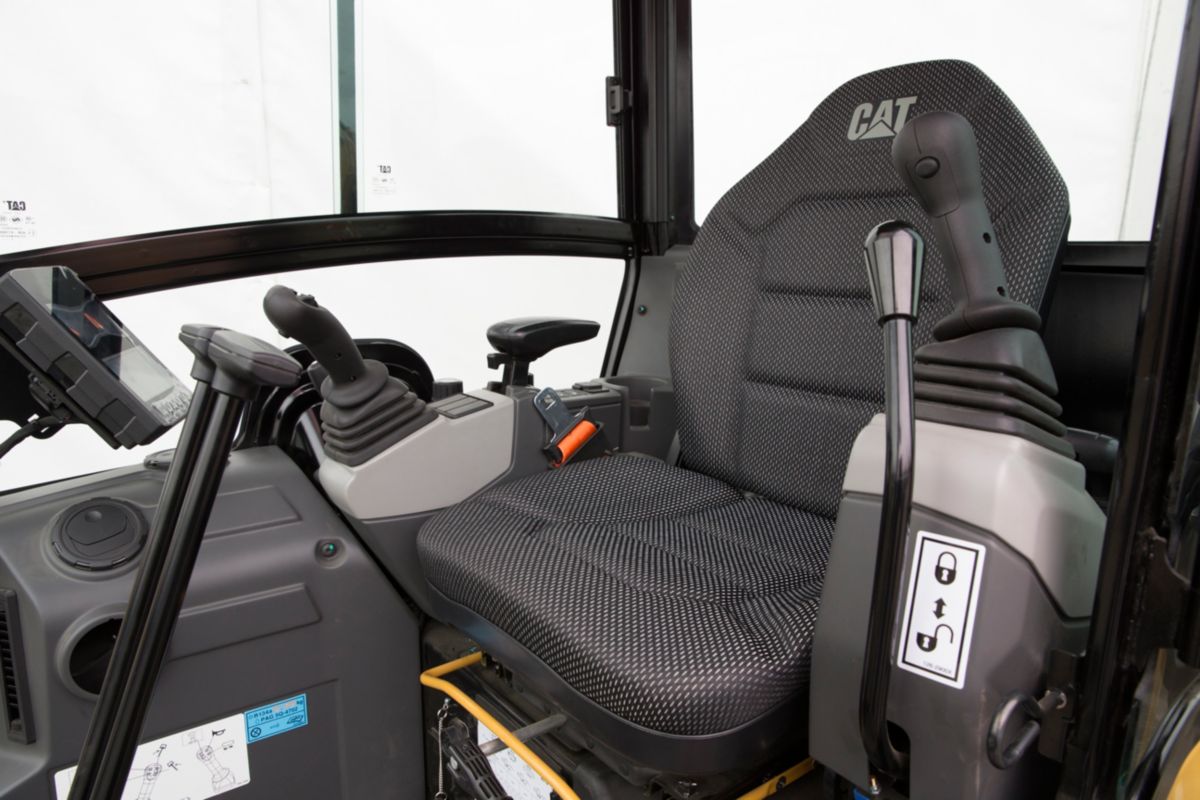

Adjustable wrist rests Fabric or vinyl seat Retractable High Visibility Seat Belt (75 mm/3 in) Coat Hook Cup Holder Cab Interior Light Storage Bag Skylight Washable Floor Mat Travel Pedals and Levers Next Generation Stick Steer Hydraulic Lockout All Controls Machine 2-Point Lifting Tilt-up Cab Bluetooth

Tables

Long Stick	7 kg	15 lb
Steel Tracks	57 kg	126 lb
Expandable Undercarriage	128 kg	282 lb

Engine
Engine Model	C1.1
Rated Net Power @ 2	400 rpm ISO 9249/EEC 80/1269"	14.3 kW	19.2 hp

Gross Power ISO 14396

16.1 kW

21.6 hp

Bore	77.0 mm	3.0 in
Stroke	81.0 mm	3.2 in
Displacement	1.1 L	69.0 in3

Travel System
Travel Speed – High	4.4 km/h	2.7 mph
Travel Speed – Low	2.9 km/h	1.8 mph
Maximum Traction Force – High Speed	10.2 kN	2	293.1 lbf"
Maximum Traction Force – Low Speed	15.9 kN	3	574.5 lbf"
Ground Pressure – Minimum Weight	30.5 kPa	4.4 psi
Ground Pressure – Maximum Weight	34.0 kPa	4.9 psi
Gradeability (maximum)	30 degrees
