301.5 Caterpillar excavator specs & dimensions (2019 - 2026)

Caterpillar 301.5 is a Mini Excavator manufactured since 2019. It has a weight of 1.76 tons and a track width of 230 mm. The trans…

Caterpillar 301.5 is a Mini Excavator manufactured since 2019. It has a weight of 1.76 tons and a track width of 230 mm. The transport dimensions are 3.59 m in length, 0.99 m in width, and 2.31 m in height. The machine features a tear-out force of 14.1 kN, a dredging depth of 2.54 m, and a maximum horizontal reach of 3.89 m. The bucket capacity is 0.022 m³. Special equipment includes a blade, rubber track, and track adjustment.

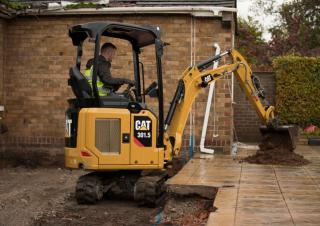

Mini Excavators Caterpillar 301.5
Mini Excavators Caterpillar 301.5
Mini Excavators Caterpillar 301.5
Mini Excavators Caterpillar 301.5
Mini Excavators Caterpillar 301.5
Mini Excavators Caterpillar 301.5

Technical specs - 301.5 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.76 t
Transport length
3.59 m
Transport width
0.99 m
Transport height
2.31 m
Bucket capacity
0.022 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.89 m
Dredging depth
2.54 m
Tear-out force
14.1 kN
Engine manuf.
Caterpillar
Engine type
C1.1
Engine power
16.1 kW
Displacement
1.1 l
Cylinder bore x stroke
77x81 mm

More technical details, like: bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 301.5 FAQ

When was the Caterpillar 301.5 manufactured?

The Caterpillar 301.5 was first produced in 2019.

How much does the Caterpillar 301.5 mini excavator weigh?

The Caterpillar 301.5 mini excavator weighs 1.76 tons.

What are the transport dimensions of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 has a transport length of 3.59 meters, a transport width of 0.99 meters, and a transport height of 2.31 meters.

What is the track width of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 mini excavator has a dredging depth of 2.54 meters and a maximum horizontal reach of 3.89 meters.

What power rating information is available for the Caterpillar 301.5 mini excavator?

The source data does not provide power rating information for the Caterpillar 301.5 mini excavator.

What is the bucket capacity of the Caterpillar 301.5 mini excavator?

The Caterpillar 301.5 mini excavator has a bucket capacity of 0.022 cubic meters.

What operator safety and support features does the Caterpillar 301.5 have?

The Caterpillar 301.5 is equipped with a canopy for driver protection.

How much is a Caterpillar 301.5 Mini excavator (2019u20132025) worth?

The residual value of the Caterpillar 301.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 301.5 overview

Engine / Driveline and transmission

„„Cat C1.1 Engine (U.S. EPA Tier 4 Final/
EU Level, Automatic Engine Idle Automatic Engine Shutdown Automatic Two Speed Travel Fuel Water Separator Power as needed (not available in all regions) Variable variable displacement piston pump Load Sensibility/Flow Sharing Hydraulics

Hydraulics

HYDRAULICS
Smart Tech Electronic Pump Accumulator Automatic Swing Brake Auxiliary Hydraulic Lines Single and Two Way Relief Flow Continuous Auxiliary Tools Flow Auxiliary Line Quick Disconnects

Tyres / Tracks

UNDERCARRIAGE
Fixed or extendable undercarriage rubber belt or steel track (230 mm/9 in width) Dozer blade with float tie downs on the track frame.

One-piece boom (1780 mm/70 in) Standard stick (960 mm/37,8 in) or Long Stick (1160 mm/45,7 in) Front shovel Capable (Pin-On/ Manual Coupler/Hydraulikkoppler not available in all regions) Thumb ready (not available in all regions) Certified hooves (not available in all regions

Dimensions and weight

Lift Point Height2 m (6.6 ft)Lift Point Radius (Maximum)
Over FrontOver SideOver FrontOver Sidem (ft)
Blade UpBlade DownBlade UpBlade Down
2 mStandard Stickkg (lb)2422901822.9
(540)(641)(407)(9.6)
(6.6 ft)Long Stickkg2182301643.1
(lb)(487)(508)(365)(10.2)
1.5 mStandard Stickkg3843843242122831593.2
(lb)(828)(828)(699)(471)(625)(353)(10.3)
(4.9 ft)Long Stickkg1942271443.3
(lb)(429)(501)(319)(10.9)
1 mStandard Stickkg4125843031982891473.3
(lb)(888)(1249)"(655)(437)(637)(325)(10.7)
(3.3 ft)Long Stickkg4154953061812341343.4
(lb)(896)(1059)"(661)(399)(514)(295)(11.3)
0 mStandard Stickkg3797042731973431463.2
(lb)(818)(1518)"(590)(435)(756)(322)(10.5)
(0 ft)Long Stickkg3757032691792771313.4
(lb)(808)(1514)"(581)(395)(611)(290)(11.1)
Lift Point Height2 m (6.6 ft)Lift Point Radius (Maximum)
Over FrontOver SideOver FrontOver Sidem (ft)
Blade UpBlade DownBlade UpBlade Down
2 mStandard Stickkg (lb)2692902902.9
(601)(641)(641)(9.6)
(6.6 ft)Long Stickkg2302302303.1
(lb)(508)(508)(508)(10.2)
1.5 mStandard Stickkg3843843842372832723.2
(lb)(828)(828)(828)(526)(625)(602)(10.3)
(4.9 ft)Long Stickkg2172272273.3
(lb)(480)(501)(501)(10.9)
1 mStandard Stickkg4565845222222892543.3
(lb),(985),"(1,249)(1,125)",(489),(637),(562),(10.7)
(3.3 ft)Long Stickkg4594954952032342343.4
(lb),(991),"(1,059)(1,059)",(448),(514),(514),(11.3)
0 mStandard Stickkg4247044892223432553.2
(lb),(914),"(1,518)(1,054)",(489),(756),(563),(10.5)
(0 ft)Long Stickkg4197034842022772333.4
(lb),(903),"(1,514)(1,043)",(445),(611),(515),(11.1)

Other features

OPERATOR ENVIRONMENT
Canopy Only ROPS ISO 12117-2:2008 TOPS ISO 12117:1997 Top Guard ISO 10262:1998 (Level, Next Generation Standard LCD Monitor Machine Security Standard Key with Pass Code or Push to Start with Fob Adjustable wrist rests Vinyl seat (with or without suspension) Retractable High Visibility Seat Belt (75 mm/3 in) Coat Hook Cup Holder Storage Pocket Skylight Washable Floor Mat Travel Pedals and Lever's Next Generation Stick Steer Hydraulic Lockout All Controls machine 2-point lift Tilting can
ELECTRICAL
12 volt battery software (machine and monitor) Maintenance-free battery warning Horn 12 volt Power Socket Boom Light, Halogen Pattern Changer

Tables

Long Stick7 kg15 lb
Steel Tracks57 kg126 lb
Expandable Undercarriage129 kg284 lb
Specifications
Engine
Engine ModelC1.1
Rated Net Power @ 2400 rpm ISO 9249/EEC 80/1269"14.3 kW19.2 hp
Gross Power
ISO 1439616.1 kW21.6 hp
Bore77.0 mm3.0 in
Stroke81.0 mm3.2 in
Displacement1.1 L69.0 in3
Travel System
Travel Speed – High4.4 km/h2.7 mph
Travel Speed – Low2.9 km/h1.8 mph
Maximum Traction Force – High Speed10.3 kN2315.5 lbf"
Maximum Traction Force – Low Speed16.0 kN3597.0 lbf"
Ground Pressure – Minimum Weight27.3 kPa4.0 psi
Ground Pressure – Maximum Weight30.6 kPa4.4 psi
Gradeability (maximum)30 degrees
