301.4C Caterpillar excavator specs & dimensions (2011 - 2019)

Model rating: 5,00 / 10

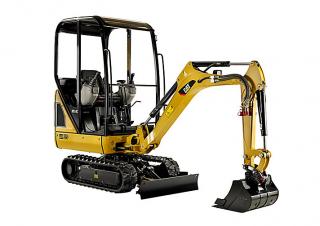

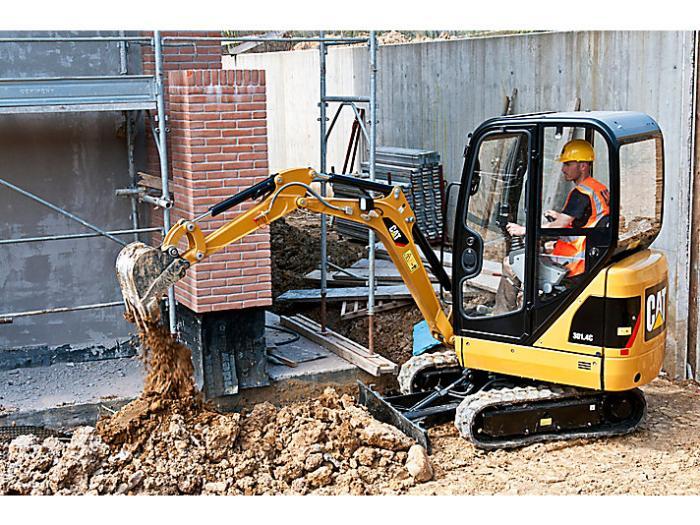

Caterpillar 301.4C is a mini excavator manufactured from 2011 to 2019, with a weight of 1.47 tons. It features a track width of 23…

Caterpillar 301.4C is a mini excavator manufactured from 2011 to 2019, with a weight of 1.47 tons. It features a track width of 230 mm, a transport length of 3.645 meters, a transport width of 0.99 meters, and a transport height of 2.276 meters. The machine is equipped with air conditioning, a blade, and rubber tracks.

301.4C

Years of manufacture: 2011—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 301.4C Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 1.47 t

Transport length: 3.645 m

Transport width: 0.99 m

Transport height: 2.276 m

Track width: 230 mm

Driver protection: Kb

Max. Reach horizontal: 3.65 m

Dredging depth: 2.24 m

Tear-out force: 7.1 kN

Engine manuf.: Yanmar

Engine type: 3TNV76

Engine power: 13.2 kW

Displacement: 1.116 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: Yes
Quick hitch hydr.: No
Quick hitch mech.: No

Download specalog and datasheets (PDF)

Caterpillar 301.4C FAQ

When was the Caterpillar 301.4C manufactured?

The Caterpillar 301.4C was manufactured from 2011 to 2019.

How much does the Caterpillar 301.4C weigh?

The Caterpillar 301.4C weighs 1.47 tons.

What are the transport dimensions of the Caterpillar 301.4C mini excavator?

The Caterpillar 301.4C has a transport length of 3.65 meters, a transport width of 0.99 meters, and a transport height of 2.28 meters.

What is the track width of the Caterpillar 301.4C mini excavator?

The Caterpillar 301.4C mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Caterpillar 301.4C mini excavator?

The Caterpillar 301.4C mini excavator has a dredging depth of 2.24 meters and a maximum horizontal reach of 3.65 meters.

What is the tear-out force of the Caterpillar 301.4C mini excavator?

The Caterpillar 301.4C has a tear-out force of 7.1 kN.

What operator safety features does the Caterpillar 301.4C have?

The Caterpillar 301.4C has a cabin for driver protection.

How much is a Caterpillar 301.4C Mini excavator (2011u20132019) worth?

The residual value of the Caterpillar 301.4C depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Caterpillar 301.4C overview

Engine / Driveline and transmission

Powerful Engine and Load Sensing Hydraulics
The 17th 9 kw (24. 3 hp) engine is matched with a load sensing hydraulic system to ensure excellent digging performance and smooth control.

Hydraulics

Excellent Service Access
Daily checks and regular service points including fuel and hydraulic oil filling can be easily reached via the large steel rear door. The main hydraulic valve and piping are also easy to reach through a removable floor plate and side panels. The machine has durable steel body plates all around, providing good resistance to impact damage helping maintain the appearance and value of the machine.

Tyres / Tracks

Extending Undercarriage and Blade
An extendible undercarriage and fold-in dozer blade allow the machine to be configured for excellent working stability and optimum performance. Blade extensions simply rotate with maintained pins, locking out the potential of lost parts.
High Bucket Breakout Force
The 3, 4c delivers 16 kn (3,597 lbf) bucket force, ideal for handling heavy ground and tough applications.

Dimensions and weight

Easy Transportation
Compact in size and weighing only 1380 kg (3.042 lb) in standard configuration with canopy	the Cat-the 301.4C is easy to transport on a conventional trailer behind a pick-up truck or transit van. Two roof mounted threaded bosses allow fisting of crane haulers making lifting easier.

Other features

Operator Environment
The Cat 301.4C provides the operator with a large comfortable space to work. The ergonomic control layout, travel pedals and adjustable wrist rests have been designed to reduce operator fatigue and increase productivity. Layout is designed for easy cleaning; thus minimizing downtime between operations.
Customer Support
Supported through the Cat dealer and worldwide parts network, the product aims to minimize downtime and maximise customer profi tability.

For more complete information on Cat products, dealer services and industry solutions, visit AEHQ6308-05 (02-2017) Replaces AEHQ6308-04 ≤ 2017 Caterpillar All rights reserved Materials and specifications are subject to change without notice. Machines included in photos may include additional equipment. For available options see your Cat dealer. CAT, CATERPILLAR, SAFETY.CAT.COM, their respective logos, Caterpillar Yellow and Power Edge trade dress as well as corporate and product identity used herein is trademarks of Caterpillar and may not be used without permission.

Tables

Lift Point Radius

2000 mm (78.7 in)

3000 mm (118.1 in)

Maximum

Front

Side

Front

Side

Front

Side

Undercarriage Width

990 mm (39 in)

715*

576*"

335

739

385*

849*

200

441

350*

772*

190

419

1300 mm (51.2 in)

715*

576*"

495

091"

385*

849*

300

661

350*

772*

275

606

Engine Model	Yanmar 3TNV76
Rated Net Power (ISO 9249)	13.2 kW 17.7 hp
Gross Power	17.9 kW 24.3 hp
Displacement	1116 cm3 68.1 in3

		Standard Stick	Long Stick
1	Height	2276 mm	7 ft 6 in	2276 mm	7 ft 6 in
2	Width	730 mm	2 ft 5 in	730 mm	2 ft 5 in
Undercarriage Width – Retracted	990 mm	3 ft 3 in	990 mm	3 ft 3 in
	Undercarriage Width – Extended	1300 mm	4 ft 3 in	1300 mm	4 ft 3 in
3	Maximum Digging Depth	2210 mm	7 ft 2 in	2370 mm	7 ft 7 in
4	Maximum Vertical Digging Depth	1482 mm	4 ft 8 in	1626 mm	5 ft 3 in
5	Maximum Digging Height	3393 mm	11 ft 1 in	3507 mm	11 ft 5 in
6	Maximum Dumping Height	2403 mm	7 ft 9 in	2517 mm	8 ft 3 in
7	Maximum Digging Radius	3700 mm	12 ft 2 in	3850 mm	12 ft 6 in
	Maximum Reach on the Ground	3636 mm	11 ft 9 in	3791 mm	12 ft 4 in
8	Tail Swing Radius	1075 mm	3 ft 6 in	1075 mm	3 ft 6 in
9	Maximum Lift of Dozer Blade Above Ground	211 mm	8.3 in	211 mm	8.3 in
10	Maximum Digging Depth of Dozer Blade Below Ground	264 mm	10.4 in	264 mm	10.4 in
11	Track Length	1460 mm	4 ft 9 in	1460 mm	4 ft 9 in
12	Maximum Swing Angle of Boom System to the Right	49°		49°
13	Maximum Swing Angle of Boom System to the Left	73°		73°
