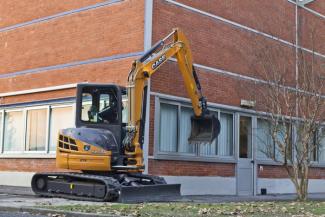

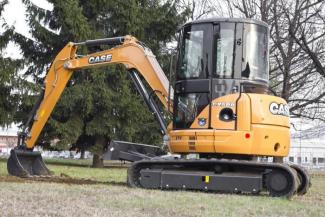

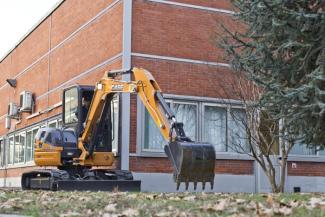

CX50B ZTS Case excavator specs & dimensions (2005 - 2012)

Case CX50B ZTS is a mini excavator manufactured from 2005 to 2012, with a weight of 4.6 t. It features a track width of 400 mm, a …

Case CX50B ZTS is a mini excavator manufactured from 2005 to 2012, with a weight of 4.6 t. It features a track width of 400 mm, a transport length of 5.23 m, a transport width of 1.96 m, and a transport height of 2.6 m. The machine has a tear-out force of 27 kN, a dredging depth of 3.59 m, and a maximum horizontal reach of 5.67 m. The bucket capacity ranges from 0.09 m³ to 0.18 m³. Special equipment includes a blade and rubber tracks.

CX50B ZTS

Years of manufacture: 2005—2012

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - CX50B ZTS Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 4.6 t

Transport length: 5.23 m

Transport width: 1.96 m

Transport height: 2.6 m

Bucket capacity min.: 0.09 m³

Bucket capacity max.: 0.18 m³

Track width: 400 mm

Driver protection: Kb

Max. Reach horizontal: 5.67 m

Dredging depth: 3.59 m

Tear-out force: 27 kN

Model series: B

Engine manuf.: Yanmar

Engine type: 4TNV88A-XYB

Engine power: 32 kW

Displacement: 2.19 l

Revolutions at max torque: 2400 rpm

More technical details, like: bucket capacity, bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment: No
Rubber track: Yes
Blade: Yes
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

Case CX50B ZTS FAQ

When was the Case CX50B ZTS manufactured?

The Case CX50B ZTS was manufactured from 2005 to 2012.

How much does the Case CX50B ZTS weigh?

The Case CX50B ZTS weighs 4.6 tons.

What are the transport dimensions of the Case CX50B ZTS mini excavator?

The Case CX50B ZTS mini excavator has a transport length of 5.23 meters, a transport width of 1.96 meters, and a transport height of 2.6 meters.

What is the track width of the Case CX50B ZTS mini excavator?

The Case CX50B ZTS mini excavator has a track width of 400 mm.

What is the excavation performance of the Case CX50B ZTS mini excavator?

The Case CX50B ZTS mini excavator has a dredging depth of 3.59 meters and a maximum horizontal reach of 5.67 meters.

What is the tear-out force of the Case CX50B ZTS mini excavator?

The Case CX50B ZTS mini excavator has a tear-out force of 27 kN.

What are the bucket capacity specifications of the Case CX50B ZTS mini excavator?

The Case CX50B ZTS mini excavator has a bucket capacity ranging from 0.09 to 0.18 cubic meters.

What operator safety features does the Case CX50B ZTS have?

The Case CX50B ZTS has a cabin for driver protection.
