CX50B Case excavator specs & dimensions (2005 - 2026)

Case CX50B is a mini excavator manufactured since 2005, with a weight of 4.66 tons. It features a track width of 400 mm, a transpo…

Case CX50B is a mini excavator manufactured since 2005, with a weight of 4.66 tons. It features a track width of 400 mm, a transport length of 5.23 meters, a transport width of 1.96 meters, and a transport height of 2.6 meters. The machine has a tear-out force of 35.3 kN, a dredging depth of 3.59 meters, and a maximum horizontal reach of 5.89 meters. The bucket width is 0.91 meters, with a bucket capacity ranging from 0.09 m³ to 0.28 m³.

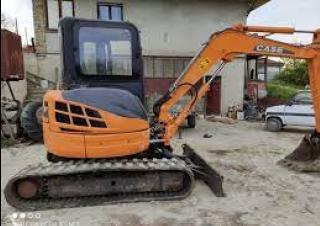

Mini Excavators Case CX50B

Visit Case live at

Technical specs - CX50B Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.66 t
Transport length
5.23 m
Transport width
1.96 m
Transport height
2.6 m
Bucket capacity
0.28 m³
Bucket capacity min.
0.09 m³
Bucket capacity max.
0.28 m³
Bucket width
0.91 m
Track width
400 mm
Max. Reach horizontal
5.89 m
Dredging depth
3.59 m
Tear-out force
35.3 kN
Model series
B
Engine manuf.
Yanmar
Engine type
4TNV88-XYB
Engine power
30.4 kW
Displacement
2.2 l
Revolutions at max torque
1440 rpm
Max. torque
139.3 Nm
No. of cylinders
4
Cylinder bore x stroke
88x90 mm
Emission level
Tier II

More technical details, like: standard tyres, driver protection, dimension lxwxh are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
No
Blade
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX50B FAQ

When was the Case CX50B manufactured?

The Case CX50B was first produced in 2005.

How much does the Case CX50B mini excavator weigh?

The Case CX50B mini excavator weighs 4.66 tons.

What are the transport dimensions of the Case CX50B mini excavator?

The Case CX50B has a transport length of 5.23 meters, a transport width of 1.96 meters, and a transport height of 2.6 meters.

What is the track width of the Case CX50B mini excavator's undercarriage?

The Case CX50B mini excavator has a track width of 400 mm.

What are the excavation performance specifications of the Case CX50B mini excavator?

The Case CX50B mini excavator has a dredging depth of 3.59 meters and a maximum horizontal reach of 5.89 meters.

What is the tear-out force of the Case CX50B mini excavator?

The Case CX50B mini excavator has a tear-out force of 35.3 kN.

What are the bucket specifications of the Case CX50B mini excavator?

The Case CX50B mini excavator has a bucket capacity of 0.28 cubic meters, with a maximum capacity of 0.28 cubic meters, a minimum capacity of 0.09 cubic meters, and a bucket width of 0.91 meters.

How much is a Case CX50B Mini excavator (2005u20132025) worth?

The residual value of the Case CX50B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Case CX50B overview

Engine / Driveline and transmission

ENGINE
Yanmar 4TNV88-XYB diesel Tier II certified 4 cycle water cooled direct injection One touch decelerator Engine access under rear hood Dry type Air cleaner Glow plug starting aid

Hydraulics

HYDRAULICS
Auxiliary hydraulics (one/bidirectional) and piping to the arm Large hydraulic oil cooler Control pattern selector valve
Width
12 in (305 mm) 18 in (457 mm) 24 in (610 mm) 36 in (914 mm)

Tyres / Tracks

Track drive
Rubber tracks Automatic 2-speed travel Fully hydrostatic drive system Sealed and lubricated track rollers Track tension adjustment (cereal type) Disc type Parking brake (auto release and attachment)

Dimensions and weight

PERFORMANCE SPECS
A. Maximum digging radius Dig radius at ground level Maximum digging depth Dump height Overall reach Bucket rotation Vertical straight wall digging depth Arm digging force Bucket digging force CX50B Page 4 of 6 19 ft 3 in (5.89 18 ft 10 in (5.75 11 ft 9 in (3.59 13 ft 5 in (4.09 18 ft 7 in (5.67 9 ft 3 in (2.81 5.1112 lb (2682 kg) ) 7936 lb (3600 kg)
SAE Heaped Capacity
30 ft3 (0.085 m3) 45 ft3 (0127 m3) 63 ft3 (0178 m3) 98 ft3 (0277 m3)
Weight
314 lb (142 kg) 362 lb (164 kg) 435 lb (197 kg) 525 lb (238 kg) CX50B Page 5 of 6

Tables

PumpsTandem variable displacement axial piston pump
Capacity – Maximum2 x 15.0 gpm (2 x 57.1 L/min)
Auxiliary Flow15.0 gpm
(57.1 L/min)
Load (Lift Point) Height5 ft (1.5 m)7.5 ft (2.3 m)10 ft (3.0 m)12.5 ft (3.8 m)15.0 ft (4.6 m)
ENDSIDEENDSIDEENDSIDEENDSIDEENDSIDE
+12.5 ft,,,,,,,"1,930 lb1,690 lb",,
(3.8 m)870 kg760 kg
+10 ft,,,,,,,"2,050 lb1,660 lb2,120 lb1,180 lb"
(3.0 m)930 kg750 kg960 kg530 kg
+7.5 ft,,,,,"2,720 lb2,340 lb2,410 lb1,600 lb2,250 lb1,150 lb"
(2.3 m)1230 kg1060 kg1090 kg720 kg1020 kg520 kg
+5 ft,,,"6,180 lb3,400 lb3,750 lb2,160 lb2,900 lb1,510 lb2,490 lb1,100 lb"
(1.52 m)2800 kg1540 kg1700 kg980 kg1310 kg680 kg1130 kg500 kg
+2.5 ft,,,"4,940 lb3,110 lb4,640 lb2,010 lb3,360 lb1,430 lb2,730 lb1,060 lb"
(0.8 m)2240 kg1410 kg2100 kg910 kg1520 kg640 kg1240 kg480 kg
Ground,"3,330 lb3,330 lb5,840 lb3,050 lb5,100 lb1,930 lb3,670 lb1,370 lb2,880 lb1,030 lb"
Level1510 kg1510 kg2650 kg1380 kg2310 kg870 kg1660 kg620 kg1300 kg460 kg
-2.5 ft,"5,220 lb5,220 lb7,800 lb3,050 lb5,130 lb1,900 lb3,720 lb1,350 lb2,840 lb1,020 lb"
(-0.8 m)2370 kg2370 kg3530 kg1380 kg2320 kg860 kg1690 kg610 kg1290 kg460 kg
-5 ft,"7,310 lb6,980 lb6,950 lb3,100 lb4,720 lb1,920 lb3,420 lb1,360 lb",,
(-1.52 m)3310 kg3160 kg3150 kg1410 kg2140 kg870 kg1550 kg610 kg
-7.5 ft,"9,340 lb7,190 lb5,370 lb3,210 lb3,670 lb1,990 lb",,,,
(-2.3 m)4230 kg3260 kg2430 kg1450 kg1660 kg900 kg
Load (Lift Point) Height5 ft (1.5 m)7.5 ft (2.3 m)10 ft (3.0 m)12.5 ft (3.8 m)15.0 ft (4.6 m)
ENDSIDEENDSIDEENDSIDEENDSIDEENDSIDE
+10 ft,,,,,,,,,"2,120 lb1,220 lb"
(3.0 m)960 kg550 kg
+7.5 ft,,,,,,,"2,410 lb1,650 lb2,260 lb1,190 lb"
(2.3 m)1090 kg750 kg1020 kg540 kg
+5 ft,,,"6,180 lb3,510 lb3,750 lb2,240 lb2,900 lb1,560 lb2,490 lb1,150 lb"
(1.52 m)2800 kg1590 kg1700 kg1010 kg1310 kg710 kg1130 kg520 kg
+2.5 ft,,,"4,940 lb3,220 lb4,650 lb2,080 lb3,360 lb1,480 lb2,730 lb1,100 lb"
(0.8 m)2240 kg1460 kg2100 kg940 kg1520 kg670 kg240 kg500 kg
Ground,"3,330 lb3,330 lb5,840 lb3,160 lb5,100 lb2,000 lb3,670 lb1,420 lb2,880 lb1,070 lb"
Level1510 kg1510 kg2650 kg1430 kg2310 kg900 kg1660 kg640 kg1310 kg480 kg
-2.5 ft,"5,220 lb5,220 lb7,800 lb3,170 lb5,130 lb1,970 lb3,720 lb1,400 lb2,850 lb1,060 lb"
(-0.8 m)2370 kg2370 kg3530 kg1430 kg2320 kg890 kg1690 kg630 kg1290 kg480 kg
-5 ft,"7,310 lb7,220 lb6,950 lb3,220 lb4,720 lb1,990 lb3,420 lb1,410 lb",,
(-1.52 m)3310 kg3270 kg3150 kg1460 kg2140 kg900 kg1550 kg640 kg
-7.5 ft,"9,340 lb7,420 lb5,370 lb3,320 lb3,670 lb2,070 lb",,,,
(-2.3 m)4230 kg3360 kg2430 kg1500 kg1660 kg930 kg
Load (Lift Point) Height5 ft (1.5 m)7.5 ft (2.3 m)10 ft (3.0 m)12.5 ft (3.8 m)15.0 ft (4.6 m)
ENDSIDEENDSIDEENDSIDEENDSIDEENDSIDE
+10 ft,,,,,,,,,"2,120 lb1,490 lb"
(3.0 m)960 kg670 kg
+7.5 ft,,,,,,,"2,410 lb1,990 lb2,260 lb1,460 lb"
(2.3 m)1090 kg900 kg1020 kg660 kg
+5 ft,,,"6,180 lb4,210 lb3,750 lb2,700 lb2,900 lb1,900 lb2,490 lb1,420 lb"
(1.52 m)2800 kg1910 kg1700 kg1220 kg1310 kg860 kg1130 kg640 kg
+2.5 ft,,,"4,940 lb3,920 lb4,650 lb2,540 lb3,360 lb1,820 lb2,730 lb1,380 lb"
(0.8 m)2240 m1780 m2100 m1150 m1520 m820 m1240 m620 kg
Ground,"3,330 lb3,330 lb5,840 lb3,860 lb5,100 lb2,460 lb3,670 lb1,770 lb2,880 lb1,340 lb"
Level1510 kg1510 kg2650 kg1750 kg2310 kg1110 kg1660 kg800 kg1310 kg610 kg
-2.5 ft,"5,220 lb5,220 lb7,800 lb3,860 lb5,130 lb2,430 lb3,720 lb1,740 lb2,850 lb1,330 lb"
(-0.8 m)2370 kg2370 kg3530 kg1750 kg2320 kg1100 kg1690 kg790 kg1290 kg600 kg
-5 ft,"7,310 lb7,310 lb6,950 lb3,910 lb4,720 lb2,450 lb3,420 lb1,760 lb",,
(-1.52 m)3310 kg3310 kg3150 kg1770 kg2140 kg1110 kg1550 kg790 kg
-7.5 ft,"9,340 lb8,880 lb5,370 lb4,020 lb3,670 lb2,530 lb",,,,
(-2.3 m)4230 kg4020 kg2430 kg1820 kg1660 kg1140 kg
A. Overall height8 ft 6 in (2.60 m)
B. Overall length17 ft 1 in (5.23 m)
C. Width of upperstructure6 ft 4 in (1.94 m)
D. Track overall length8 ft 1 in (2.48 m)
E. Track overall width w/15.7 in (400 mm) shoes6 ft 5 in (1.96 m)
F. Track shoe width15.7 in (400 mm)
G. Center to center (idler to sprocket)6 ft 6 in (1.97 m)
H. Upperstructure ground clearance2 ft 1 in (635 mm)
J. Minimum ground clearance1 ft 1 in (345 mm)
K. Tail swing radius3 ft 2 in (980 mm)
L. Backfill blade height1 ft 2 in (345 mm)
Working weight10261 lb (4660 kg)"
Ground pressure3.9 psi (27 kPa)
Boom swingLeft 70°/ Right 60°
Tail swing overhang0 ft 0 in (0 m)
