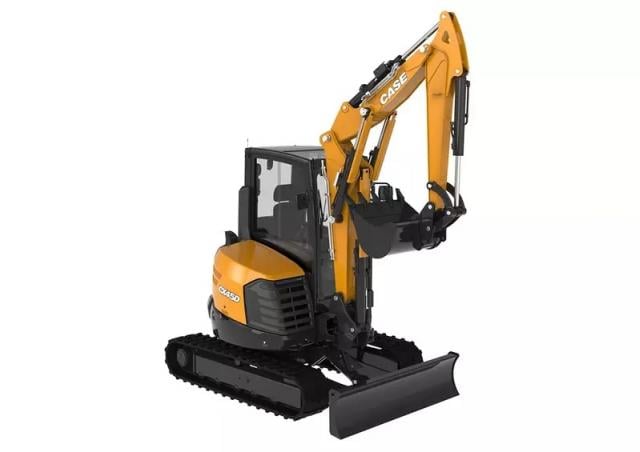

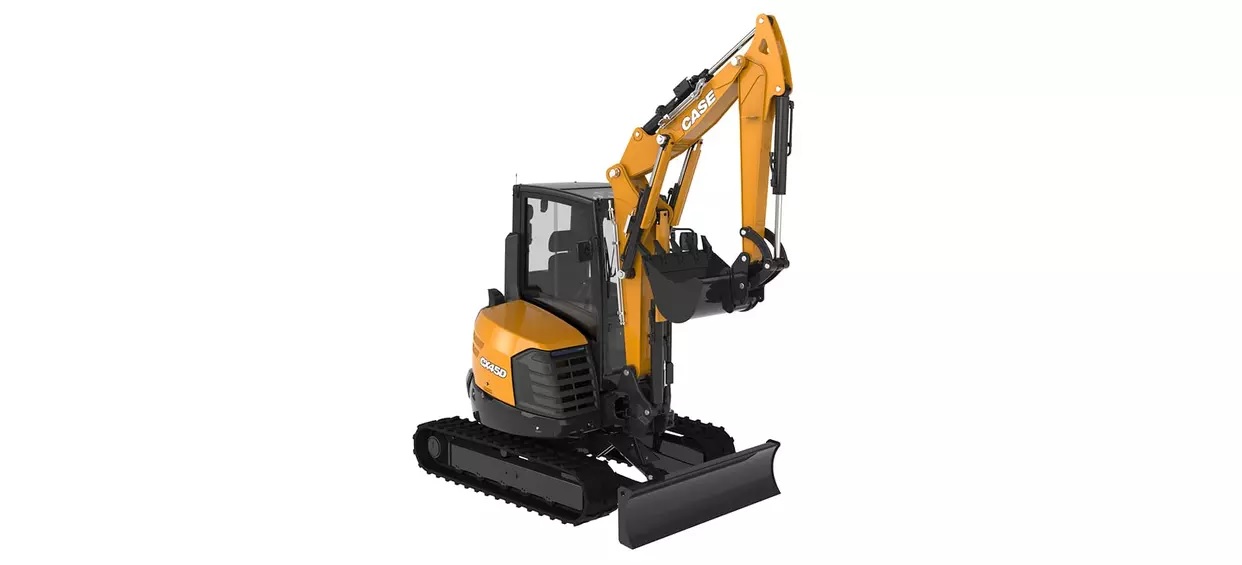

CX45D Case excavator specs & dimensions (2023 - 2026)

Case CX45D is a mini excavator manufactured since 2023, with a weight of 4.7 tons. It features a track width of 350 mm, a transpor…

Case CX45D is a mini excavator manufactured since 2023, with a weight of 4.7 tons. It features a track width of 350 mm, a transport length of 4.98 m, a transport width of 1.75 m, and a transport height of 2.51 m. The machine has a tear-out force of 43 kN, a dredging depth of 3.48 m, and a maximum horizontal reach of 6.21 m. The bucket width is 0.5 m, with a capacity ranging from 0.041 m³ to 0.182 m³, and a standard capacity of 0.049 m³. Special equipment includes air conditioning, a blade, hydraulic and mechanical quick hitches, and rubber tracks.

Mini Excavators Case CX45D

Technical specs - CX45D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.7 t
Transport length
4.98 m
Transport width
1.75 m
Transport height
2.51 m
Bucket capacity
0.049 m³
Bucket capacity min.
0.041 m³
Bucket capacity max.
0.182 m³
Bucket width
0.5 m
Track width
350 mm
Driver protection
Kb
Max. Reach horizontal
6.21 m
Dredging depth
3.48 m
Tear-out force
43 kN
Model series
D
Engine manuf.
Kubota
Engine type
D1803-CR-T
Engine power
32.3 kW
Displacement
1.826 l
Revolutions at max torque
2300 rpm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX45D FAQ

When was the Case CX45D manufactured?

The Case CX45D was first produced in 2023.

How much does the Case CX45D mini excavator weigh?

The Case CX45D mini excavator weighs 4.7 tons.

What are the transport dimensions of the Case CX45D mini excavator?

The Case CX45D mini excavator has a transport length of 4.98 meters, a transport width of 1.75 meters, and a transport height of 2.51 meters.

What is the track width of the Case CX45D mini excavator's undercarriage?

The Case CX45D mini excavator has a track width of 350 mm.

What are the excavation performance specifications of the Case CX45D mini excavator?

The Case CX45D mini excavator has a dredging depth of 3.48 meters and a maximum horizontal reach of 6.21 meters.

What is the tear-out force of the Case CX45D mini excavator?

The Case CX45D mini excavator has a tear-out force of 43 kN.

What are the specifications of the bucket on the Case CX45D mini excavator?

The Case CX45D mini excavator has a bucket with a capacity of 0.049 cubic meters, a maximum capacity of 0.18 cubic meters, a minimum capacity of 0.04 cubic meters, and a width of 0.5 meters.

What operator safety and support features does the Case CX45D have?

The Case CX45D provides operator safety through a protective cabin.
