CX26B ZTS Case excavator specs & dimensions (2011 - 2017)

Model rating
7,67 / 10

Case CX26B ZTS is a mini excavator manufactured from 2011 to 2017. It has a weight of 2.7 tons, a track width of 250 mm, a transpo…

Case CX26B ZTS is a mini excavator manufactured from 2011 to 2017. It has a weight of 2.7 tons, a track width of 250 mm, a transport length of 3.82 meters, a transport width of 1.4 meters, and a transport height of 2.46 meters. The bucket capacity is a minimum of 0.088 cubic meters. Special equipment includes a blade and rubber tracks.

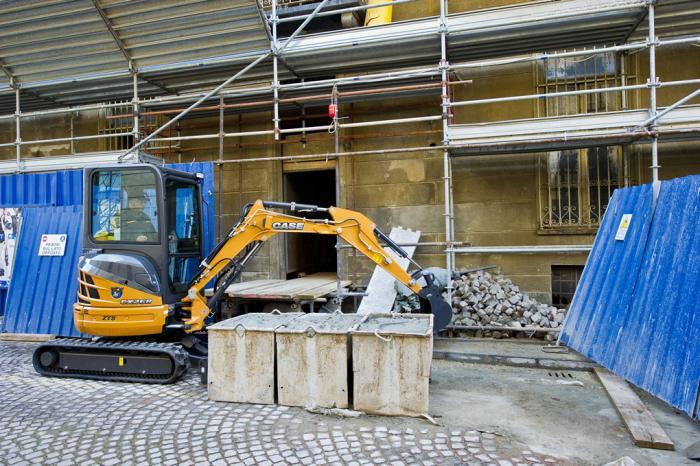

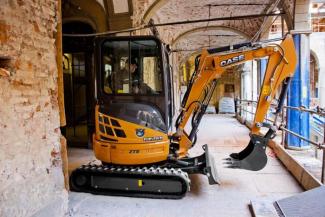

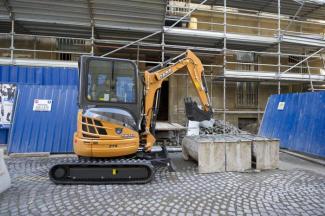

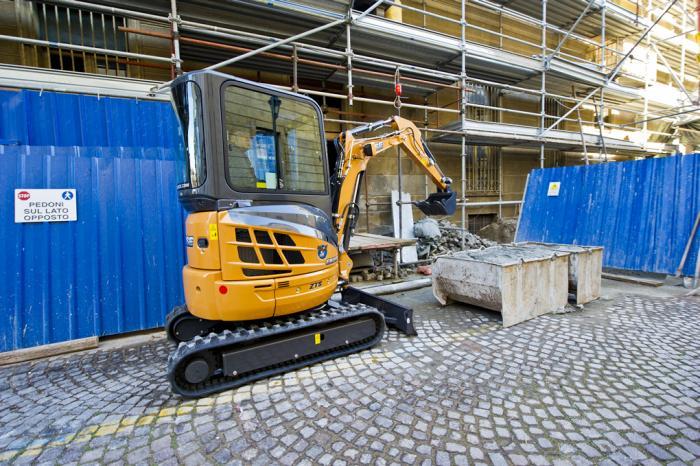

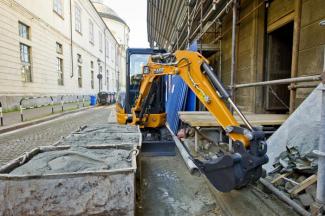

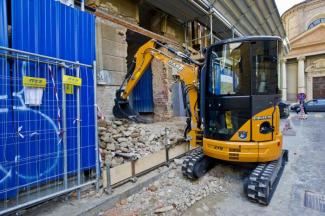

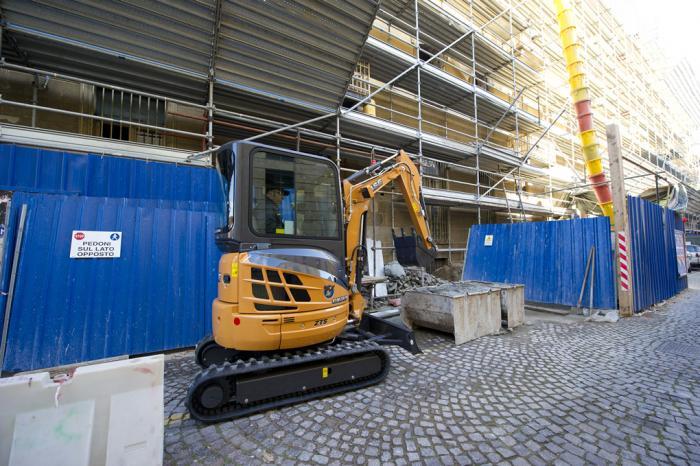

Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS
Mini Excavators Case CX26B ZTS

Technical specs - CX26B ZTS Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.7 t
Transport length
3.82 m
Transport width
1.4 m
Transport height
2.46 m
Bucket capacity min.
0.088 m³
Track width
250 mm
Driver protection
Kb
Max. Reach horizontal
4.52 m
Dredging depth
2.65 m
Tear-out force
19.3 kN
Model series
B
Engine manuf.
Yanmar
Engine type
3TNV82A-SYB
Engine power
17 kW
Displacement
1.33 l
Revolutions at max torque
2200 rpm

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX26B ZTS FAQ

When was the Case CX26B ZTS manufactured?

The Case CX26B ZTS was manufactured from 2011 to 2017.

How much does the Case CX26B ZTS weigh?

The Case CX26B ZTS weighs 2.7 tons.

What are the transport dimensions of the Case CX26B ZTS mini excavator?

The Case CX26B ZTS has a transport length of 3.82 meters, a transport width of 1.4 meters, and a transport height of 2.46 meters.

What is the track width of the Case CX26B ZTS mini excavator?

The Case CX26B ZTS mini excavator has a track width of 250 mm.

What are the excavation performance specifications of the Case CX26B ZTS mini excavator?

The Case CX26B ZTS mini excavator has a dredging depth of 2.65 meters and a maximum horizontal reach of 4.52 meters.

What is the tear-out force of the Case CX26B ZTS mini excavator?

The Case CX26B ZTS mini excavator has a tear-out force of 19.3 kN.

What is the minimum bucket capacity of the Case CX26B ZTS mini excavator?

The minimum bucket capacity of the Case CX26B ZTS mini excavator is 0.09 cubic meters.

What operator safety features does the Case CX26B ZTS have?

The Case CX26B ZTS has a cabin for driver protection.

How much is a Case CX26B ZTS Mini excavator (2011u20132017) worth?

The residual value of the Case CX26B ZTS depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
