CX22D Case excavator specs & dimensions (2023 - 2026)

Case CX22D is a mini excavator manufactured since 2023, with a weight of 2.2 tons. It features a track width of 230 mm, a transpor…

Case CX22D is a mini excavator manufactured since 2023, with a weight of 2.2 tons. It features a track width of 230 mm, a transport length of 3.743 meters, a transport width of 0.99 meters, and a transport height of 2.395 meters. The machine has a tear-out force of 16 kN, a dredging depth of 2.76 meters, and a maximum horizontal reach of 4.57 meters. The bucket width is 0.5 meters, with a capacity ranging from 0.033 m³ to 0.117 m³, and a standard capacity of 0.049 m³. Special equipment includes air conditioning, a blade, hydraulic and mechanical quick hitches, rubber tracks, and track adjustment.

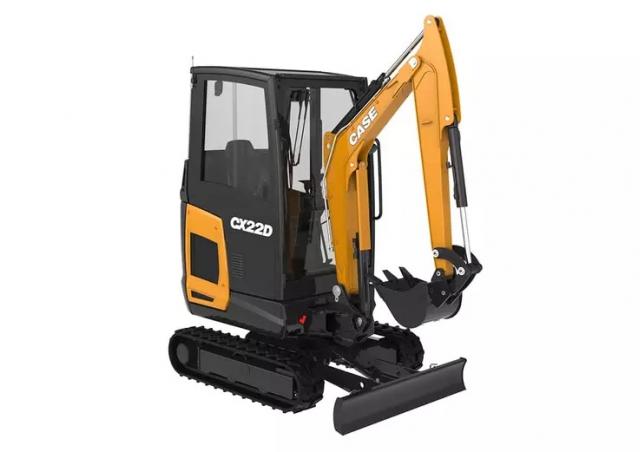

Mini Excavators Case CX22D

Technical specs - CX22D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.2 t
Transport length
3.743 m
Transport width
0.99 m
Transport height
2.395 m
Bucket capacity
0.049 m³
Bucket capacity min.
0.033 m³
Bucket capacity max.
0.117 m³
Bucket width
0.5 m
Track width
230 mm
Max. Reach horizontal
4.57 m
Dredging depth
2.76 m
Tear-out force
16 kN
Model series
D
Engine manuf.
Kubota
Engine type
D1105
Engine power
15.4 kW
Displacement
1.123 l
Revolutions at max torque
2400 rpm
Max. torque
71,4/1600 Nm
No. of cylinders
3
Emission level
Euro V / US IV

More technical details, like: standard tyres, driver protection, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX22D FAQ

When was the Case CX22D manufactured?

The Case CX22D was first produced in 2023.

How much does the Case CX22D mini excavator weigh?

The Case CX22D mini excavator weighs 2.2 tons.

What are the transport dimensions of the Case CX22D mini excavator?

The Case CX22D has transport dimensions of 3.74 meters in length, 0.99 meters in width, and 2.4 meters in height.

What is the track width of the Case CX22D mini excavator?

The Case CX22D mini excavator has a track width of 230 mm.

What are the excavation specifications of the Case CX22D mini excavator?

The Case CX22D mini excavator has a dredging depth of 2.76 meters and a maximum horizontal reach of 4.57 meters.

What is the tear-out force of the Case CX22D mini excavator?

The Case CX22D mini excavator has a tear-out force of 16 kN.

What are the bucket specifications of the Case CX22D mini excavator?

The Case CX22D has a bucket capacity of 0.049 mu00b3, with a maximum capacity of 0.12 mu00b3 and a minimum capacity of 0.03 mu00b3, and a bucket width of 0.5 meters.
