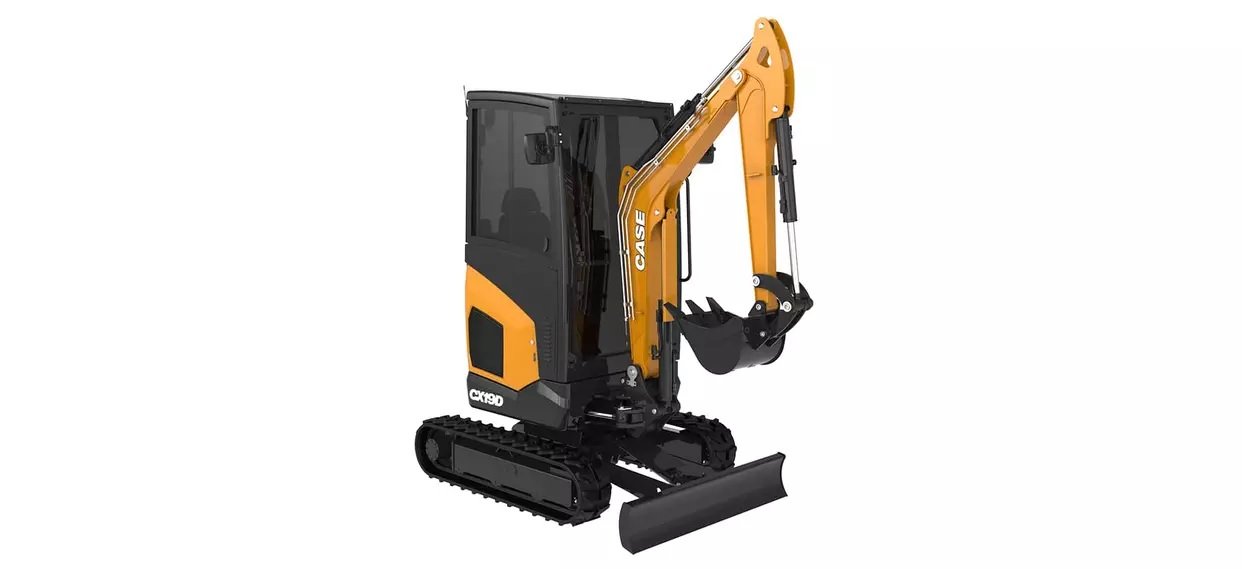

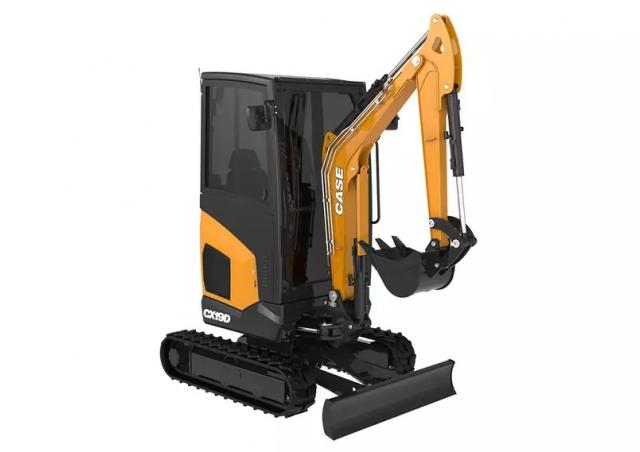

CX19D Case excavator specs & dimensions (2022 - 2026)

Case CX19D is a Mini Excavator manufactured since 2022. It has a weight of 1.9 tons and a track width of 230 mm. The transport dim…

Case CX19D is a Mini Excavator manufactured since 2022. It has a weight of 1.9 tons and a track width of 230 mm. The transport dimensions are 3.5 meters in length, 0.99 meters in width, and 2.37 meters in height. The machine features a tear-out force of 15 kN, a dredging depth of 2.48 meters, and a maximum horizontal reach of 4.21 meters. The bucket width is 0.3 meters with a capacity ranging from 0.015 m³ to 0.096 m³, and a standard capacity of 0.021 m³. Special equipment includes a blade, hydraulic quick hitch, mechanical quick hitch, rubber track, and track adjustment.

Mini Excavators Case CX19D

Technical specs - CX19D Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.9 t
Transport length
3.5 m
Transport width
0.99 m
Transport height
2.37 m
Bucket capacity
0.021 m³
Bucket capacity min.
0.015 m³
Bucket capacity max.
0.096 m³
Bucket width
0.3 m
Track width
230 mm
Max. Reach horizontal
4.21 m
Dredging depth
2.48 m
Tear-out force
15 kN
Model series
D
Engine manuf.
Yanmar
Engine type
3TNV76
Engine power
13.7 kW
Displacement
1.116 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
V

More technical details, like: standard tyres, driver protection, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Case CX19D FAQ

When was the Case CX19D manufactured?

The Case CX19D was first produced in 2022.

How much does the Case CX19D mini excavator weigh?

The Case CX19D mini excavator weighs 1.9 tons.

What are the transport dimensions of the Case CX19D mini excavator?

The Case CX19D mini excavator has a transport length of 3.5 meters, a transport width of 0.99 meters, and a transport height of 2.37 meters.

What is the track width of the Case CX19D mini excavator?

The Case CX19D mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Case CX19D mini excavator?

The Case CX19D mini excavator has a dredging depth of 2.48 meters and a maximum horizontal reach of 4.21 meters.

What is the tear-out force of the Case CX19D mini excavator?

The Case CX19D mini excavator has a tear-out force of 15 kN.

What are the bucket specifications of the Case CX19D mini excavator?

The Case CX19D has a bucket capacity of 0.021 mu00b3, with a maximum capacity of 0.1 mu00b3 and a minimum capacity of 0.02 mu00b3, and a bucket width of 0.3 meters.
