CX19C Case excavator specs & dimensions (2020 - 2026)

Case CX19C is a mini excavator manufactured since 2020. It has a weight of 1.72 tons and a track width of 230 mm. The transport di…

Case CX19C is a mini excavator manufactured since 2020. It has a weight of 1.72 tons and a track width of 230 mm. The transport dimensions are 3.84 meters in length, 1.3 meters in width, and 2.3 meters in height. The machine features a tear-out force of 15.1 kN and a dredging depth of 2.25 meters, with a maximum horizontal reach of 3.88 meters. The bucket capacity is a minimum of 0.042 cubic meters. Special equipment includes a blade, quick hitch hydraulic, rubber track, and track adjustment.

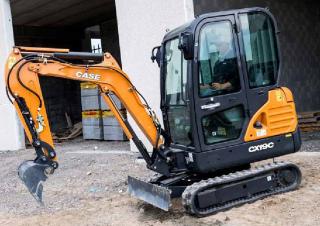

Mini Excavators Case CX19C

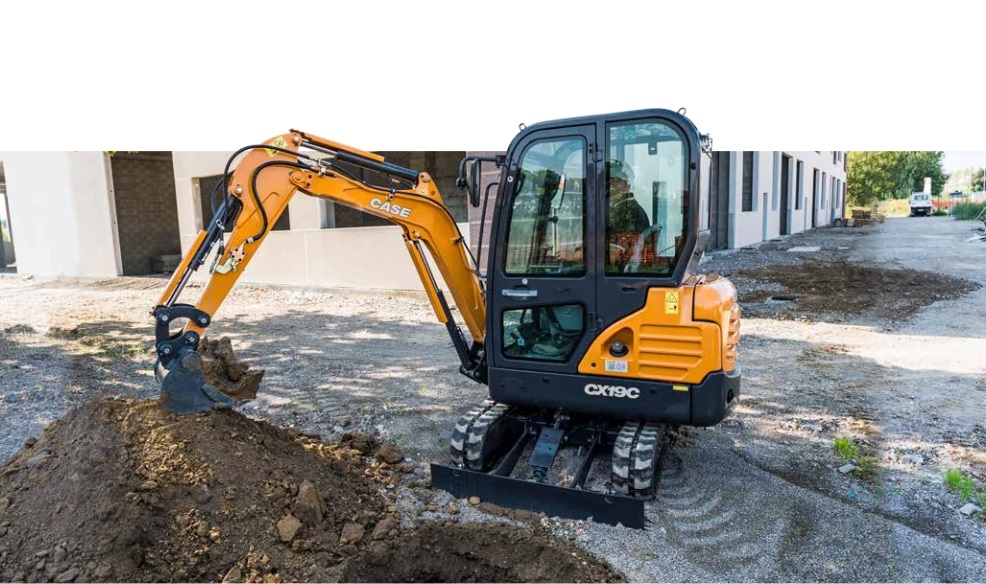

Mini Excavators Case CX19C

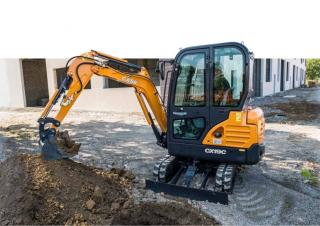

Mini Excavators Case CX19C

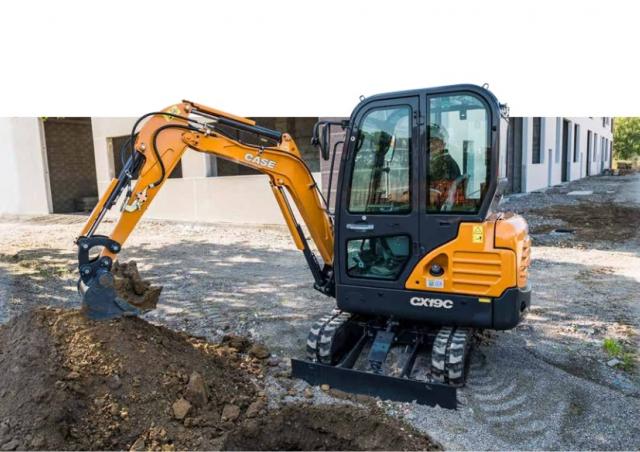

Mini Excavators Case CX19C

Technical specs - CX19C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.72 t
Transport length
3.84 m
Transport width
1.3 m
Transport height
2.3 m
Bucket capacity min.
0.042 m³
Track width
230 mm
Driver protection
Kb
Max. Reach horizontal
3.88 m
Dredging depth
2.25 m
Tear-out force
15.1 kN
Engine manuf.
Kubota
Engine type
D902
Engine power
12.5 kW
Displacement
0.898 l
Revolutions at max torque
1900 rpm
Max. torque
54 Nm
Cylinder bore x stroke
72x74 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX19C FAQ

When was the Case CX19C manufactured?

The Case CX19C was first produced in 2020.

How much does the Case CX19C weigh?

The Case CX19C weighs 1.72 tons.

What are the transport dimensions of the Case CX19C mini excavator?

The Case CX19C mini excavator has a transport length of 3.84 meters, a transport width of 1.3 meters, and a transport height of 2.3 meters.

What is the track width of the Case CX19C mini excavator's undercarriage?

The Case CX19C mini excavator has a track width of 230 mm.

What are the dredging depth and maximum horizontal reach of the Case CX19C mini excavator?

The Case CX19C mini excavator has a dredging depth of 2.25 meters and a maximum horizontal reach of 3.88 meters.

What is the tear-out force of the Case CX19C mini excavator?

The Case CX19C mini excavator has a tear-out force of 15.1 kN.

What is the minimum bucket capacity of the Case CX19C mini excavator?

The minimum bucket capacity of the Case CX19C mini excavator is 0.04 cubic meters.

What operator safety and support features does the Case CX19C have?

The Case CX19C provides operator safety with a protective cabin.
