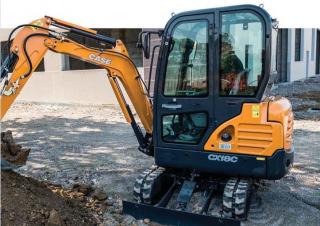

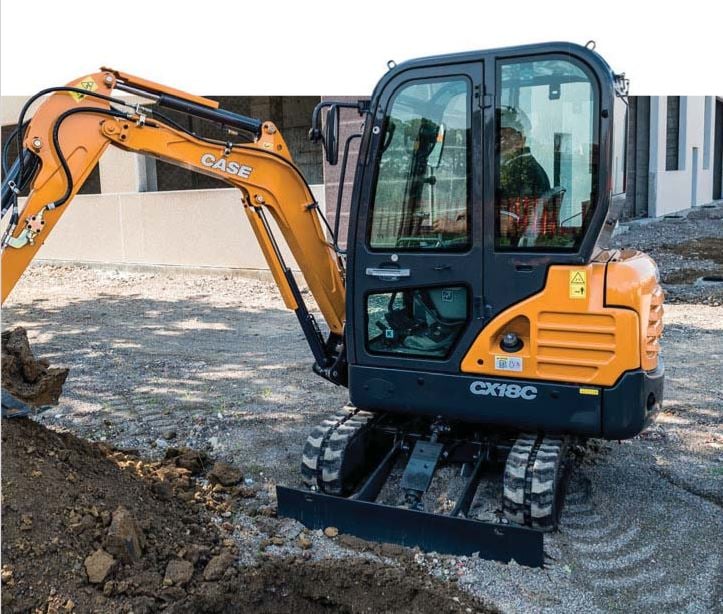

CX18C Case excavator specs & dimensions (2017 - 2020)

DESIGNED TO SAVE YOUR TIME

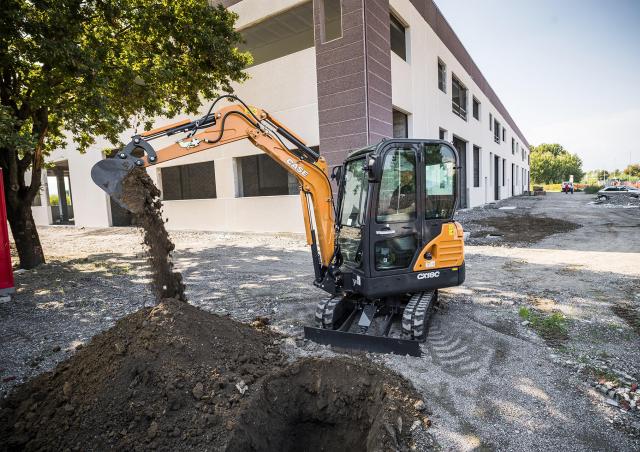

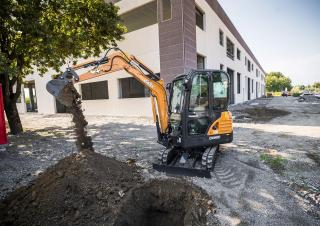

Agility is the name of the game, reaching the job site: easy with variable undercarriage width. Quick folding of blade extensions. Digging: superior hydraulic flow delivers unparalled digging efficiency. (+ 5% vs B-Series). - Excellent boom swing angle (CX17C left/direction: 70/54; CX18C left/right: 60/60) contribute to high versatility. - Selection of short and long arms available for customer needs: high breakout force or outstanding dig depth and reach. Loading: superior dump height together with ample bucket roll angle gives efficient truck loading and maximum material retention. Dozing: blade height (250 mm) and leaf maximum lift height (285 mm) are best suited to CX17C. Raise: CX18C is a conventional model with excellent lifting capacity. CX17C can be equipped with an additional bolt counter weight that further increases stability and lifting capacity. Travel: features the automatic displacement function which optimizes travel speed and traction.
SAFETY FIRST
C-Series Minis: no compromise on safety, TOPS / FOPS: CX17C and CX18C meet the Tip Over and Falling Objects -Protective Structure requirements. Emergency Stop Switch: CX17C has a switch as standard that immediately stops the engine in case of an emergency. Pilot system with accumulator: This standard feature allows the operator to safely deposit the attachment even when motor is switched off for greater safety. Travel alarm: An audible alarm warns people near the machine when it moves forward or reverse. Optional this function is available on any model. 2-Stift canopy: A good view is essential to be able to work safely. CX17C Canopy and CX18C Canopy have a unique 2-Stock design providing unobstructed front and side views. Double flange rollers: derailing can be dangerous for the operator and those who are close to the machine. CASECE C-Series minis feature double fl ow castors which shows impeccable front and rearward checks.

MODERN AND FUNCTIONAL CLUSTER
Easy-to-read digital cluster The digital cluster is easy to read, gives the operator station a modern look and provides useful information: gauges: fuel level, engine coolant temperature, info and warning lamps: hydraulic QC lamp, travel speed, engine coolant temperature, engine oil pressure, battery charger, low fuel.

EASY SERVICEABILITY
- Easy access to battery, hydraulic valves and all regular service components - Easy-to-read check points on the left side - Two piece blade hydraulic hose
EASY AND SAFE SERVICEABILITY
Grouped service points under the hood C-Series are designed for maintenance: Rationalized Service Points layout, Convenient check points on the left side of the excavator, Easy to remove side panels for full maintenance and repair access, Two piece blade hydraulic hoses (CX17C), Extended component life: bushings: 250h, Hydraulic filters: 1000 h, Hydraulic oil: 2000h

- X-frame undercarriage - Cylinder guards - Low risk of derailing with double fl anted rollers
EASY TO TRANSPORT
- Linkage hook - Less than 1.0 meters wide with retracted undercarriage

Ergonomic operator station with suspension seat, CASE CX17C and CX18C feature smooth pilot controls, ergonomically placed joysticks and adjustable wrist rests making it easy and pleasant to operate. Accessibility to the operator compartment is simple; operators can access the CX18C from either side, The suspension seat is standard on both models.
360° VISIBILITY
- 2-piece roof design - Large glazed area on CX18C cab version
SAFETY FIRST
- TOPS / FOPS certified cab and canopy - Emergency stop switch (CX17C) - Pilot circuit with accumulator.

- Proportional auxiliary hydraulic control (CX17C) - Digital cluster - Pendulum seat
HIGH VERSATILITY
- Offering of integrated attachments - Mono or bi-directional hydraulic oil fl ow - Additional counterweight available (CX17C)

Short arm (960 mm) Rubber tracks 230 mm TOPS / FOPS certified Cab / Canopy Emergency stop switch (CX17C) Pilot system with accumulator 2 Speed travel with auto shift-down system (CX17C) 1. Auxiliary 2-way circuit controlled with pedal Foldable boom swing pedal Variable undercarriage with extendible dozer blade Suspension seat with seat belt Standard antitheft setting function Waterproof digital instrument Cluster Centralized greasing in
OPTIONAL EQUIPMENT
Long arm (1120 mm) 1. Auxiliary two-way circuit controlled with joystick (CX17C) Hydraulic quick coupler supply Beacon (CX17C and CX18C cab) Travel alarm Additional counterweight (CX17C) Radio with USB (CX18C cabin)

World class components and a well organized facility, world class components: C-Series minis are designed for reliability, components are purchased from the best suppliers on the market and mounted in CASE's Excavator Hub, a production facility dedicated to World Class Manufacturing. The result is simply highly reliable machines. Booming and arm reinforced mounting needle: The pivot pin that holds boom together and arm is a critical point with each excavator. At CASE C Series, the pin is secured from both sides, minimising the risk of playing between boom and arm. Protected travel engine hoses: Travel motor hoses are well protected within the track frame.Protected cylinders: outrigger, arm, bucket and blade cylinder are well protected with a steel cover.
