CX18B S-2 Case excavator specs & dimensions (2008 - 2017)

Case CX18B S-2 is a mini excavator manufactured from 2008 to 2017. It has a weight of 1.66 tons and a track width of 230 mm. The t…

Case CX18B S-2 is a mini excavator manufactured from 2008 to 2017. It has a weight of 1.66 tons and a track width of 230 mm. The transport dimensions are 3.6 meters in length, 1.33 meters in width, and 2.34 meters in height. The bucket width is 0.4 meters with a minimum bucket capacity of 0.042 cubic meters. Special equipment includes a blade and rubber tracks.

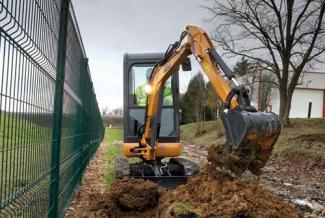

Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2
Mini Excavators Case CX18B S-2

Technical specs - CX18B S-2 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.66 t
Transport length
3.6 m
Transport width
1.33 m
Transport height
2.34 m
Bucket capacity min.
0.042 m³
Bucket width
0.4 m
Track width
230 mm
Driver protection
FD
Dredging depth
2.2 m
Tear-out force
7.8 kN
Model series
B
Engine manuf.
Mitsubishi
Engine type
L 3 E
Engine power
11.2 kW
Displacement
0.952 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity, bucket capacity max., standard tyres, max. reach horizontal, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
No
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX18B S-2 FAQ

When was the Case CX18B S-2 manufactured?

The Case CX18B S-2 was manufactured from 2008 to 2017.

How much does the Case CX18B S-2 weigh?

The Case CX18B S-2 weighs 1.66 tons.

What are the transport dimensions of the Case CX18B S-2 mini excavator?

The Case CX18B S-2 has a transport length of 3.6 meters, a transport width of 1.33 meters, and a transport height of 2.34 meters.

What is the track width of the Case CX18B S-2 mini excavator?

The Case CX18B S-2 mini excavator has a track width of 230 mm.

What is the dredging depth of the Case CX18B S-2 mini excavator?

The Case CX18B S-2 mini excavator has a dredging depth of 2.2 meters.

What is the tear-out force of the Case CX18B S-2 mini excavator?

The Case CX18B S-2 mini excavator has a tear-out force of 7.8 kN.

What are the bucket specifications of the Case CX18B S-2 mini excavator?

The Case CX18B S-2 mini excavator has a minimum bucket capacity of 0.04 cubic meters and a bucket width of 0.4 meters.

What type of driver protection does the Case CX18B S-2 have?

The Case CX18B S-2 has a canopy for driver protection.

How much is a Case CX18B S-2 Mini excavator (2008u20132017) worth?

The residual value of the Case CX18B S-2 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
