CX17C Case excavator specs & dimensions (2019 - 2026)

Case CX17C is a mini excavator manufactured since 2019, with a weight of 1.77 tons. It features a track width of 230 mm and has tr…

Case CX17C is a mini excavator manufactured since 2019, with a weight of 1.77 tons. It features a track width of 230 mm and has transport dimensions of 3.48 m in length, 1.3 m in width, and 2.32 m in height. The machine offers a tear-out force of 15.5 kN, a dredging depth of 2.2 m, and a maximum horizontal reach of 3.8 m. The bucket capacity starts at 0.04 m³. Special equipment includes a blade, quick hitch hydraulic, rubber track, and track adjustment.

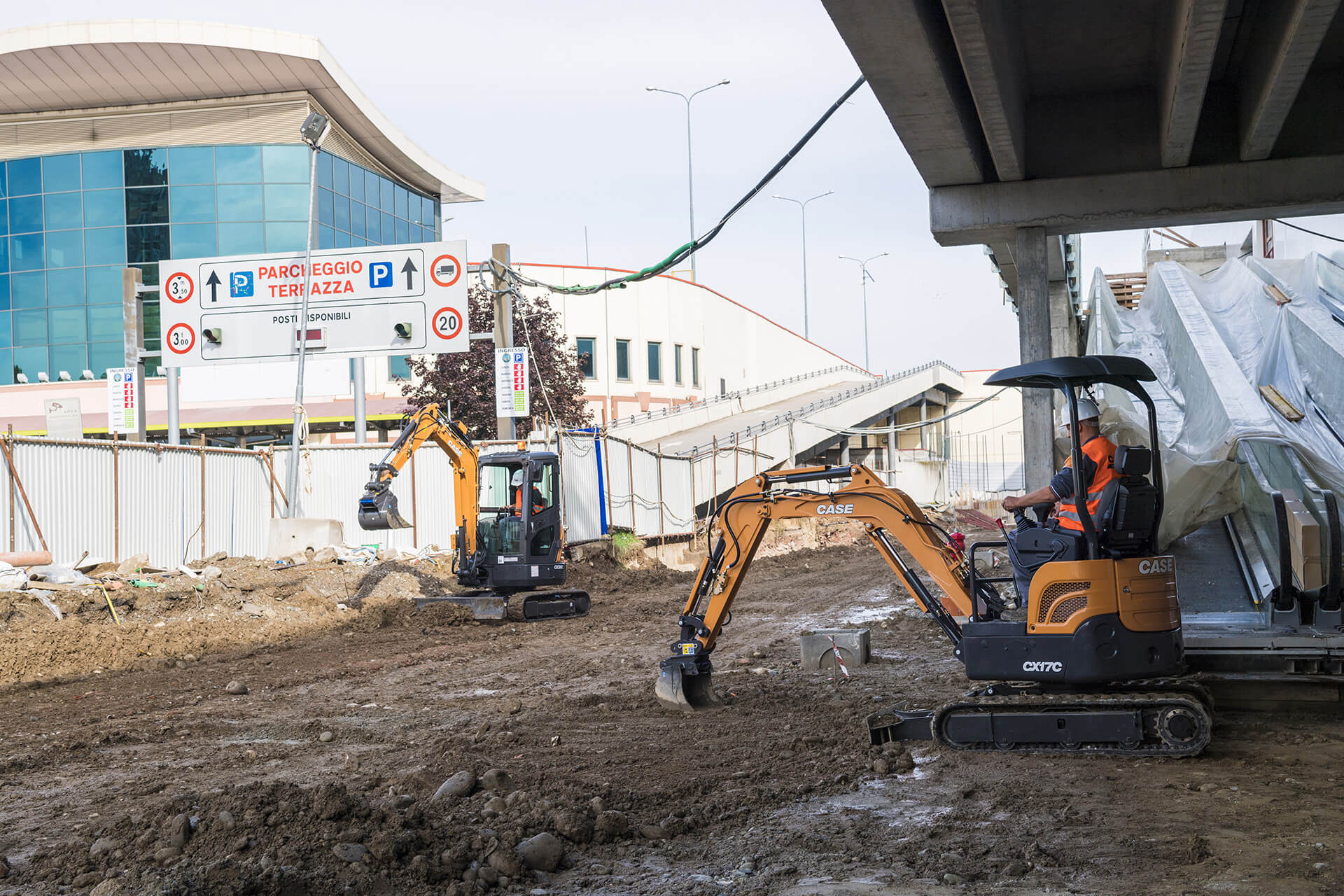

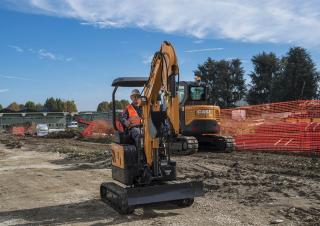

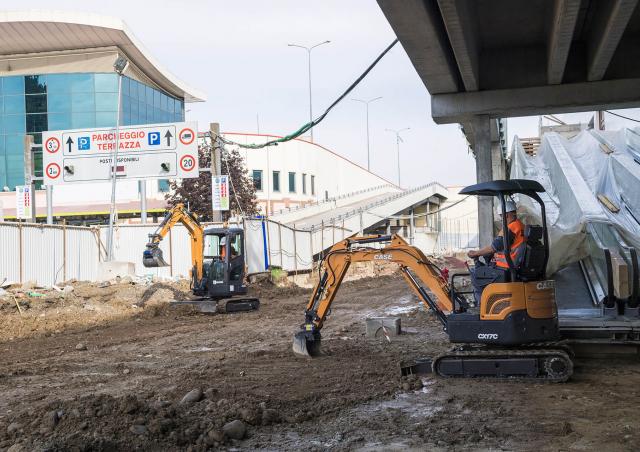

Mini Excavators Case CX17C
Mini Excavators Case CX17C
Mini Excavators Case CX17C
Mini Excavators Case CX17C

Technical specs - CX17C Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.77 t
Transport length
3.48 m
Transport width
1.3 m
Transport height
2.32 m
Bucket capacity min.
0.04 m³
Track width
230 mm
Driver protection
FD
Max. Reach horizontal
3.8 m
Dredging depth
2.2 m
Tear-out force
15.5 kN
Engine manuf.
Kubota
Engine type
D902
Engine power
12.5 kW
Displacement
0.898 l
Revolutions at max torque
1900 rpm
Max. torque
54 Nm
Cylinder bore x stroke
72x74 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity max., bucket width, standard tyres, model series, dimension lxwxh, no. of cylinders are available in the full technical specs.

Basic model with standard bucket

Special equipment

Track adjustment
Yes
Rubber track
Yes
Blade
Yes
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Case CX17C FAQ

When was the Case CX17C manufactured?

The Case CX17C was first produced in 2019.

How much does the Case CX17C mini excavator weigh?

The Case CX17C mini excavator weighs 1.77 tons.

What are the transport dimensions of the Case CX17C mini excavator?

The Case CX17C has a transport length of 3.48 meters, a transport width of 1.3 meters, and a transport height of 2.32 meters.

What are the undercarriage specifications of the Case CX17C mini excavator?

The Case CX17C mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Case CX17C mini excavator?

The Case CX17C mini excavator has a dredging depth of 2.2 meters and a maximum horizontal reach of 3.8 meters.

What is the tear-out force of the Case CX17C mini excavator?

The Case CX17C mini excavator has a tear-out force of 15.5 kN.

What is the minimum bucket capacity of the Case CX17C mini excavator?

The minimum bucket capacity of the Case CX17C mini excavator is 0.04 cubic meters.

What operator safety and support features does the Case CX17C offer?

The Case CX17C provides operator protection with a canopy.
